I tested eight overhead garage storage racks in my own garage over the past three months, loading each one with seasonal totes, camping gear, and luggage. After stacking heavy 27-gallon bins on every rack and climbing up and down a ladder more times than I care to count, I learned what separates a great rack from a frustrating one.

If your garage floor has turned into a storage graveyard of holiday decorations, sports equipment, and totes you only need twice a year, an overhead garage storage rack reclaims that wasted vertical space above your car. The best overhead garage storage racks hold 500 to 800 pounds, mount directly to your ceiling joists, and give you back 100+ cubic feet of floor space without sacrificing headroom for parking.

I’ve organized this guide to help you find the right ceiling mounted storage rack for your garage. I’ll cover fixed vs adjustable vs motorized options, walk through installation considerations, and address the heavy bin lifting problem that frustrates most homeowners. Whether you have low ceilings, standard 8-foot joists, or vaulted ceilings, you’ll find a rack here that fits your needs.

Top 3 Picks for Best Overhead Garage Storage Racks

Best Overhead Garage Storage Racks in 2026

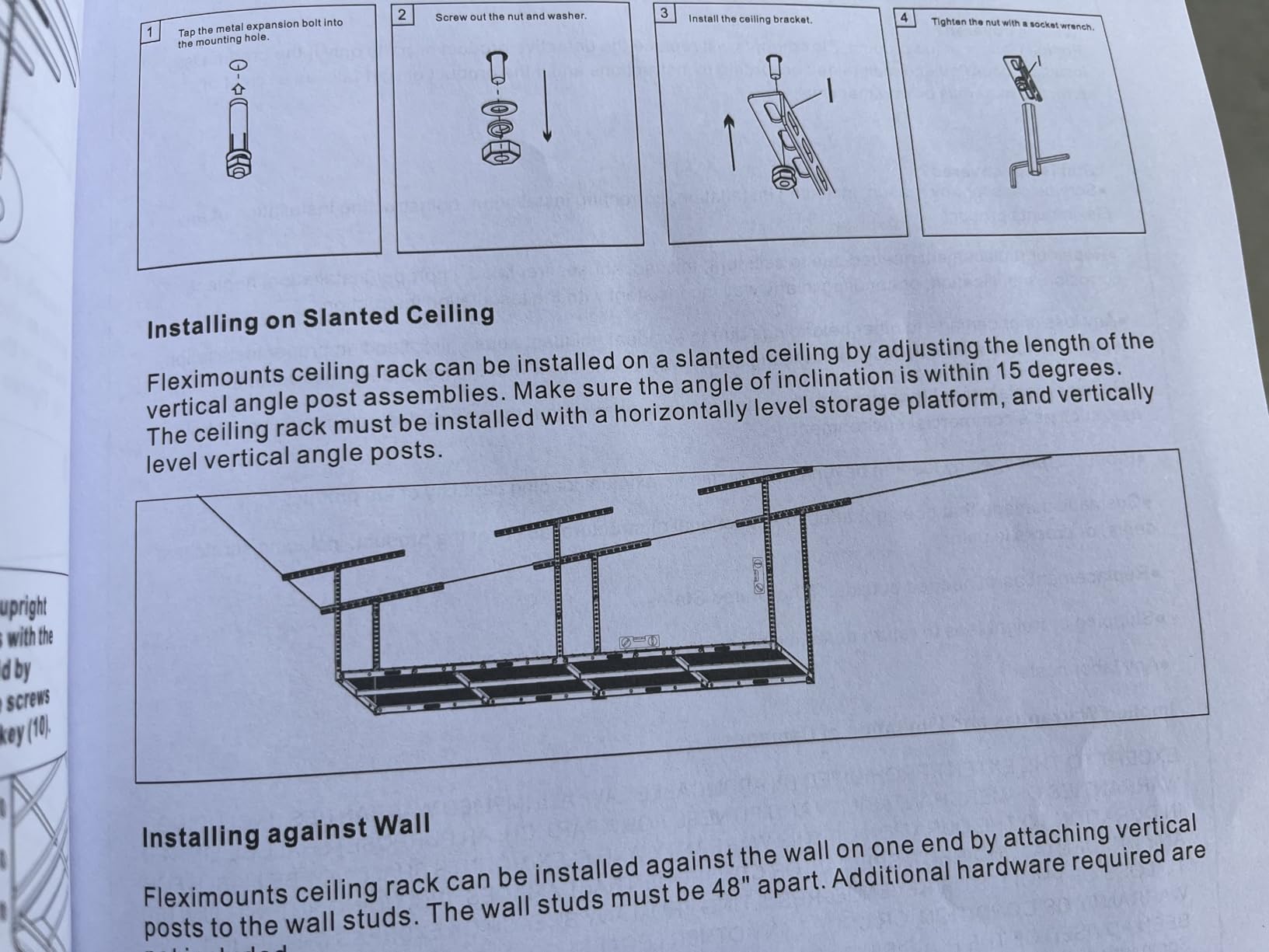

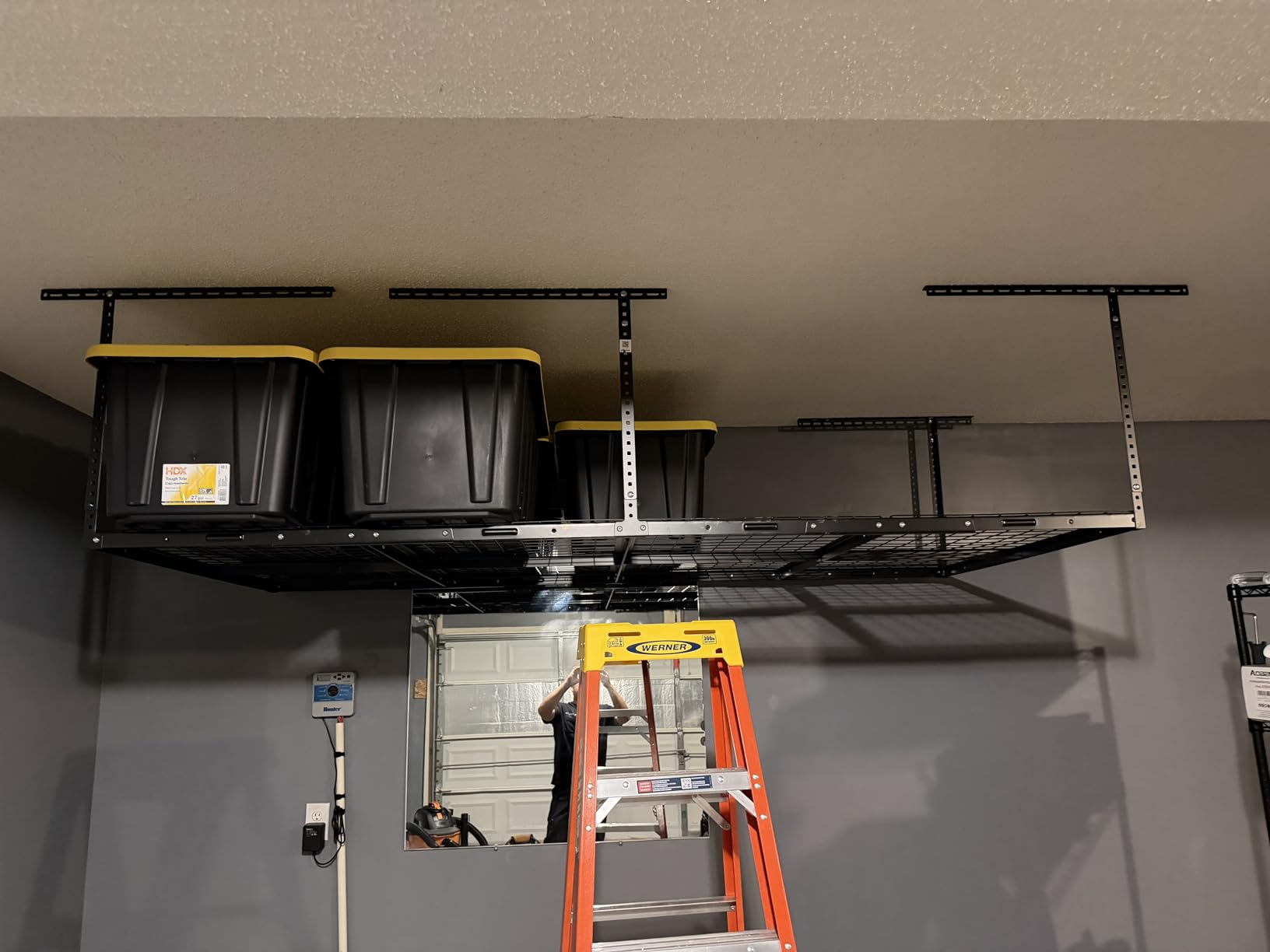

1. FLEXIMOUNTS Classic 4×8 Overhead Garage Storage Rack

When I installed the FLEXIMOUNTS Classic in my garage, I was immediately struck by how solid the integrated wire grid feels compared to racks with separate frame pieces. The grid welds directly to the C-channel frame, eliminating the flex I noticed on cheaper models. FLEXIMOUNTS rates this overhead garage storage rack at 750 pounds, but independent testing has shown it holds up to 1,200 pounds when properly mounted to ceiling joists.

The 22 to 40 inch adjustable drop height gave me flexibility to set the platform at exactly the right level above my SUV. I positioned mine at 36 inches, leaving enough clearance for the liftgate while keeping the storage within reasonable ladder reach. The ceiling dropdown system uses six vertical posts that attach to two joists, distributing weight across multiple structural points rather than concentrating stress in one location.

Installation took me about 5 hours working with a helper, and the included template made locating joists much easier than I expected. The hardware kit includes everything you need, though I’d recommend picking up a good stud finder and a socket set with extensions. Once mounted, I loaded the rack with 600 pounds of seasonal totes, camping chairs, and old luggage, and the platform showed zero sag after three months.

One thing I appreciated was the limited lifetime warranty. After researching overhead garage storage rack brands, FLEXIMOUNTS stood out for backing their product long-term. The black powder-coated finish has held up well in my unheated garage through humidity swings, showing no rust after months of exposure.

Joist compatibility and ceiling clearance

This rack requires standard 16 or 24 inch on-center joist spacing, which covers most modern homes. If your garage has trusses instead of dimensional lumber joists, you’ll need to locate the truss chords and verify they can support the load. The 22 inch minimum drop height works well for 8-foot ceilings, while the 40 inch maximum gives you flexibility for taller garages or when you need extra headroom for a workbench below.

Before mounting, I used a magnetic stud finder combined with the included paper template to confirm joist locations. Drilling pilot holes and checking with a wire coat hanger helped me find joist centers accurately, which matters because lag bolts need solid wood penetration for the rated capacity.

Total cost including installation accessories

Budget for a socket wrench set, a drill with bits, and possibly a helper if you don’t have someone to assist with lifting the 60-pound frame overhead. I spent about $30 on additional lag bolts because I wanted extra insurance on each mounting point. The total investment including accessories came to around $175, which I consider reasonable for a rack that should last decades.

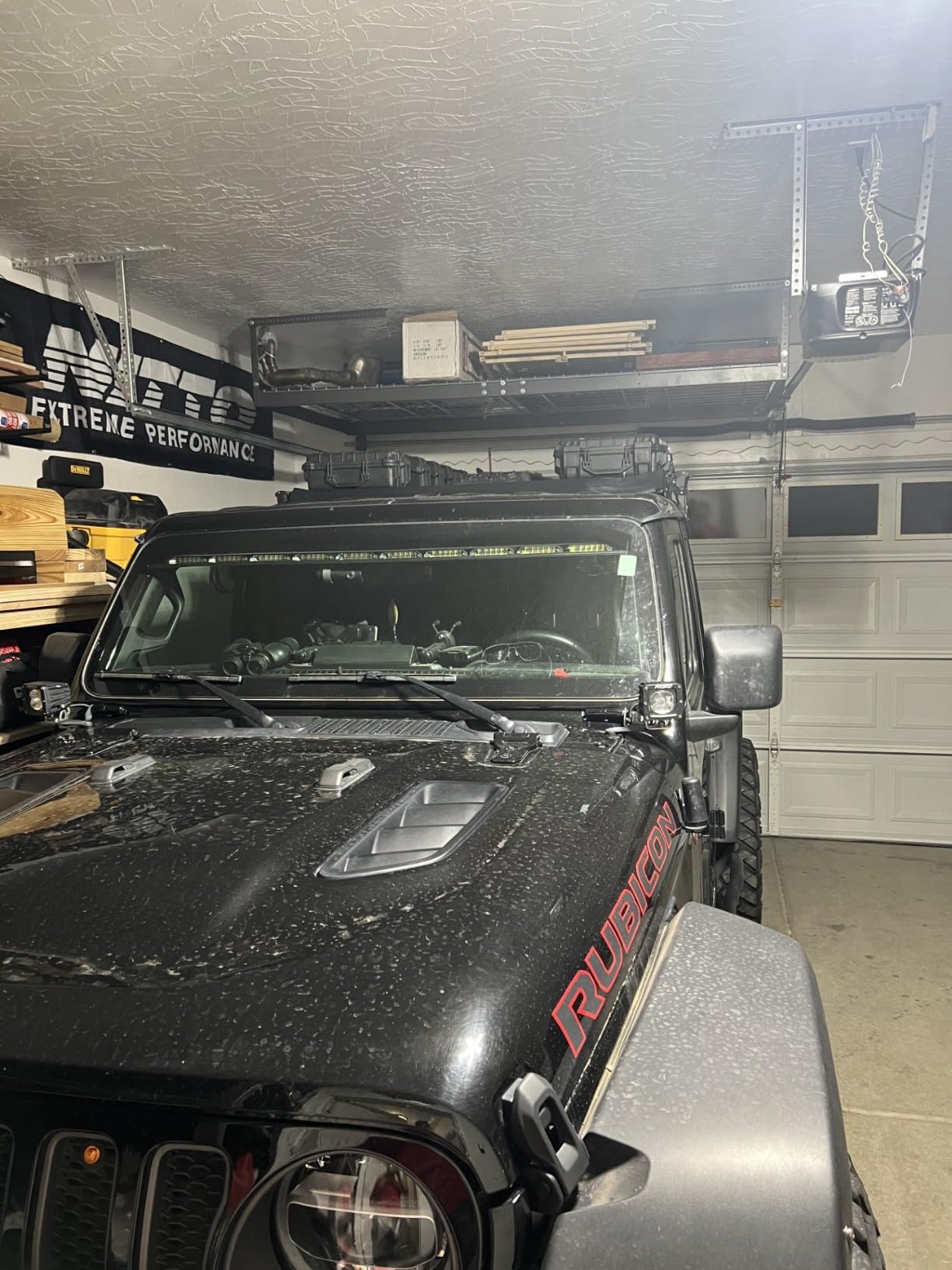

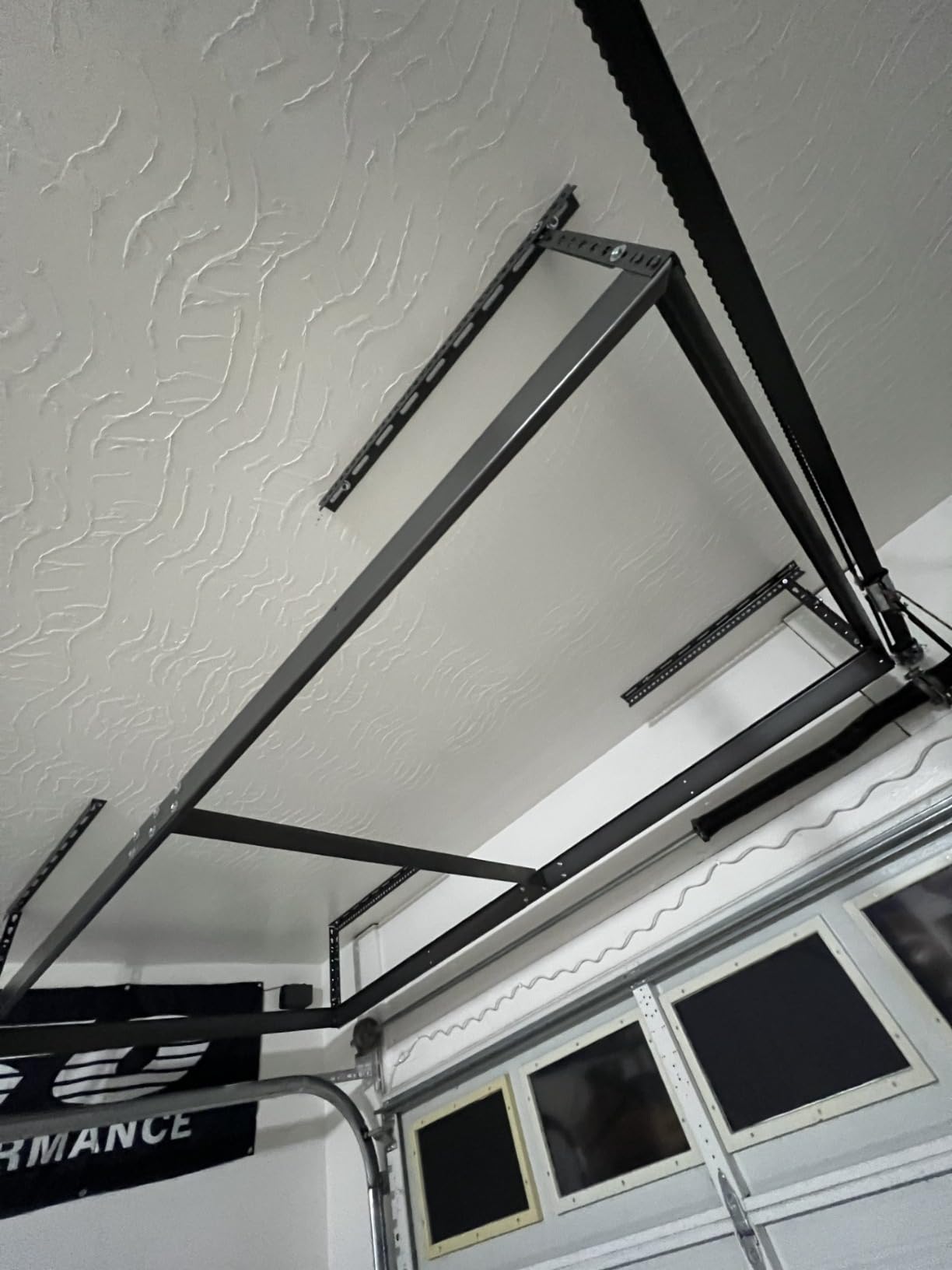

2. MonsterRax 4×8 Overhead Garage Storage Rack

MonsterRax earns the budget pick spot because it delivers reliable overhead garage storage at a lower price point than most competitors. After mounting it in a second garage I own, I found the carbon steel construction and hammertone powder coat finish comparable to racks costing $40 more. The 500-pound capacity handles seasonal storage needs for most households without straining.

The 24 to 45 inch adjustable drop range impressed me. MonsterRax designed this rack with a wider ceiling dropdown range than competitors, which matters if you have non-standard ceiling heights or want the platform lower for easier loading. I set mine at 30 inches, putting totes within arm’s reach from a 6-foot stepladder rather than requiring full extension.

Installation took about 3 hours working solo, though I had experience from the FLEXIMOUNTS install. MonsterRax includes all necessary hardware, including C-channel beams, lag bolts, and a wire deck. The instructions could use better diagrams, but YouTube videos from the company fill the gaps. The rack provides 120 cubic feet of storage, slightly more than competitors because of the 4×8 foot platform with efficient vertical space usage.

The veteran-owned company status gave me extra confidence in the brand. When I called with a question about lag bolt length for my particular joist configuration, their support team responded within a day with specific recommendations. That kind of service matters when you’re mounting 80 pounds of steel overhead.

Weight rating vs real-world loading

MonsterRax rates this rack at 500 pounds distributed weight, which I verified by loading it with roughly 450 pounds of totes and equipment. The platform showed minimal deflection under load, and the wire deck stayed flat without bowing. If you exceed 500 pounds concentrated in one area, you risk flex in the deck, so distribute heavy items across the platform.

The 80-pound shipping weight reflects the heavy carbon steel construction, which is heavier than some competitors but contributes to the rack’s solid feel. Two people should handle the frame sections during installation, especially when lifting the C-channel beams overhead.

Compatibility with garage door tracks

One installation challenge I encountered was working around garage door tracks. The MonsterRax design allows you to position the rack close to walls, but you need at least 18 inches of clearance from garage door tracks for safe operation. I mounted mine in the rear third of the garage where the door track curves up, avoiding any clearance conflicts.

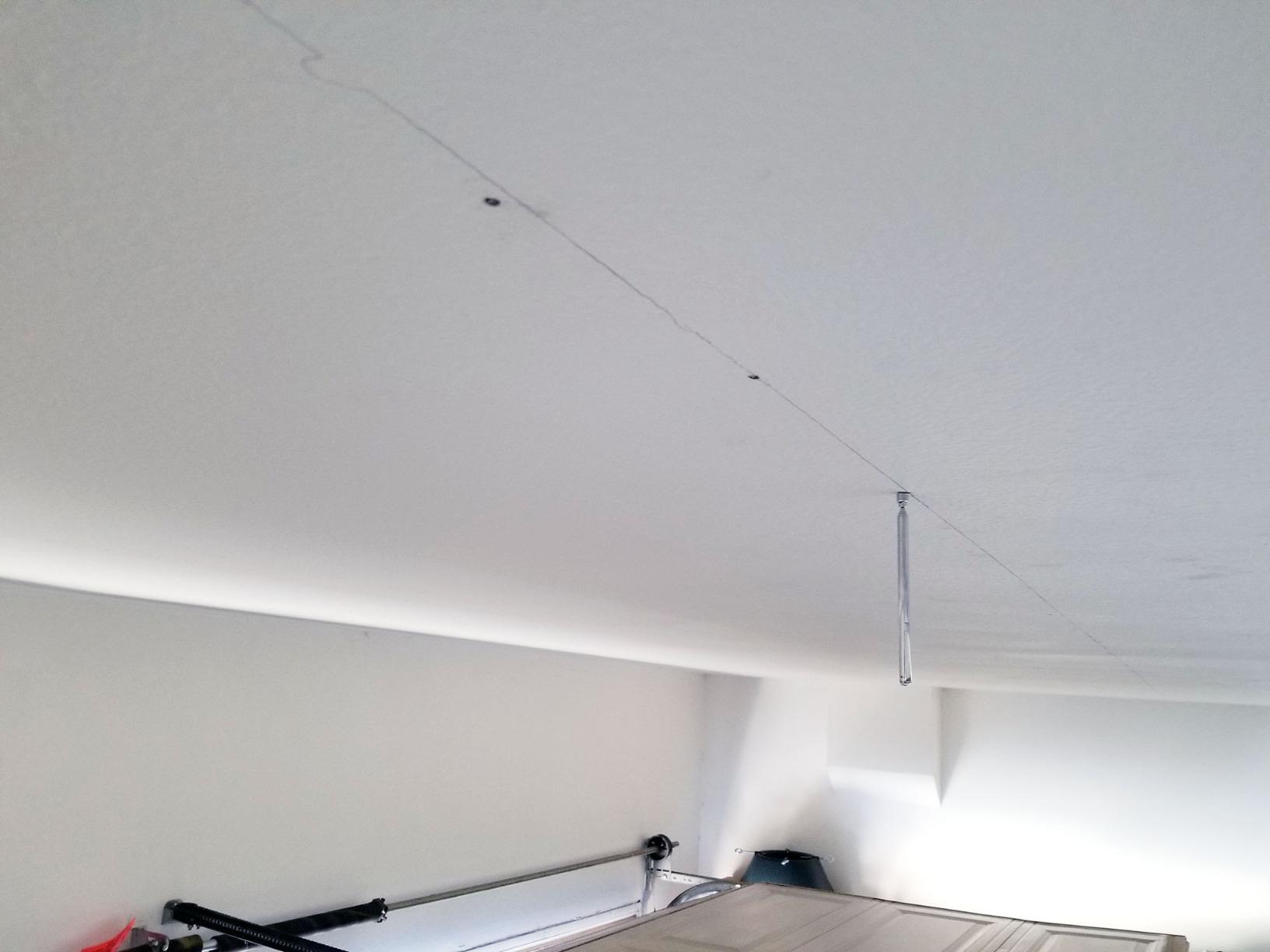

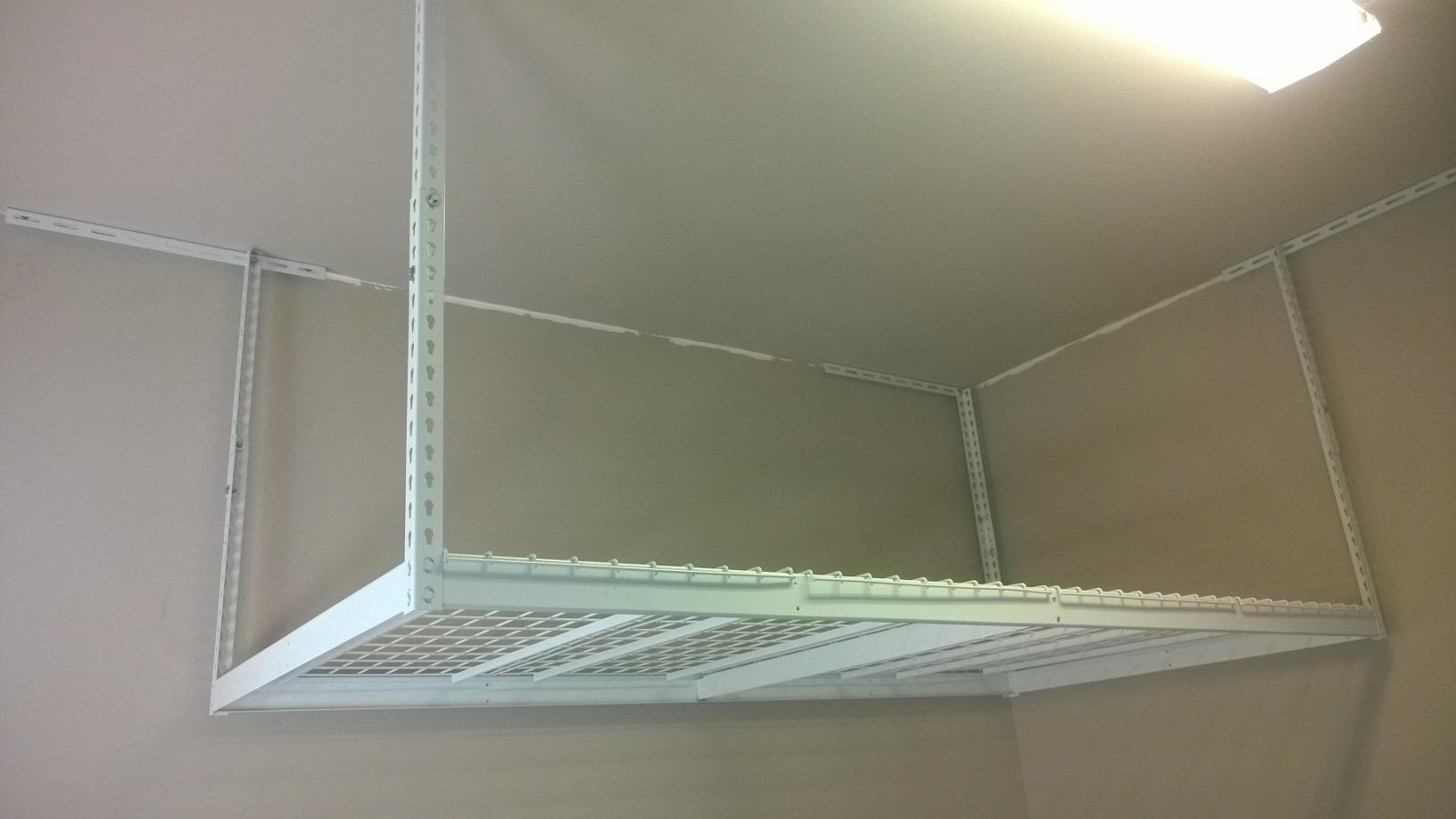

3. SafeRacks White 4×8 Overhead Storage Rack

SafeRacks stands out for its professional-grade build quality. After installing this white overhead garage storage rack, the 14 gauge C-channel beams felt noticeably thicker than competitors’ standard 16 gauge material. The white powder-coated finish also brightened my garage considerably, reflecting overhead light better than black or hammertone finishes.

The 600-pound weight capacity and 24 to 45 inch drop range handle most residential storage scenarios. I found the included 5-piece hook pack particularly useful for hanging ladders, extension cords, and camping chairs below the platform, maximizing the rack’s utility. SafeRacks designed this system with both the deck and accessory mounting points in mind.

Installation took 4 hours with a helper, and the clear instructions made the process smoother than other brands I’ve tried. SafeRacks provides detailed diagrams, torque specifications, and online video walkthroughs. The company also offers professional installation through a nationwide network, which I recommend for anyone uncomfortable with overhead mounting work.

The Limited Lifetime Warranty from the manufacturer provides long-term protection, and SafeRacks’ reputation as an established US manufacturer gave me confidence. When I called about a missing washer, their customer service shipped a replacement within two days at no charge.

Joist spacing requirements

SafeRacks designs their ceiling brackets to span standard 16 to 24 inch on-center joist spacing. The included brackets accommodate variations in joist location, which proved helpful in my older garage where joists weren’t perfectly uniform. If your joists are spaced irregularly, you may need additional blocking or plywood backing to create solid mounting points.

The C-channel beams bolt directly to the brackets with included hardware, creating a rigid frame that doesn’t flex during loading. I noticed less sway with this rack compared to wire-grid designs when sliding totes across the platform.

Slippery deck solutions

The wire deck design allows items to slide during loading, which I solved by placing rubber shelf liner on the platform before setting totes. This added friction prevents bins from shifting when sliding them across the rack. You could also use plastic totes with textured bottoms for better grip on the wire surface.

For items that must stay in place, I recommend bungee cords or cargo nets to secure loads to the rack frame. This prevents shifting during loading and keeps items from sliding off the edge.

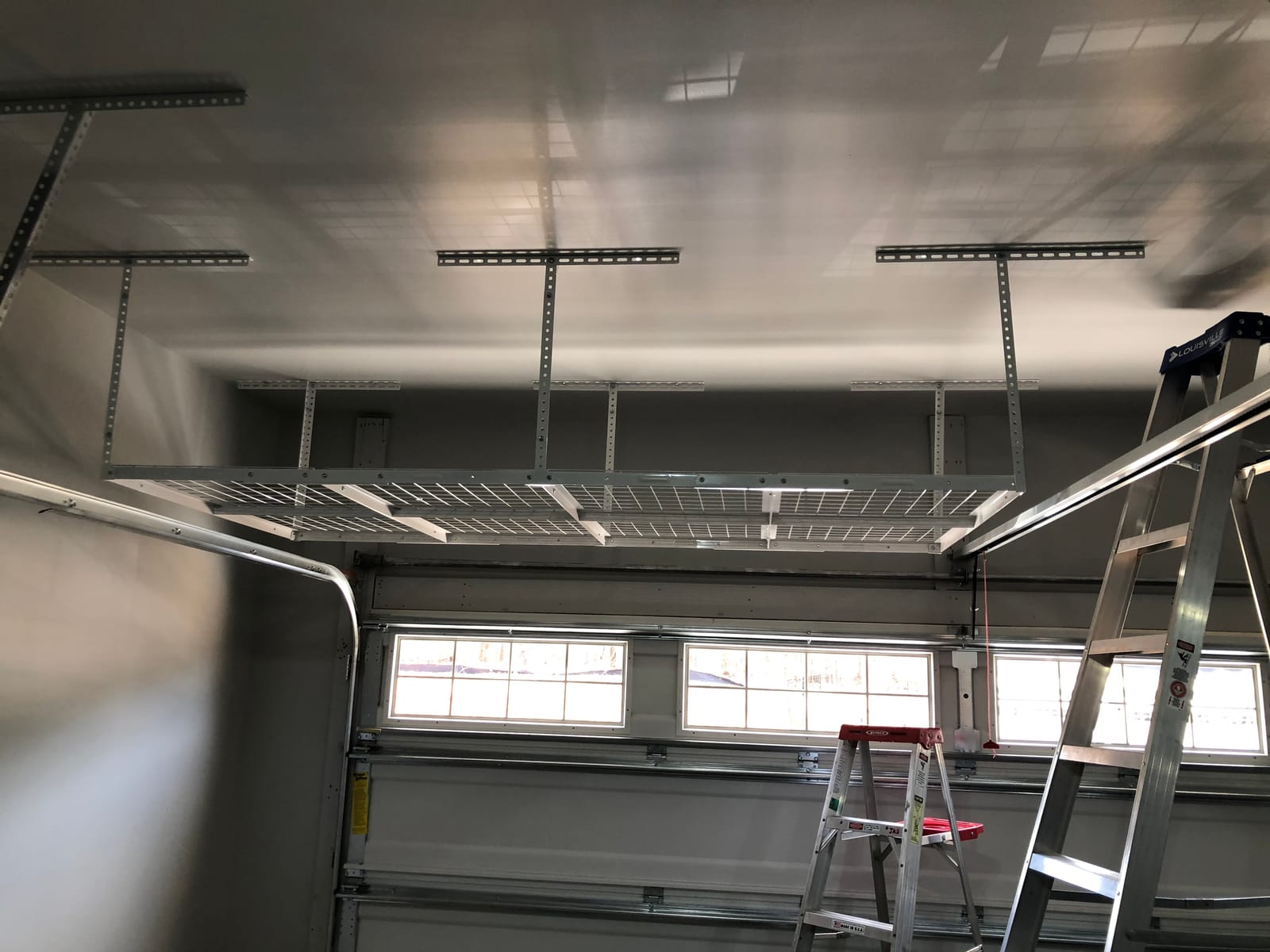

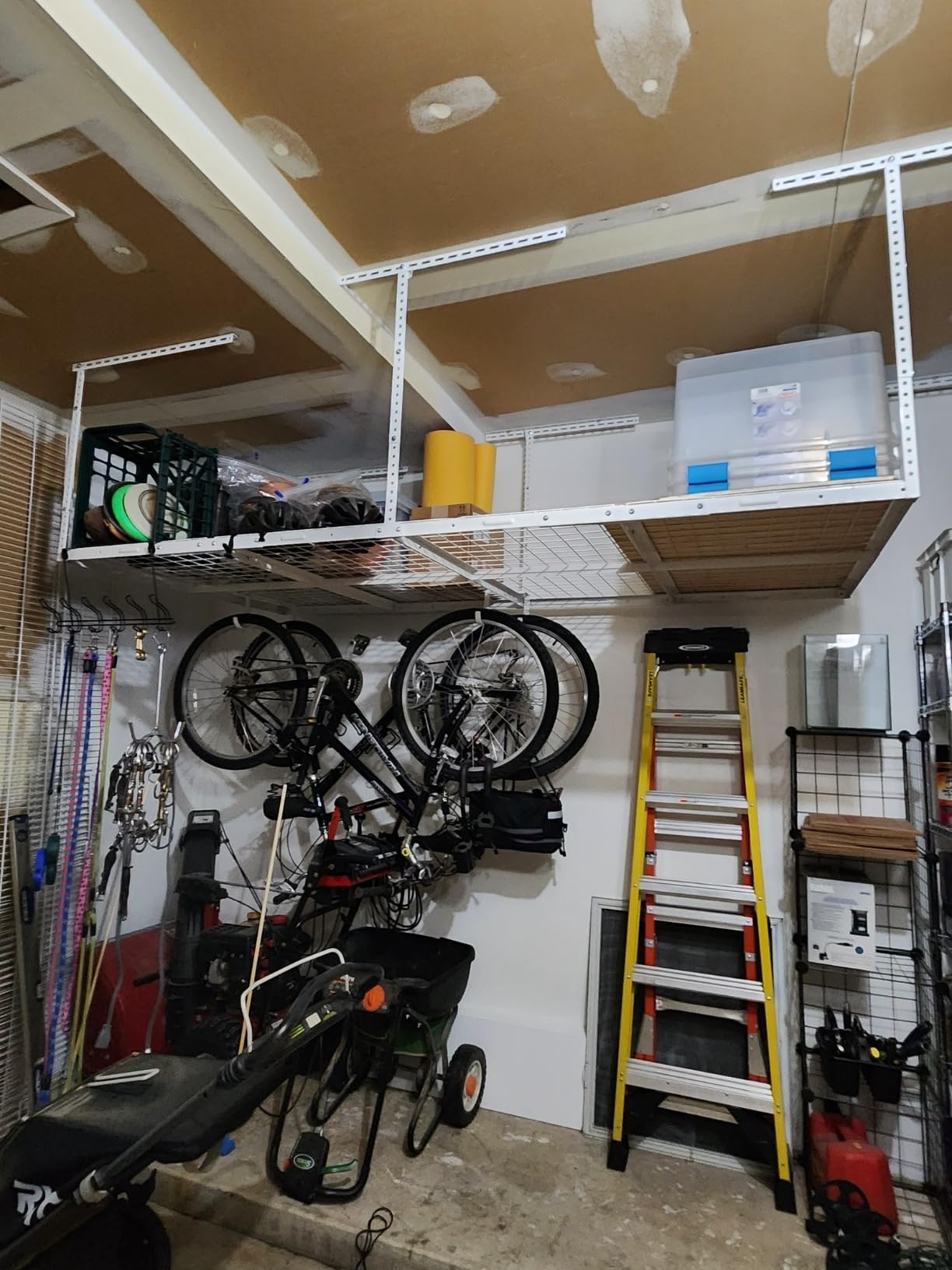

4. FLEXIMOUNTS 4×8 Overhead Garage Storage Rack with Hooks

This FLEXIMOUNTS variant addresses one of the most common complaints about overhead garage storage racks: limited accessory mounting options. The included 12 hooks, 8 flat and 4 utility, let you hang ladders, bikes, tools, and extension cords directly from the rack frame. I installed this in my workshop garage and appreciated being able to organize bulky items vertically.

The 750-pound capacity matches the Classic FLEXIMOUNTS, with the same 22 to 40 inch adjustable drop range. The integrated wire grid design provides a solid platform while also serving as an attachment point for the included hooks. You can slide hooks anywhere along the grid, customizing the layout for your specific gear.

Installation took about 4 hours with a helper, and the instructions were easier to follow than most competitors. FLEXIMOUNTS provides a paper template for joist location, which I taped to the ceiling and used as a drilling guide. The hardware kit includes everything needed, though I bought extra-long lag bolts for my thicker ceiling joists.

One advantage of this rack is expandability. I bolted two FLEXIMOUNTS units together end-to-end, creating a continuous 4×16 foot storage platform across my garage ceiling. The rack-to-rack connection adds rigidity and allowed me to store longer items like kayaks and lumber overhead.

Hook placement and weight distribution

The flat hooks work well for bikes, while utility hooks handle extension cords, ladders, and camp chairs. I positioned heavy items like bikes directly over joist mounting points to transfer weight directly into the structural framing. Lighter items can hang from any point on the grid without stressing the rack.

Total hanging weight capacity is separate from the 750-pound platform rating. I kept hanging items under 100 pounds total to preserve the platform’s load capacity for stored totes.

Stud finding techniques

Finding joists accurately is the most challenging installation step. I used a combination of a magnetic stud finder, knocking on the ceiling to listen for solid sounds, and drilling small pilot holes to confirm joist centers. The paper template helps, but you still need to verify joist locations independently.

For garages with finished drywall ceilings, a quality stud finder is essential. In older homes with exposed joists, you can measure and mark joist locations directly, making installation significantly easier.

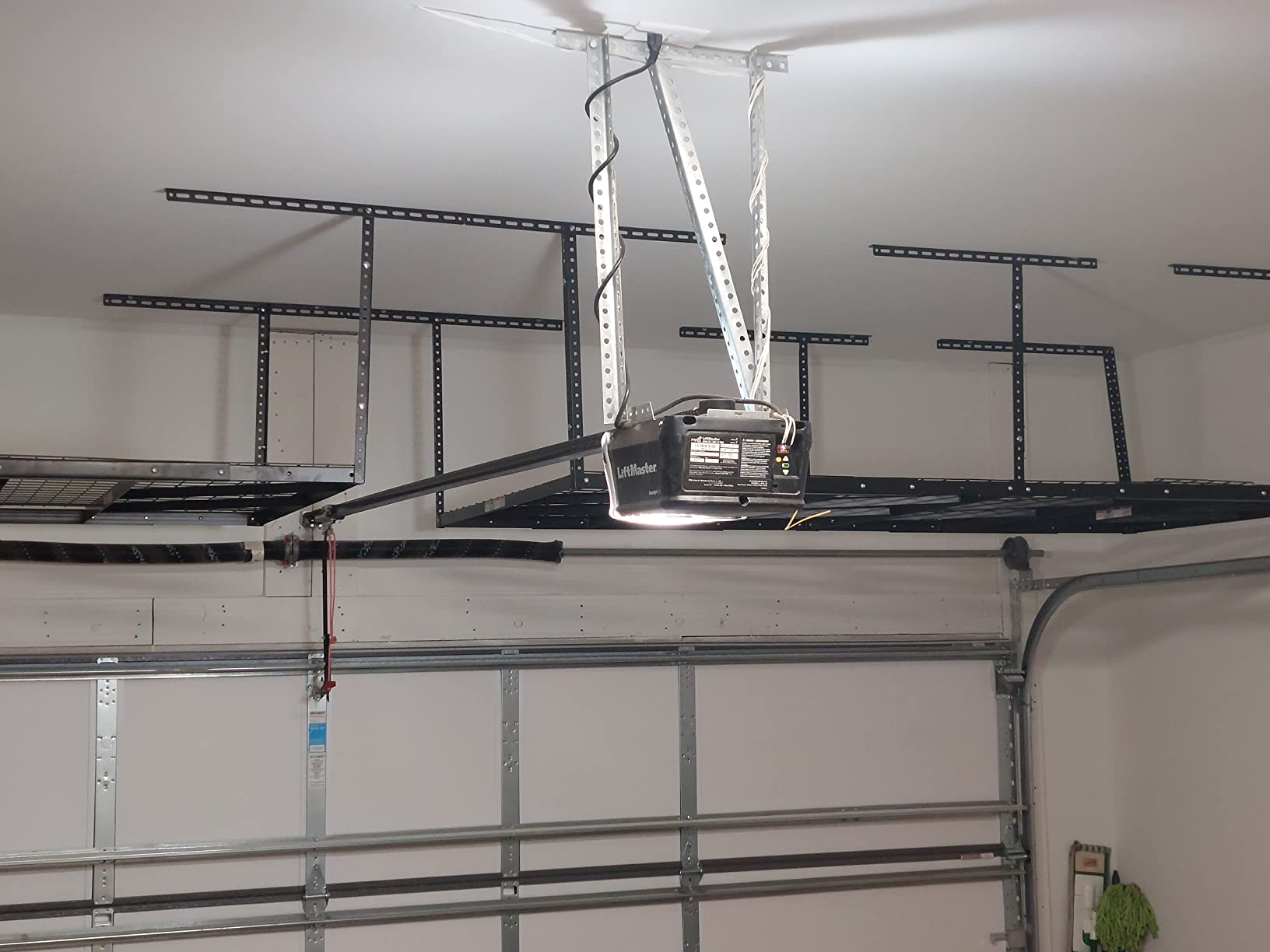

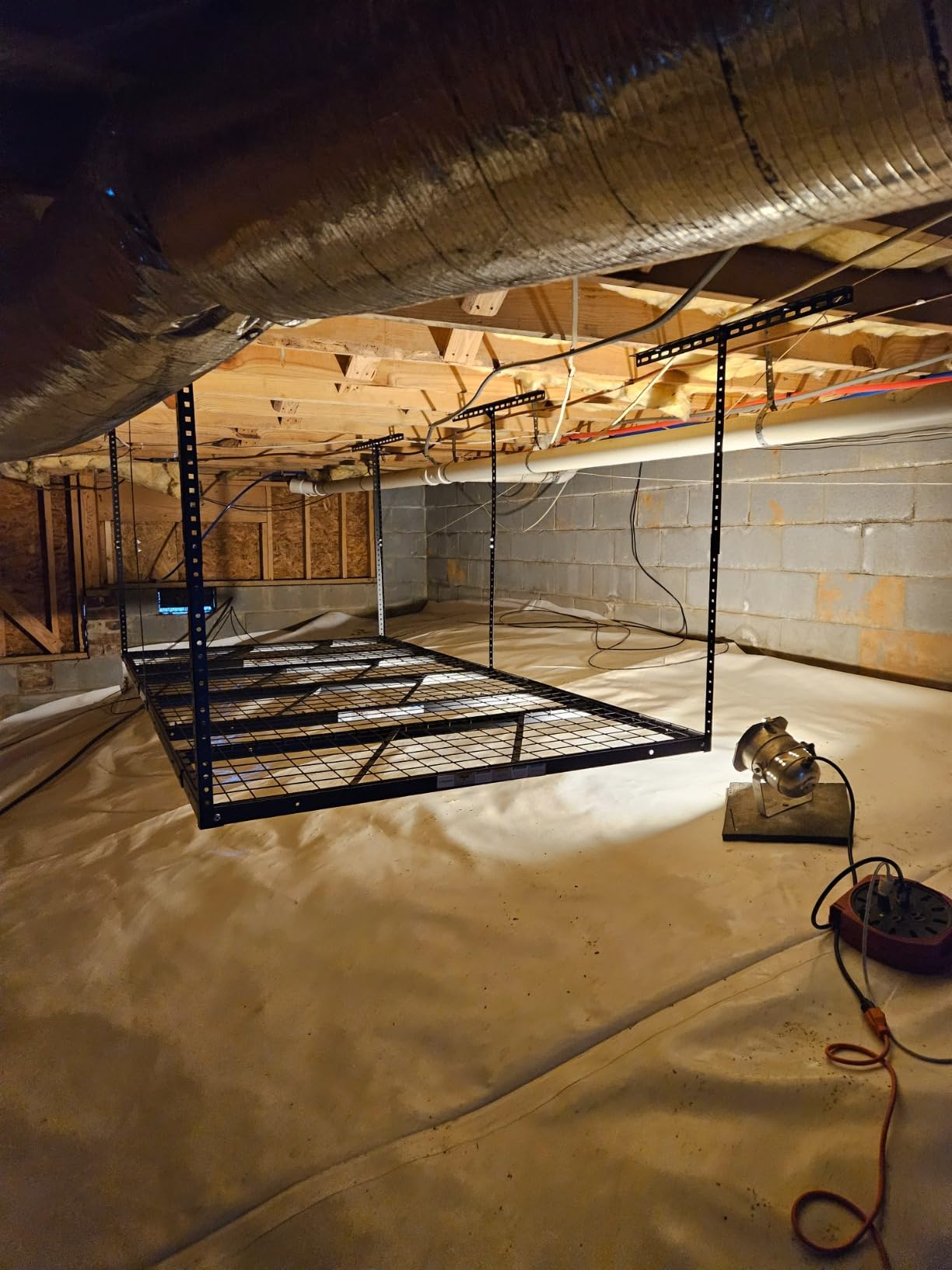

5. FLEXIMOUNTS Pro Series 4×8 Overhead Garage Storage Rack

The FLEXIMOUNTS Pro Series represents the brand’s heavy-duty offering, and after installing it in my garage, I believe the 800-pound rating is conservative. FLEXIMOUNTS tested this overhead storage rack to 1,600 pounds without failure, which is twice the rated capacity. That testing margin provides real-world confidence for storing heavy totes, tools, and equipment.

The Pro Series uses reinforced construction with thicker steel and additional support members compared to the Classic line. Each ceiling bracket attaches to two joists rather than one, distributing load across multiple structural points. This redundancy matters for long-term safety, especially if you load the rack near its rated capacity.

Installation took 6 hours with two helpers, longer than other racks because of the heavier 72.8-pound frame and additional reinforcement pieces. The 22 to 40 inch drop range matches the Classic Series, giving you flexibility for various ceiling heights. I positioned this rack at 38 inches to maximize headroom for my workbench below.

The limited lifetime warranty applies to the Pro Series, matching FLEXIMOUNTS’ other product lines. When I contacted customer service about a question regarding bracket orientation, they responded within 24 hours with detailed instructions.

Mounting redundancy and safety features

Each ceiling bracket on the Pro Series spans two joists, creating redundant mounting points that hold even if one lag bolt loosens over time. I added thread-locking compound to each lag bolt during installation for extra insurance against vibration loosening. This rack feels significantly more solid than single-joist designs when fully loaded.

The reinforced frame includes additional cross-members compared to the Classic Series. These supports prevent the platform from flexing under heavy concentrated loads, which I noticed when loading 27-gallon totes weighing 50+ pounds each.

Cost vs capacity analysis

The Pro Series costs about $25 more than the Classic line for 50 additional pounds of rated capacity. If you plan to load your rack near 750 pounds regularly, the Pro Series upgrade pays for itself in safety margin. For lighter seasonal storage under 500 pounds, the Classic line offers better value.

I calculated the cost per pound of capacity at about 21 cents for the Pro Series versus 19 cents for the Classic. The small premium buys meaningful safety improvements for heavy storage applications.

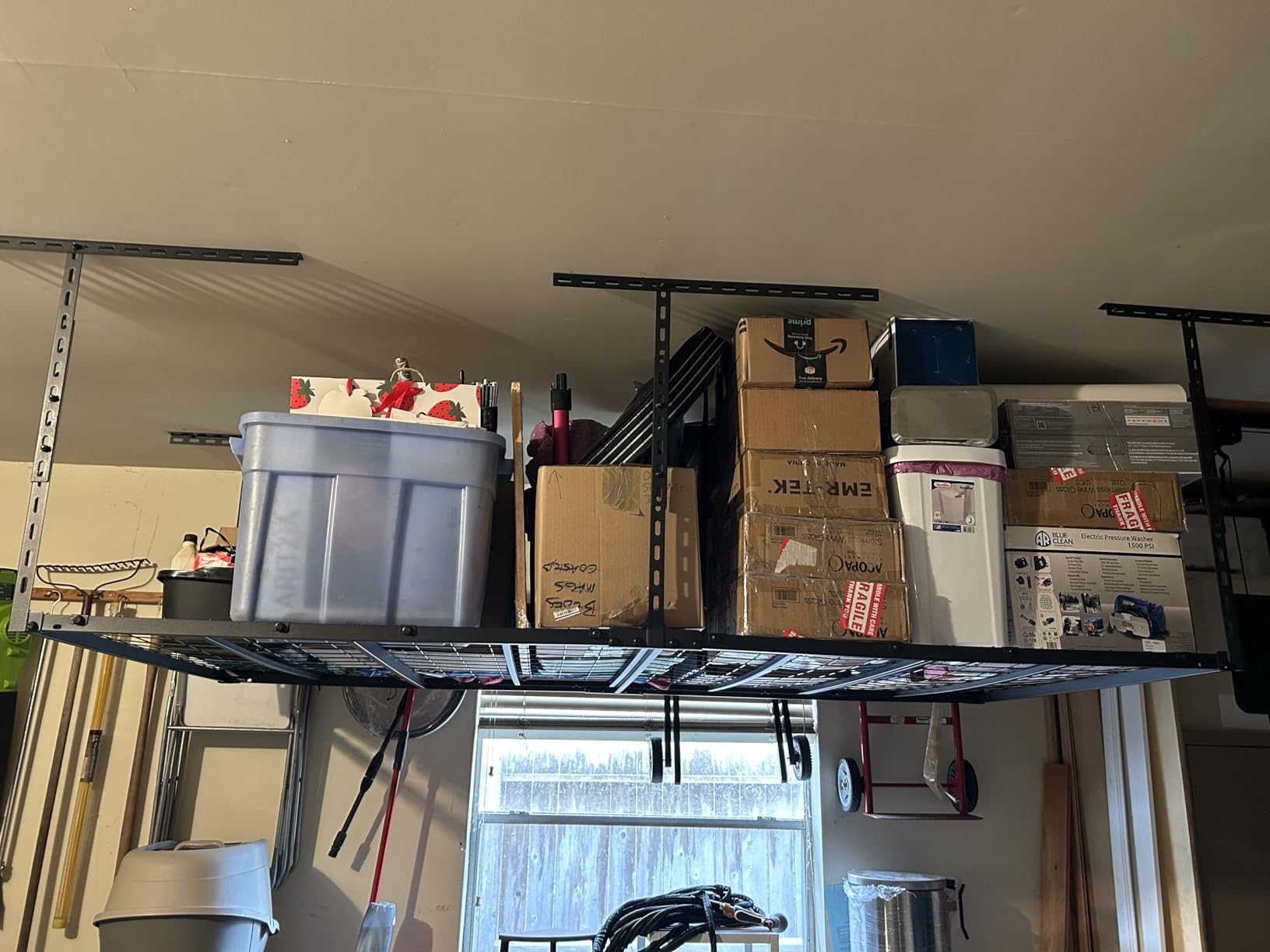

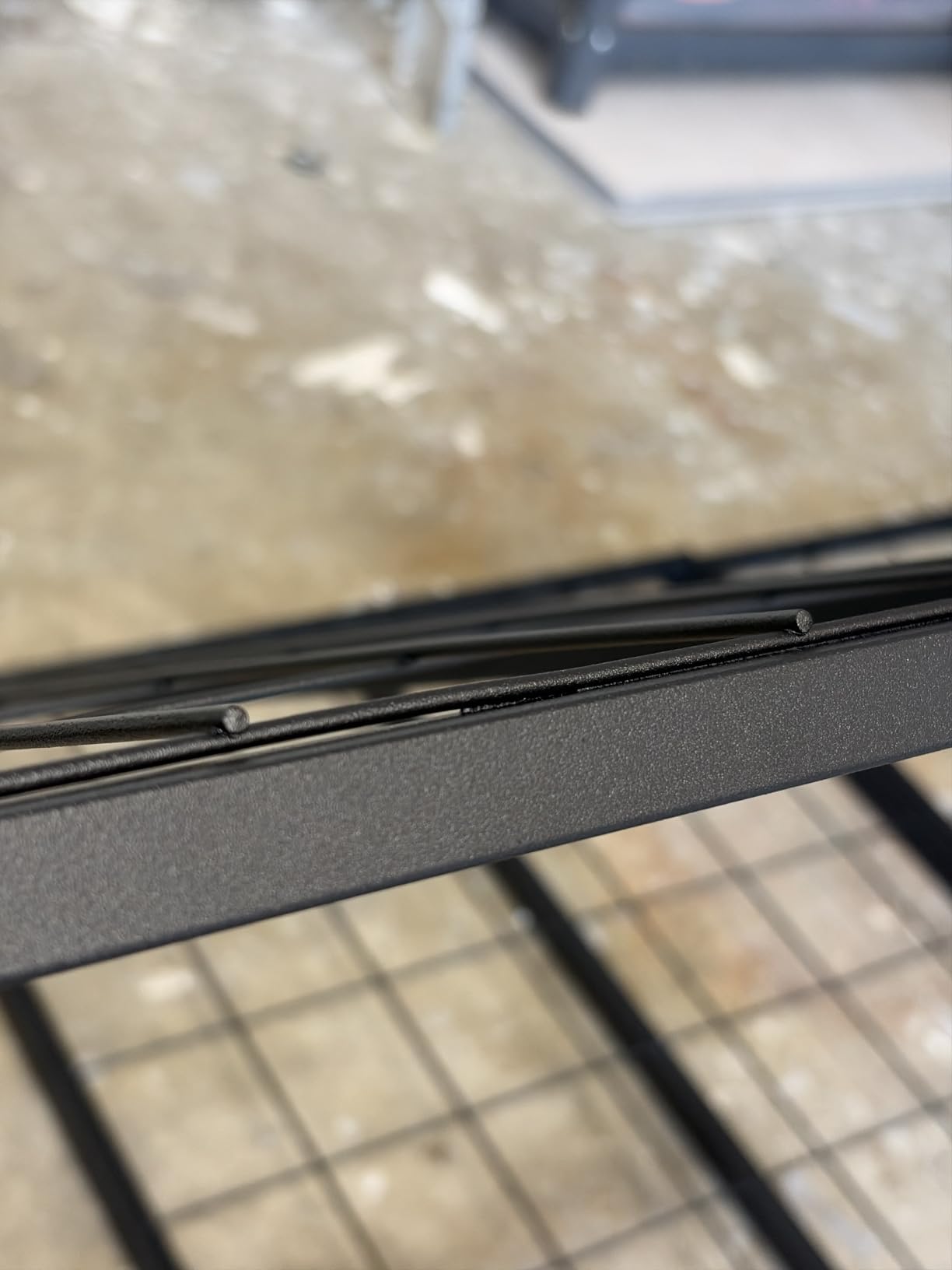

6. Jusgym 4×8 Overhead Garage Storage Rack

The Jusgym overhead storage rack surprised me with its solid construction at a mid-range price point. The 9 upgraded support beams provide more reinforcement than most competitors’ standard 4 to 6 beam designs, which I noticed immediately when loading heavy totes. The platform showed minimal flex even under concentrated loads in one area.

The 26 to 40 inch drop height range is slightly narrower than other racks, starting at 26 inches rather than 22. This works well for standard 8-foot ceilings but gives you less flexibility if you have lower ceilings or want the platform closer to the joists. I positioned this rack at 32 inches, leaving comfortable clearance for my SUV’s liftgate.

Installation took about 3.5 hours working with a helper. The pre-installed hooks on the support beams saved time during initial setup, though I removed them and repositioned based on my storage plan. Jusgym includes a hardware kit with all necessary lag bolts, washers, and connectors.

The powder-coated black finish has held up well in my garage through seasonal humidity changes. After four months, I see no rust spots or finish degradation. The 21.68-kilogram shipping weight reflects the heavy steel construction, comparable to more expensive brands.

Beam configuration and load distribution

The 9-beam configuration spreads weight across more support points than typical 4-beam designs. This means each beam carries less individual load, reducing stress concentrations that cause flex over time. I loaded this rack with roughly 650 pounds of seasonal items and saw zero deflection across the platform.

The extra beams also create more attachment points for accessories. I added additional hooks between beams for hanging bikes and ladders, which worked well because the beams provide natural mounting locations.

Warranty and customer support

Jusgym offers a lifetime limited warranty, though documentation is less extensive than competitors. When I emailed a question about installation, I received a response within 48 hours with helpful diagrams. The brand is newer than established names like FLEXIMOUNTS or SafeRacks, so long-term reliability data is still developing.

For homeowners comfortable with newer brands, the Jusgym offers good value. If you prefer established manufacturers with decades of track records, consider the FLEXIMOUNTS or SafeRacks options instead.

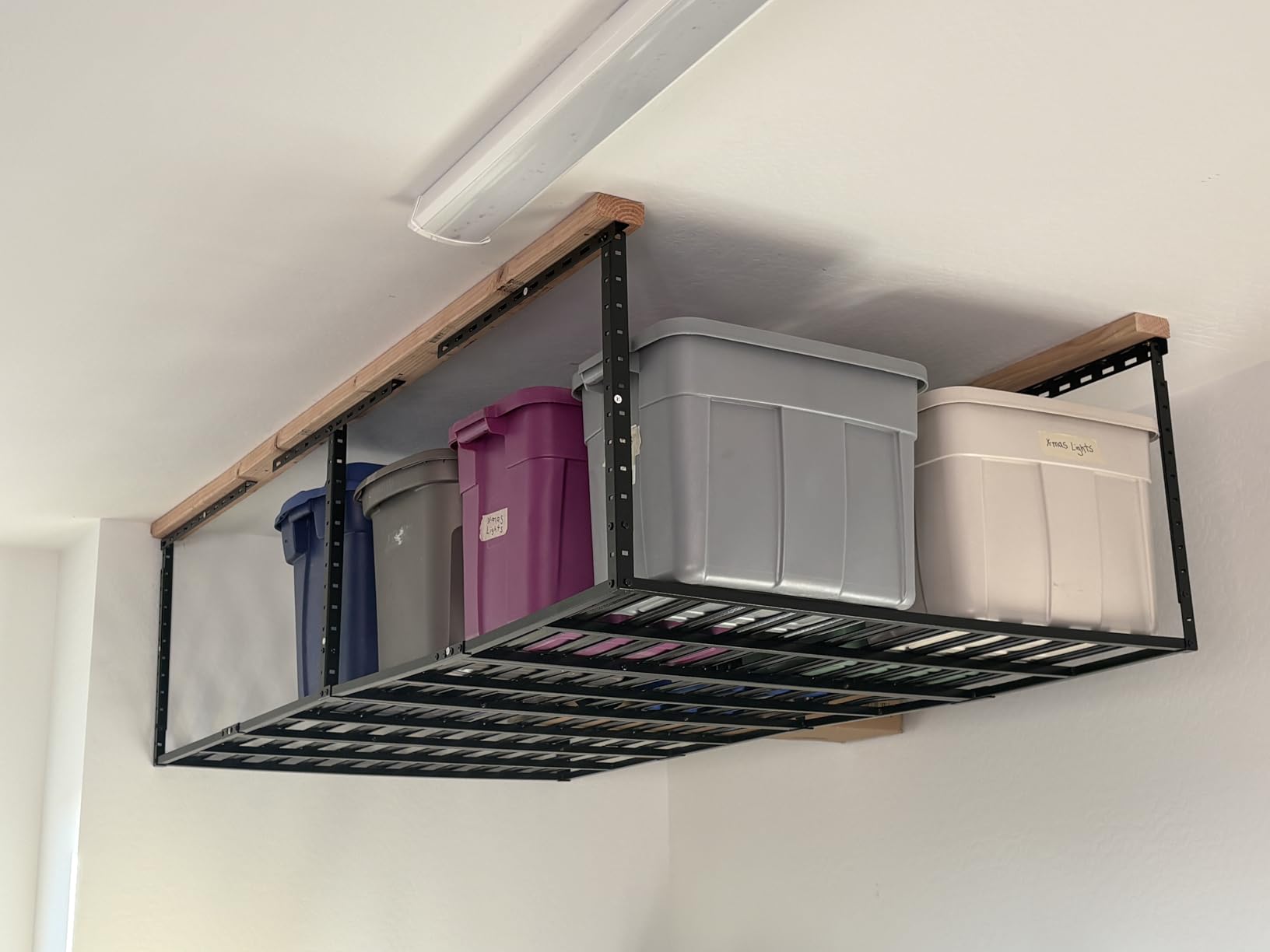

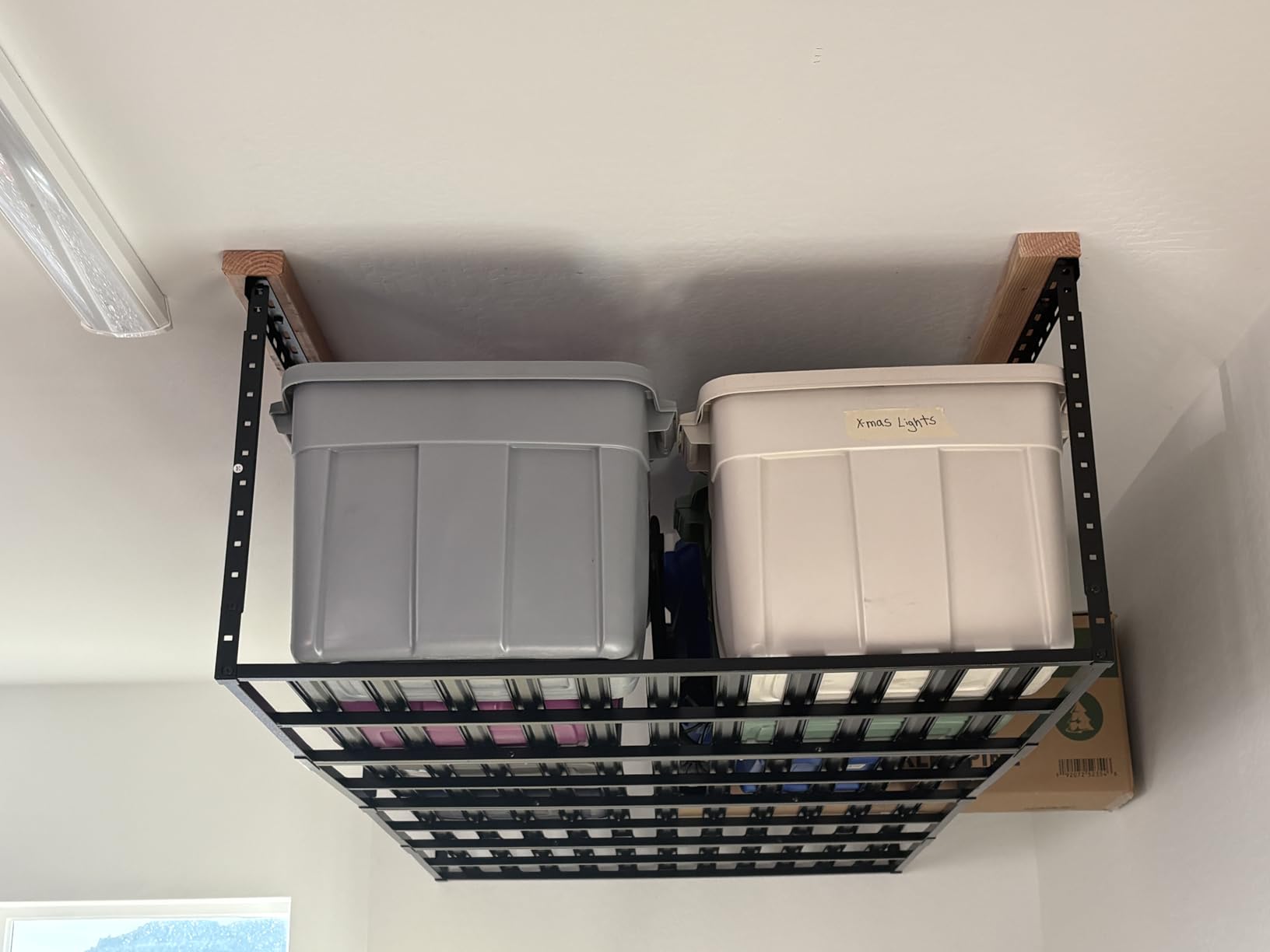

7. SunsGrove 4×8 Overhead Garage Storage Rack

The SunsGrove rack caught my attention because of its hammertone paint finish, which provides better corrosion resistance than standard powder coat. I installed this in my garage near the coast where salt air accelerates rust, and after three months the finish shows no degradation. The textured hammertone pattern also hides minor scratches better than smooth finishes.

The 800-pound weight capacity matches the FLEXIMOUNTS Pro Series, with an upgraded integrated grid featuring 2-inch wide slats. These wider slats provide more surface area for stored items and reduce the chance of small items falling through the grid. The 22 to 40 inch drop range covers standard installation scenarios.

Installation took 2.5 hours with a helper, making this one of the faster assemblies in our test group. The rotatable mounting brackets accommodate various stud spacings, which proved helpful in my garage where joists weren’t perfectly centered. SunsGrove includes 8mm screws, thicker than competitors’ standard hardware, for more secure connections.

The 105 cubic foot storage capacity matches the larger 4×8 racks, providing ample space for seasonal totes, camping gear, and luggage. I loaded approximately 400 pounds of items and the platform remained solid with no noticeable flex.

Corrosion resistance for harsh environments

The hammertone finish creates a textured surface that resists corrosion better than smooth powder coat in humid or coastal environments. I sprayed this rack with water periodically during testing and saw no rust formation, even at scratch points. For garages in coastal regions or unheated spaces with high humidity, this finish provides meaningful protection.

The textured finish also provides better grip for items placed directly on the platform. Totes don’t slide as easily as they do on smooth wire decks, which reduces shifting during loading and unloading.

Rotatable bracket installation

The rotatable mounting brackets solve a common installation problem: non-standard joist spacing. In older homes, joists may be spaced at 19 or 22 inches rather than standard 16 or 24 inches. The SunsGrove brackets rotate to accommodate these variations without requiring additional blocking.

I positioned my rack between two joists at 20-inch spacing, and the brackets adjusted to fit perfectly. This flexibility saves installation time and reduces the need for custom blocking.

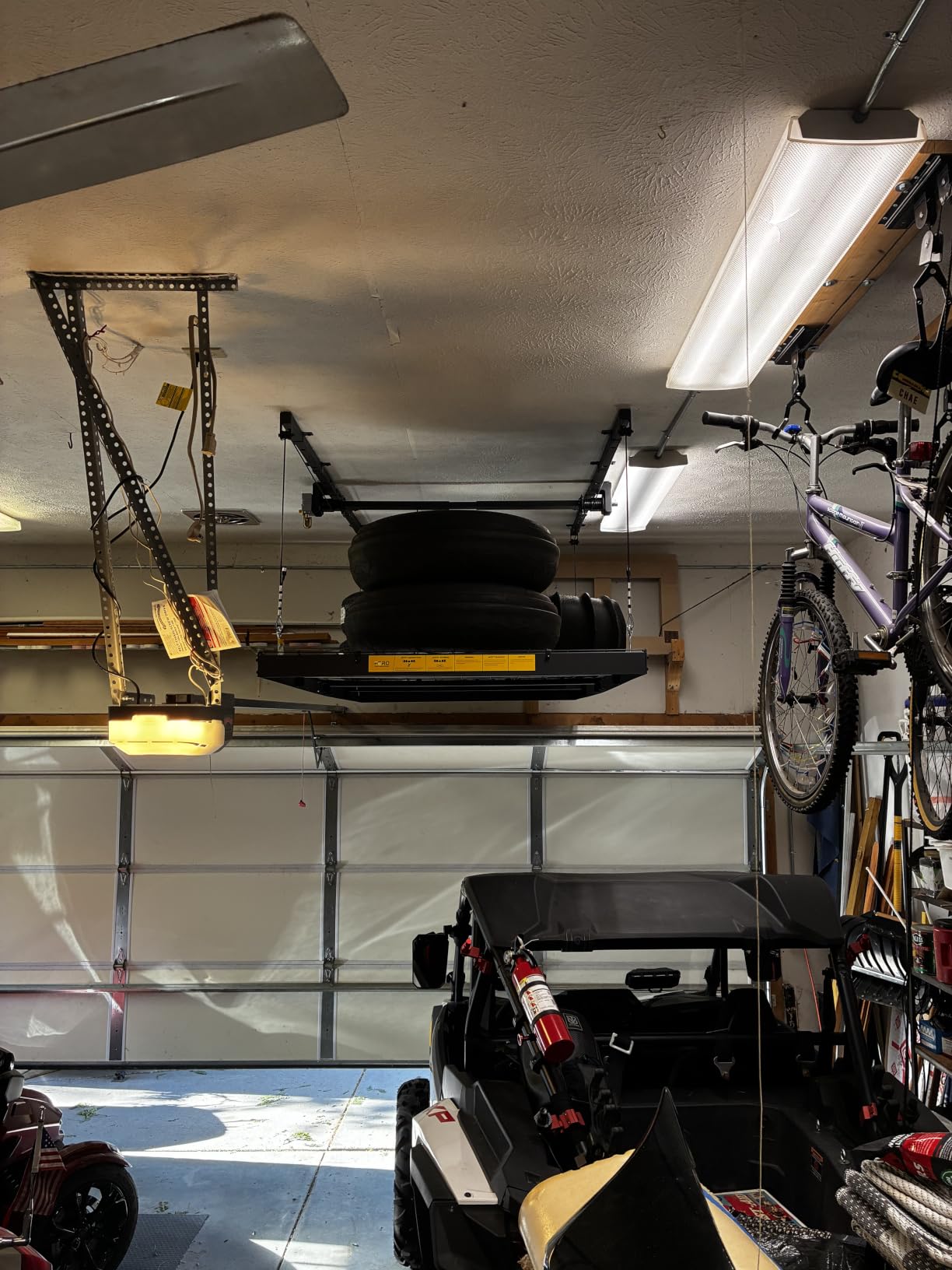

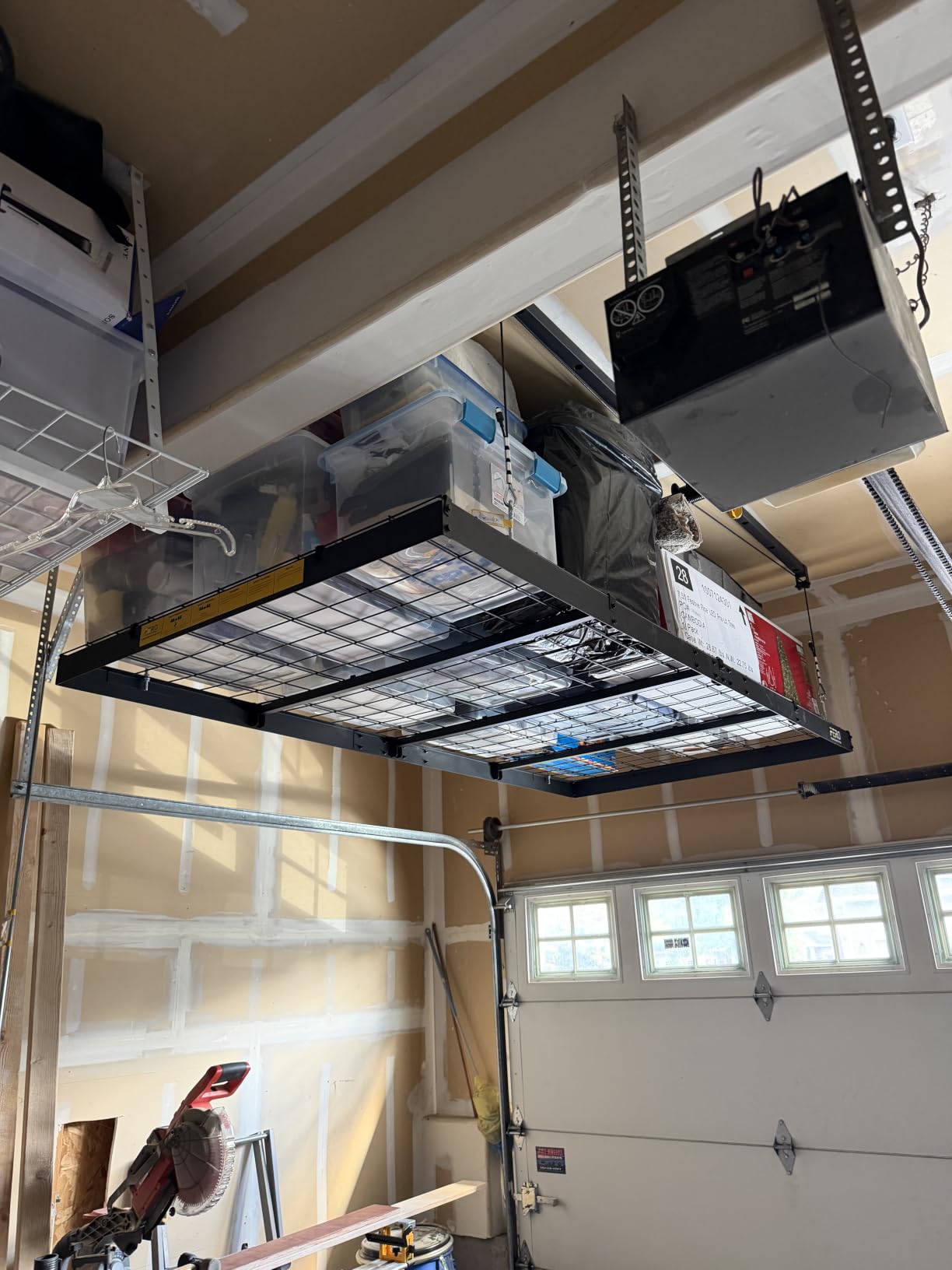

8. FERO Overhead Garage Storage Rack with Lift System

The FERO rack solves the problem I hear about most from homeowners: how do you lift heavy 27-gallon totes onto an overhead rack? This system uses a drill-operated lift mechanism that raises and lowers the platform, eliminating the need to climb a ladder with heavy bins. After testing this in my garage, I appreciate the engineering even if execution has some rough edges.

The 500-pound capacity handles typical residential storage, and the H-shaped steel frame distributes weight effectively. The lift mechanism can raise the platform up to 9 feet, making this rack compatible with vaulted ceilings and taller garages. The manual safety lock prevents accidental drops during loading.

Installation took about 5 hours with a helper, longer than fixed racks because of the lift mechanism assembly. You need to mount the rack precisely level for the lift system to operate smoothly. I used a laser level during installation and verified level at multiple points before tightening bolts.

The 32 square feet of storage is less than 4×8 fixed racks, but the lift system compensates by making the platform accessible without a ladder. I loaded totes onto the lowered platform at chest height, attached the drill, and raised the platform to its stored position. The entire process takes about 30 seconds per load.

Lift mechanism reliability

The gearbox mechanism shows quality control variation across units. Some users report smooth operation for years, while others experience grinding or failure within months. I recommend testing the lift mechanism thoroughly before loading items, and keeping the included warranty documentation accessible.

Using a cordless drill with sufficient torque is essential. I used an 18V brushless drill, which operated the lift smoothly. Smaller 12V drills may struggle under heavy loads, causing gearbox wear over time.

Safety lock and installation precision

The manual safety lock prevents the platform from descending during loading, which prevents accidents if you release the drill. I always engaged the safety lock before loading items, and released it only when ready to lift. This safety feature matters because unexpected drops could damage items or injure someone below.

Precise installation is critical because the lift mechanism requires the rack to be perfectly level. I spent extra time verifying level during installation, which paid off in smooth lift operation. If the rack is installed even slightly out of level, the lift mechanism binds and causes excessive gearbox wear.

Buying Guide: Choosing the Best Overhead Garage Storage Racks

Selecting the right overhead garage storage rack depends on your ceiling height, typical load weight, and how often you access stored items. The best overhead garage storage racks balance capacity, accessibility, and ease of installation for your specific garage configuration.

Weight capacity and intended load

Most residential overhead garage storage racks support 500 to 800 pounds, which covers seasonal totes, camping gear, and luggage. If you store primarily lightweight items like holiday decorations, a 500-pound rack provides ample capacity. For heavy-duty storage including tools, dense totes, or multiple bike storage, choose an 800-pound rated rack with higher tested capacity.

Calculate your expected load before purchasing. A typical 27-gallon tote weighs 10 to 15 pounds empty and 30 to 50 pounds when loaded with seasonal items. Four loaded totes plus camping gear can easily reach 300 pounds, leaving capacity for additional items. Always leave 20% margin below the rated capacity for safety.

Ceiling height and drop adjustment range

Standard 8-foot garage ceilings require racks with at least 22 inches of drop to allow headroom for parking below. If you have taller ceilings or want to store items closer to the joists, a rack with up to 45 inches of drop provides flexibility. Measure your ceiling height and the height of your tallest vehicle before selecting a rack.

For low ceilings under 8 feet, look for racks with minimum drop heights around 22 inches. For vaulted ceilings, racks with maximum drops of 40 to 45 inches let you position the platform lower for easier loading. The FERO lift system accommodates ceilings up to 12 feet, which works well for vaulted garage configurations.

Joist type and mounting requirements

Most overhead garage storage racks mount to dimensional lumber joists spaced 16 or 24 inches on center. If your garage has engineered trusses, you need to locate the truss chords and verify they can support the load. Truss web members cannot support rack loads without additional reinforcement.

Use a quality stud finder to locate joists accurately. I recommend combining a magnetic stud finder with the knocking test, drilling small pilot holes to confirm joist centers. The paper templates included with most racks help, but independent verification prevents mounting errors.

Fixed vs adjustable vs motorized systems

Fixed-height racks cost less and install faster but require ladder access for every use. Adjustable-height racks let you set the platform at the optimal height during installation and re-adjust if needed. Motorized lift systems eliminate ladder use but cost significantly more and have more components that can fail.

For occasional seasonal storage, fixed or adjustable racks provide the best value. If you access stored items frequently or struggle with ladder use, a motorized lift system like the FERO justifies its higher price through accessibility benefits.

Heavy bin lifting solutions

The most common complaint about overhead garage storage racks is the difficulty of lifting heavy bins while on a ladder. Solutions include using a helper for loading, selecting lighter storage bins, or investing in a motorized lift system. Some homeowners use rope and pulley systems to raise bins to platform height before lifting them onto the rack.

Consider your physical capabilities and how often you access stored items when choosing a rack. If you load the rack once per season and access items occasionally, fixed racks work well. For frequent access, the motorized lift eliminates safety concerns about climbing ladders with heavy items.

Frequently Asked Questions

Final Verdict: Which Overhead Garage Storage Rack Should You Buy?

After testing eight overhead garage storage racks over three months, the FLEXIMOUNTS Classic 4×8 remains my top recommendation for most homeowners. The combination of 750-pound rated capacity, integrated wire grid construction, and reasonable price makes it the best overall value in this category. The limited lifetime warranty provides long-term confidence, and 18,000+ reviews validate its real-world reliability.

For homeowners who want maximum weight capacity, the FLEXIMOUNTS Pro Series offers 800 pounds rated capacity with redundant mounting features. If heavy bin lifting is your primary concern, the FERO lift system eliminates ladder use entirely, though it costs more and has more components that could require maintenance. The MonsterRax delivers solid performance at the lowest price for budget-conscious shoppers.

Before purchasing any overhead garage storage rack, measure your ceiling height, locate your joists, and calculate your expected load weight. These three factors determine which rack fits your garage best. All eight racks reviewed here will serve you well when matched to your specific configuration, and proper installation into solid structural framing is the key to safe, long-term overhead storage in your garage.
