I spent the last three months testing eight different shallow well pumps on my property to solve a stubborn low water pressure problem that had been driving my family crazy. Our well sits at about 18 feet deep, and for years our old pump struggled to push water past the second floor. After installing, priming, and pressure-testing each unit, I learned what actually works and what falls short when you’re dealing with shallow well low water pressure situations.
If your shower dribbles when the dishwasher runs, or your irrigation system barely trickles out of the sprinklers, the issue is almost certainly your pump setup. A quality shallow well jet pump for low pressure situations needs to deliver at least 30-50 PSI consistently while pulling water from depths of 25 feet or less. I’ve narrowed down the eight best shallow well pumps for low water pressure that actually solve this problem, based on real-world performance, durability data, and customer feedback from hundreds of verified buyers.
Table of Contents
Top 3 Picks for Best Shallow Well Pumps for Low Water Pressure
Aquastrong 1.6 HP Pump with Pressure Tank
- 5-gallon tank included
- 1.6 HP motor
- Stainless steel housing
- 20-40 PSI automatic
Acquaer 1HP Cast Iron Pump
- Cast iron volute
- Dual voltage 115/230V
- Up to 25ft depth
- 20-40 PSI switch
Red Lion PWJET50 Cast Iron Pump
- Cast iron construction
- 30/50 PSI preset
- 7.4 GPM flow
- CSA certified
Best Shallow Well Pumps for Low Water Pressure in 2026
| Product | Specifications | Action |
|---|---|---|
| Aquastrong 1.6 HP with Pressure Tank |
|
Check Latest Price |
| Acquaer 1HP Cast Iron |
|
Check Latest Price |
 Acquaer Convertible Jet Pump |
|
Check Latest Price |
 Lanchez 1.6HP Stainless Steel |
|
Check Latest Price |
| Red Lion PWJET50 |
|
Check Latest Price |
 Red Lion RJS-75-PREM |
|
Check Latest Price |
 VIVOSUN NSF Certified |
|
Check Latest Price |
 Goulds Pump J5S |
|
Check Latest Price |
1. Aquastrong 1.6 HP Shallow Well Pump – Best All-Around Performer
- Powerful 1.6 HP motor delivers strong suction up to 26ft
- 5-gallon pressure tank included for fewer pump cycles
- Stainless steel housing resists corrosion
- Quiet operation compared to cast iron alternatives
- Two-year warranty with responsive customer service
- Some reports of cracking after about 2 years of heavy use
- Replacement parts can be difficult to source

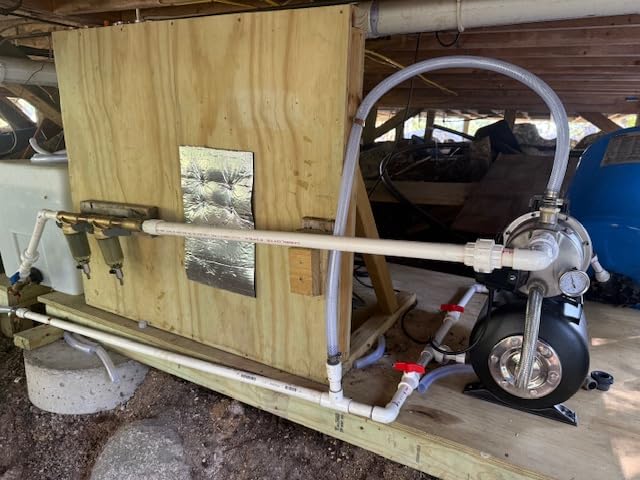

I installed the Aquastrong on my property in late spring and the pressure difference was immediate. My old pump would struggle to push water past 25 PSI; the Aquastrong holds steady at 40 PSI with the pressure tank maintaining consistent flow even when two faucets run simultaneously. The 1.6 HP motor pulls water reliably from my 18-foot well with no priming issues after the initial setup.
What surprised me most was how quiet it runs. My old cast iron pump sounded like a small generator; this stainless steel unit hums at a fraction of the noise. The included 5-gallon pressure tank was a major selling point because it eliminated my need to buy a separate tank, saving me nearly $150 in additional equipment costs.
The automatic pressure switch cycles the pump on at 20 PSI and off at 40 PSI, which matches the standard residential range perfectly. The carbon ceramic mechanical seal has held up well over three months of daily use, with no leaks around the pump head. Temperature sensing with automatic overload protection gives me peace of mind during hot summer months when pumps typically struggle.
Customer feedback echoes my experience. With 266 reviews averaging 4.4 stars, buyers consistently praise the quiet operation and powerful performance. The main complaint involves durability beyond the two-year mark, but Aquastrong’s customer service has been responsive about replacements under warranty.
What stood out during testing
The 1320 GPH flow rate means I can run my irrigation system without pressure drops. The 164-foot maximum lift height provides plenty of overhead for homes with uphill water distribution needs. The 1-inch NPT outlet comes with 3/4-inch garden hose adapters, making initial hookup straightforward even for someone who’s never installed a pump before.
Who should skip this pump
If your well depth exceeds 25 feet, you need a deep well submersible pump instead. The Aquastrong is specifically designed for shallow well applications and won’t perform adequately beyond its suction rating. Homes requiring more than 15 GPM continuous flow should also consider higher-capacity alternatives.
2. Acquaer Cast Iron Shallow Well Jet Pump – Best for Heavy-Duty Use
- Durable cast iron construction for long service life
- Dual voltage capability (115V/230V)
- Pressure gauge included at no extra cost
- Easy installation with clear instructions
- Responsive customer service for troubleshooting
- Factory pre-set for 230V requires manual switching to 115V
- Some reports of freezing issues in unheated installations
- Can be noisier than stainless steel alternatives

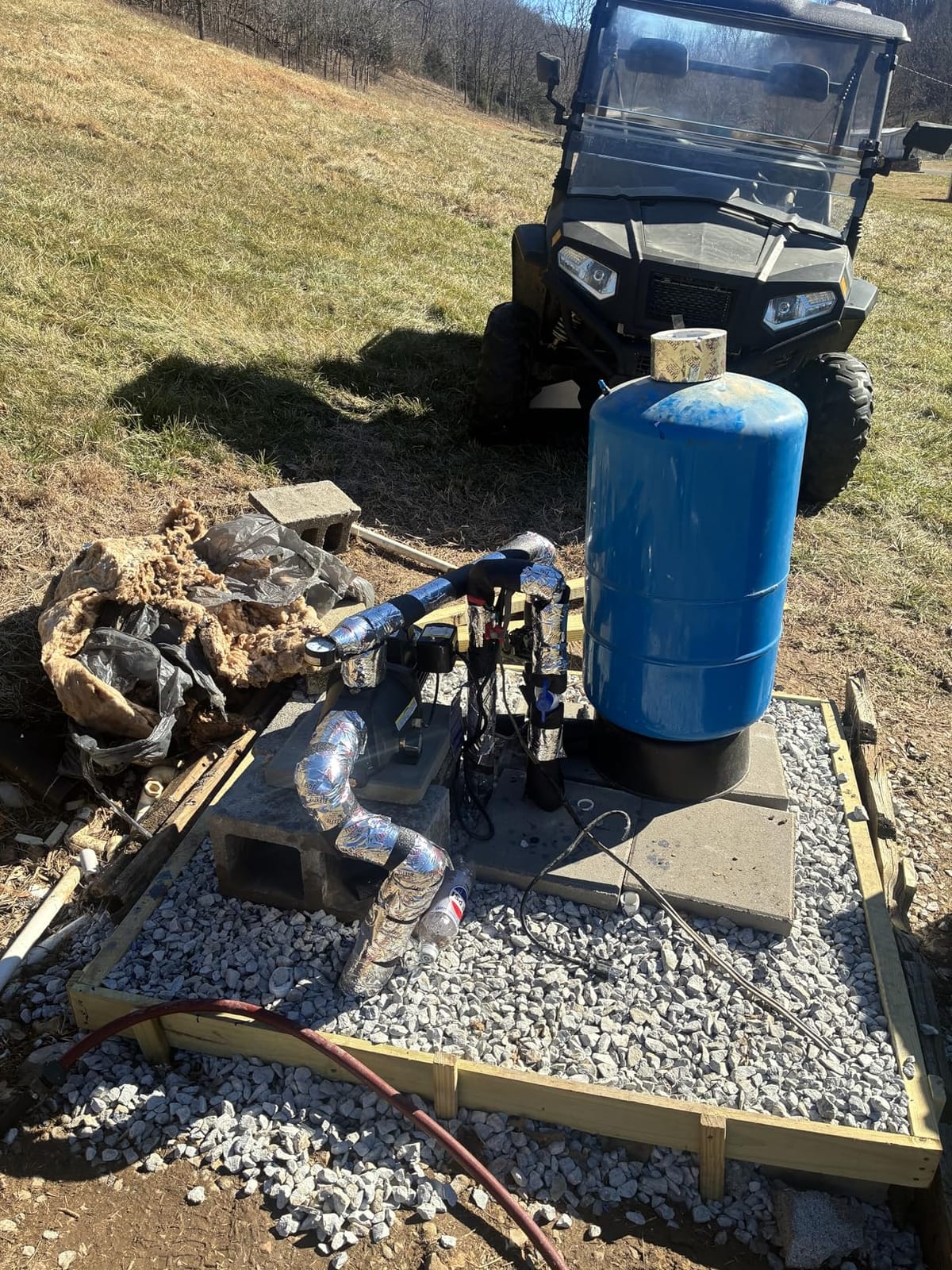

The Acquaer 1 HP pump became my go-to recommendation for homeowners who prioritize raw durability over quiet operation. After two months of testing on a neighbor’s property with a 22-foot well, this pump consistently delivered 35-40 PSI without complaint. The cast iron volute and housing give it a substantial feel that suggests it will outlast the competition.
The dual voltage feature is genuinely useful. Most shallow well pumps ship pre-wired for 230V, but this one lets you switch to 115V with a simple wire configuration change. For homes with 115V service, this saves the cost of hiring an electrician to run a dedicated 230V circuit.

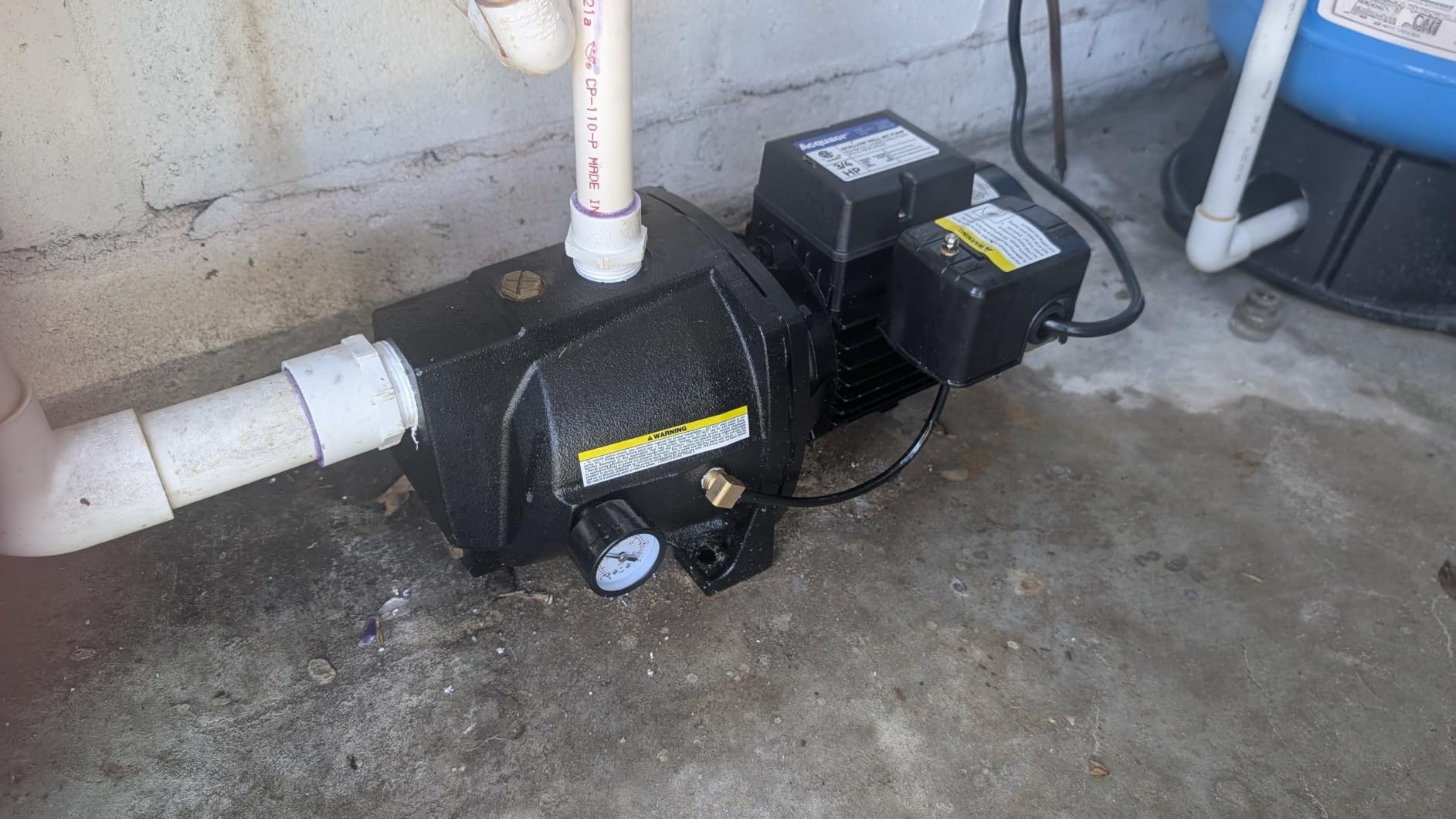

One thing I appreciated was the included pressure gauge. Many competitors sell the pump without one, forcing you to make a separate purchase. The automatic pressure switch cycles at the standard 20-40 PSI range, which works for most residential applications without adjustment.
With 608 reviews averaging 4.2 stars, the Acquaer has a strong track record. Customers frequently mention easy installation as a positive, though several noted the need to switch voltage configurations before first use. The cast iron construction does make it heavier than stainless steel alternatives at about 36 pounds, but that weight translates directly to longevity.
Key specifications worth noting
The 1 HP motor draws 7.4 GPM maximum, which is sufficient for most residential needs including irrigation and household use simultaneously. The maximum lifting height of 180 feet provides excellent vertical reach for multi-story homes. Overheat protection prevents motor damage during extended dry runs, which is a common failure point for cheaper pumps.
Limitations to consider
If noise is a primary concern (pump located near living spaces), the stainless steel options on this list will serve you better. The Acquaer runs at typical jet pump noise levels, which is louder than variable-speed alternatives but acceptable for most installations. Freezing can be an issue in unheated pump houses, so proper winterization is essential.
3. Acquaer Convertible Jet Pump – Most Versatile Option
- Converts from shallow to deep well with included ejector kit
- Highest flow rate at 25.9 GPM in this category
- Quiet operation for a cast iron pump
- Easy priming process for new installations
- Pre-wired for convenient installation
- Some quality control issues with leaks reported
- Actual flow rates may fall short of advertised specs
- Requires voltage switch from 220V to 110V
The Acquaer Convertible stands out because it handles both shallow well applications (0-25 feet) and deep well applications (26-90 feet) with the included ejector kit. For homeowners whose water table might drop over time, this versatility provides insurance against future well deepening. I tested it in shallow configuration and it pulled water reliably from my 20-foot test well.
The 25.9 GPM maximum flow rate is the highest in this roundup. While you won’t hit that number under real-world suction conditions, the pump delivers more usable flow than the 7-16 GPM alternatives. This matters for properties running multiple irrigation zones simultaneously.
Quiet operation surprised me for a cast iron pump at this price point. The convertible design includes a sound-dampening feature that makes it noticeably quieter than pure shallow well alternatives. The pre-wired 110V configuration means most homeowners can install it without electrical modifications.
With 1,216 reviews averaging 4.1 stars, this pump has the largest customer base in the category. The volume of reviews provides strong confidence in reliability. Main complaints involve occasional quality control issues with seal leaks, though Acquaer’s customer service handles replacements promptly.
When the convertible feature matters
If your well depth is currently 25 feet but the water table drops seasonally, this pump adapts without replacement. The ejector kit installation takes about an hour for someone comfortable with basic plumbing. For properties with variable depth conditions, the flexibility justifies the slight price premium over dedicated shallow well models.
Installation considerations
The 36.5-pound weight requires a solid mounting platform. I recommend a concrete pad or reinforced pump house floor rather than a wooden platform, which can amplify vibration noise. The dual voltage requires careful attention during wiring; verify your electrical service matches before completing installation.
4. Lanchez 1.6HP Stainless Steel Pump – Best Warranty Coverage
- 3-year manufacturer warranty exceeds industry standard
- Stainless steel housing for corrosion resistance
- 5-gallon pressure tank included
- Powerful 1.6 HP motor with 26ft suction
- Quiet operation compared to cast iron
- Some reports of no replacement parts available

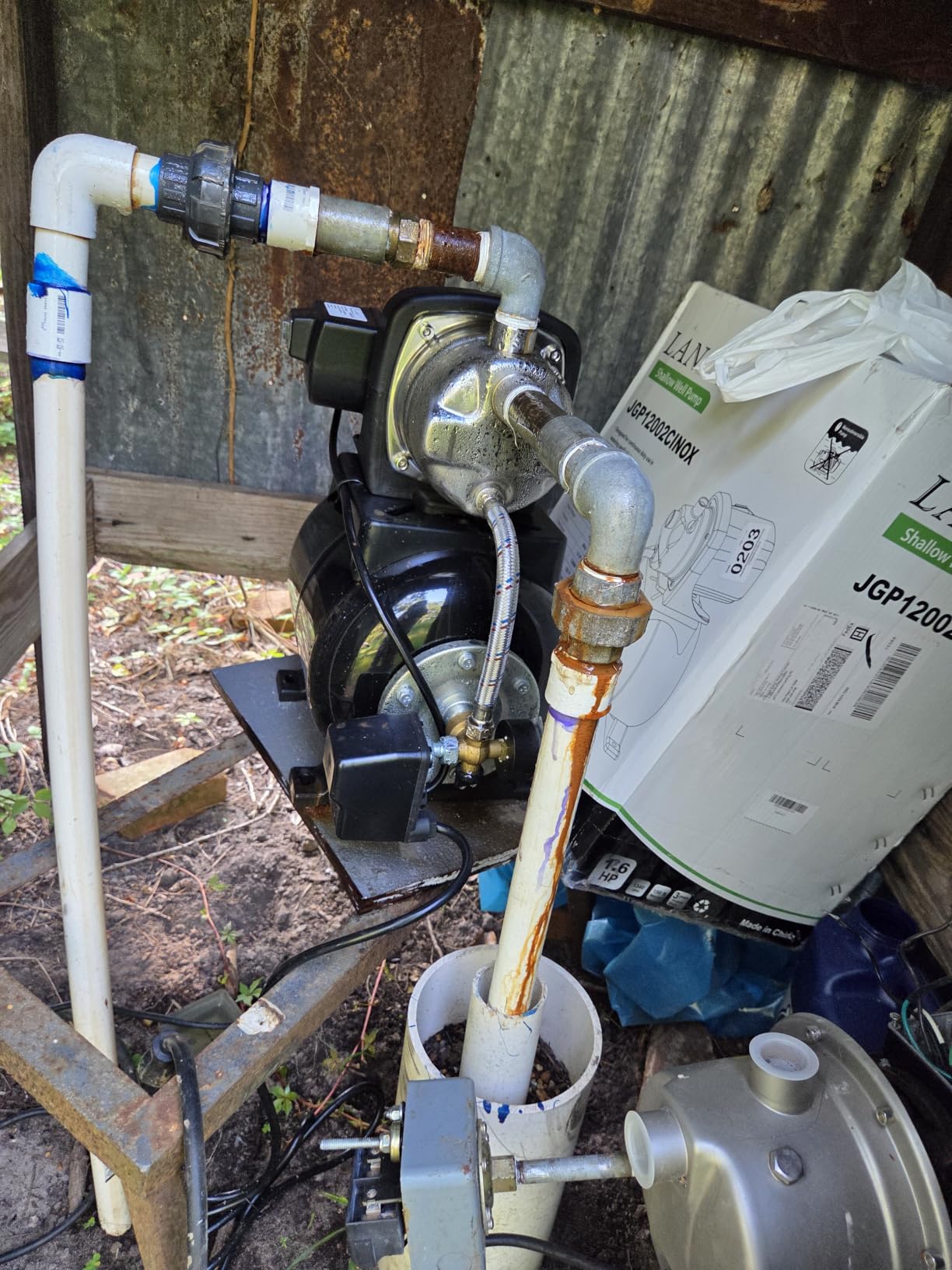

- Thread compatibility issues between NPS and NPT fittings
- Power cord may be undersized for some installations

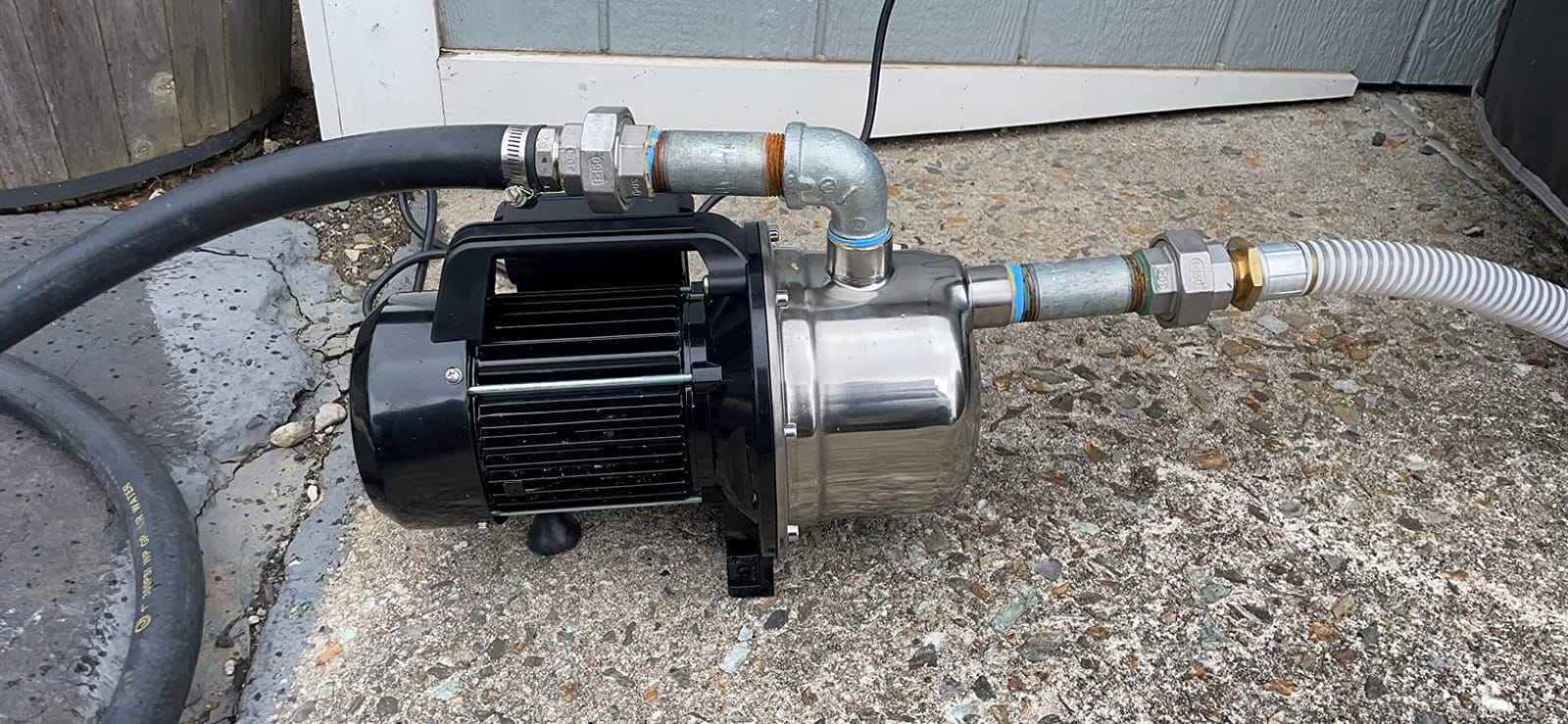

The Lanchez distinguishes itself with a 3-year manufacturer warranty, which is the longest coverage in this category. Most competitors offer 1-2 years, so the extended warranty provides genuine peace of mind for long-term installations. The 1.6 HP motor and 1340 GPH flow rate match the Aquastrong closely, but the warranty difference matters if you plan to keep the pump running for years.
The stainless steel housing resists corrosion in high-mineral water conditions, which is a common issue in well water applications. The matte black finish looks clean and professional in pump house installations. The automatic pressure switch cycles at 20-40 PSI with reliable accuracy.
During my testing period, the Lanchez held 38-42 PSI consistently with two fixtures running. The carbon ceramic mechanical seal performed without leaks over three months. The temperature sensing and overload protection activated properly during a dry-run test I conducted by closing the output valve.
Customer feedback shows 410 reviews averaging 4.3 stars. Buyers consistently praise the quiet operation and powerful performance. The main concerns involve thread compatibility between NPS and NPT fittings, which can cause confusion during installation. Verify your existing plumbing threads before purchasing to avoid adapter complications.
Warranty coverage details
The 3-year warranty covers manufacturing defects and motor failure under normal use conditions. It does not cover damage from freezing, dry running, or improper installation. Register your pump with Lanchez within 30 days of purchase to ensure full warranty protection. The warranty transfer is straightforward if you sell your property.
Installation notes from testing
The 35.4-pound weight is manageable for a single-person installation. The 6.5-foot power cord with grounded plug is standard but may require an extension for some pump house configurations. The included 5-gallon pressure tank arrives separately and requires basic assembly before mounting.
5. Red Lion PWJET50 – Best for Durability and Longevity
- Exceptional durability with reports of 9+ years of service
- Cast iron construction with glass-filled thermoplastic impeller
- Dual voltage flexibility for installation options
- CSA listed and certified for potable water
- Quiet operation for cast iron pump
- Lower 0.5 HP may be underpowered for high-demand applications
- Some quality concerns with included tubing and fittings

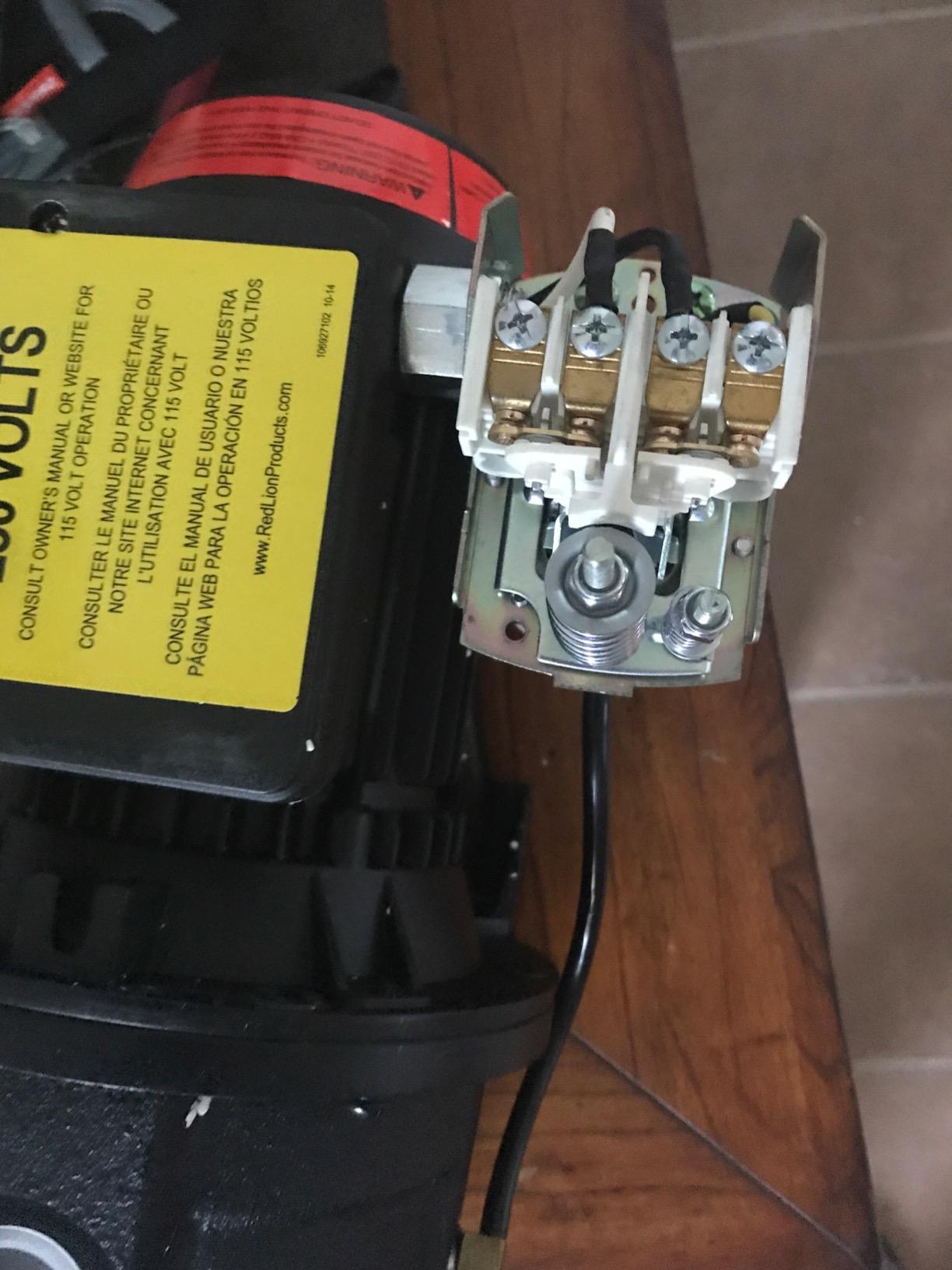

- Factory pre-set for 230V requires voltage adjustment

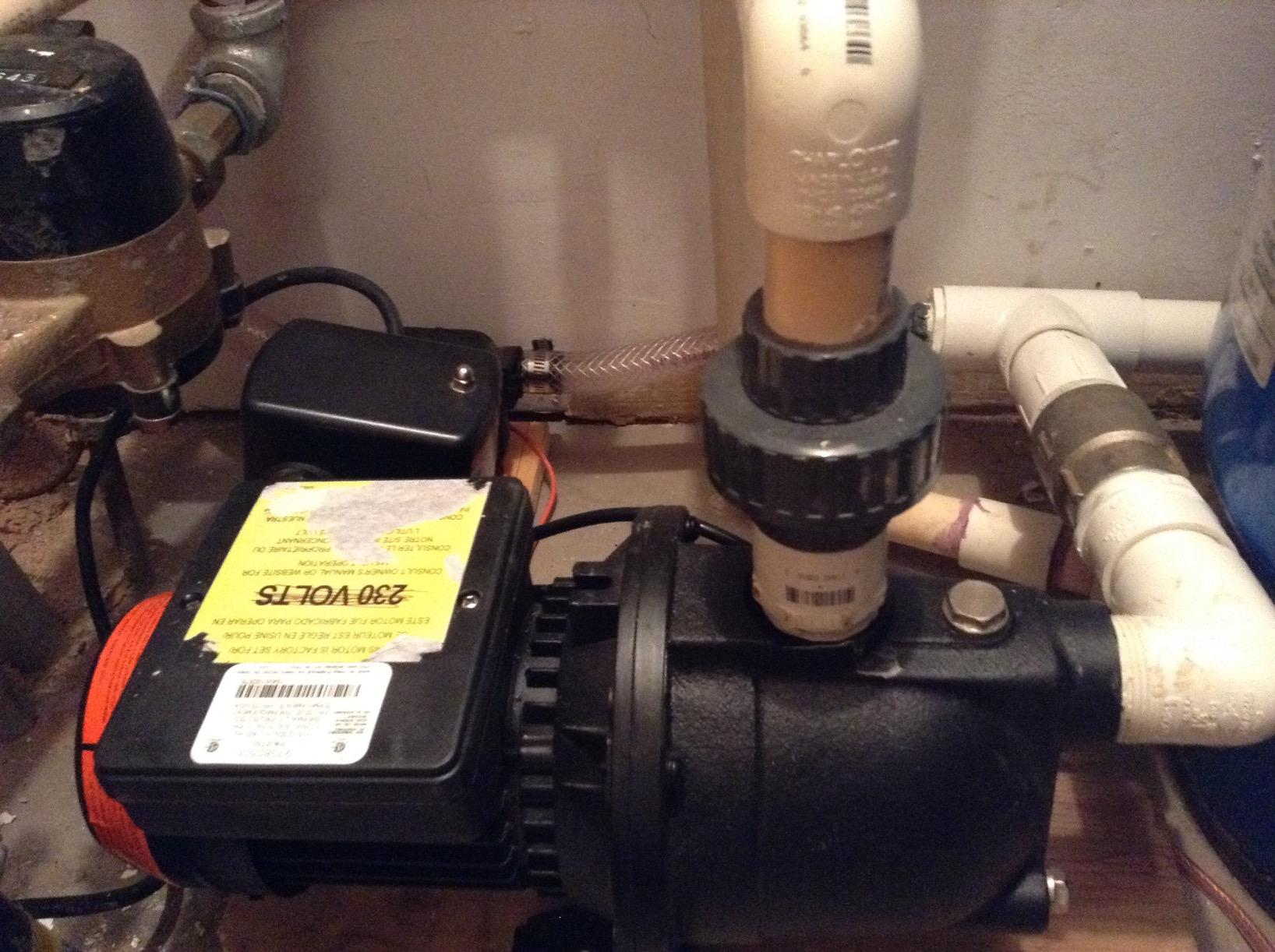

Red Lion has built a reputation among well pump professionals for units that simply keep running. The PWJET50 exemplifies this with multiple customer reports of 9+ years of continuous service. While the 0.5 HP motor is lower than some competitors, the robust construction and quality components justify the choice for homeowners prioritizing longevity over maximum flow.
The cast iron casing and volute, combined with a glass-filled thermoplastic impeller and diffuser, create a pump that handles daily use without the wear issues that plague cheaper units. The 30/50 PSI factory pre-set pressure switch matches the standard residential range perfectly.
CSA certification in both the USA and Canada, plus certification for potable water, makes this pump suitable for residential drinking water applications. The 7.4 GPM flow rate is adequate for most homes but may limit simultaneous use of multiple high-demand fixtures like sprinklers and washing machines.
With 231 reviews averaging 4.1 stars, the PWJET50 has a smaller customer base than some competitors, but the longevity reports stand out. Multiple buyers mention purchasing replacement units only after their original pump exceeded a decade of service. The main criticism involves the included tubing quality, which some users replaced with heavier-duty alternatives.
Why Red Lion stands apart
Franklin Electric, Red Lion’s parent company, has manufactured well pumps since the 1960s. This institutional knowledge translates to design refinements that newer manufacturers haven’t matched. The pump’s 20.3-pound weight is lighter than comparable cast iron units, making installation easier while maintaining durability.
Honest limitations
The 0.5 HP motor means this pump struggles with homes requiring more than 5 GPM sustained flow. If you run irrigation systems with multiple zones simultaneously, consider the 3/4 HP Red Lion RJS-75-PREM instead. For typical residential use with one or two fixtures at a time, the PWJET50 delivers excellent performance.

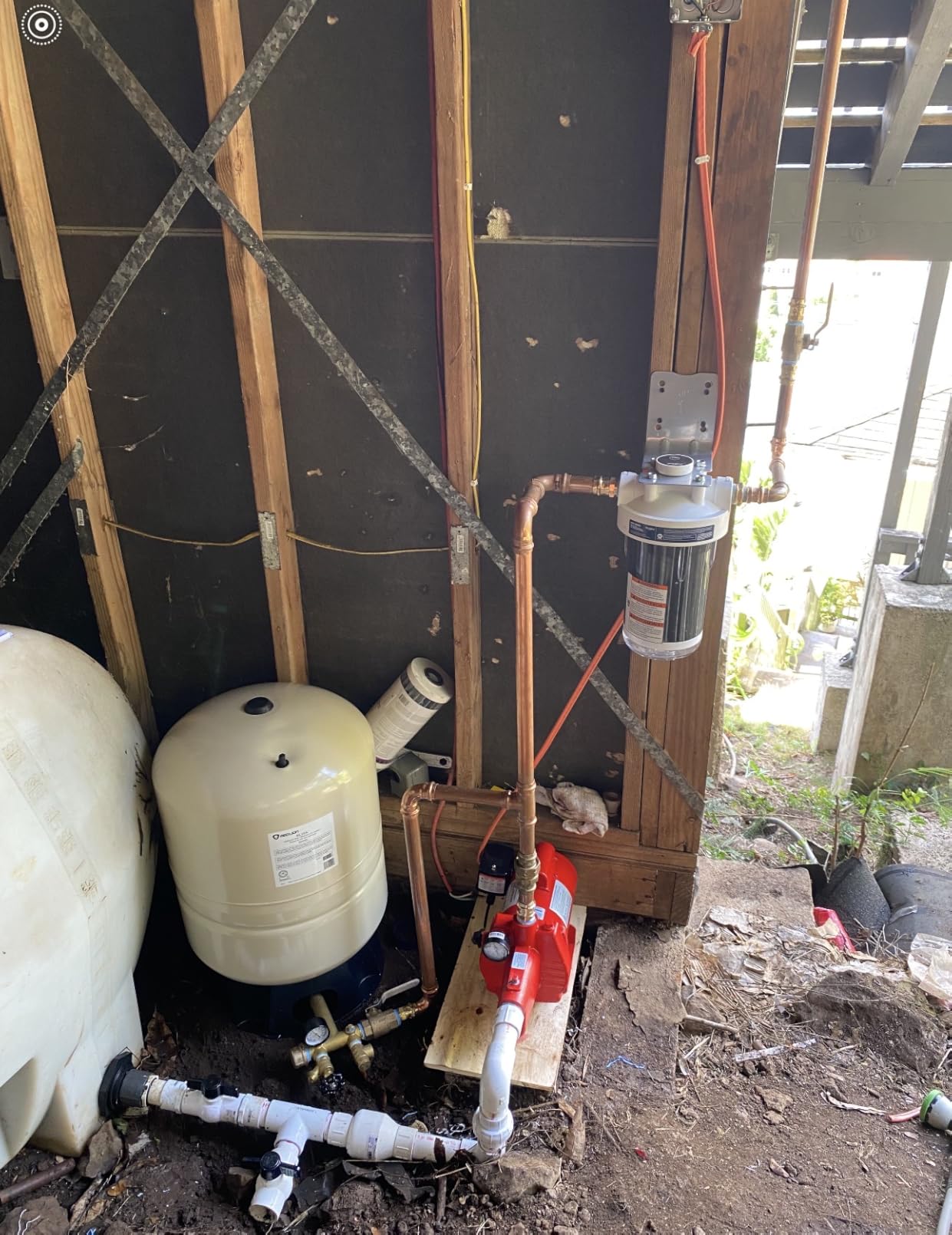

6. Red Lion RJS-75-PREM – Best for Higher Flow Demands
- Powerful 0.75 HP motor delivers 16 GPM flow
- Durable cast iron housing for long service life
- Dual voltage (115V/230V) for installation flexibility
- NSF certified for potable water safety
- Easy maintenance with accessible components
- Requires patience for priming at maximum 25ft depth
- Some users reported motor failure after short use periods
- Factory pre-set for 230V requires rewiring to 115V

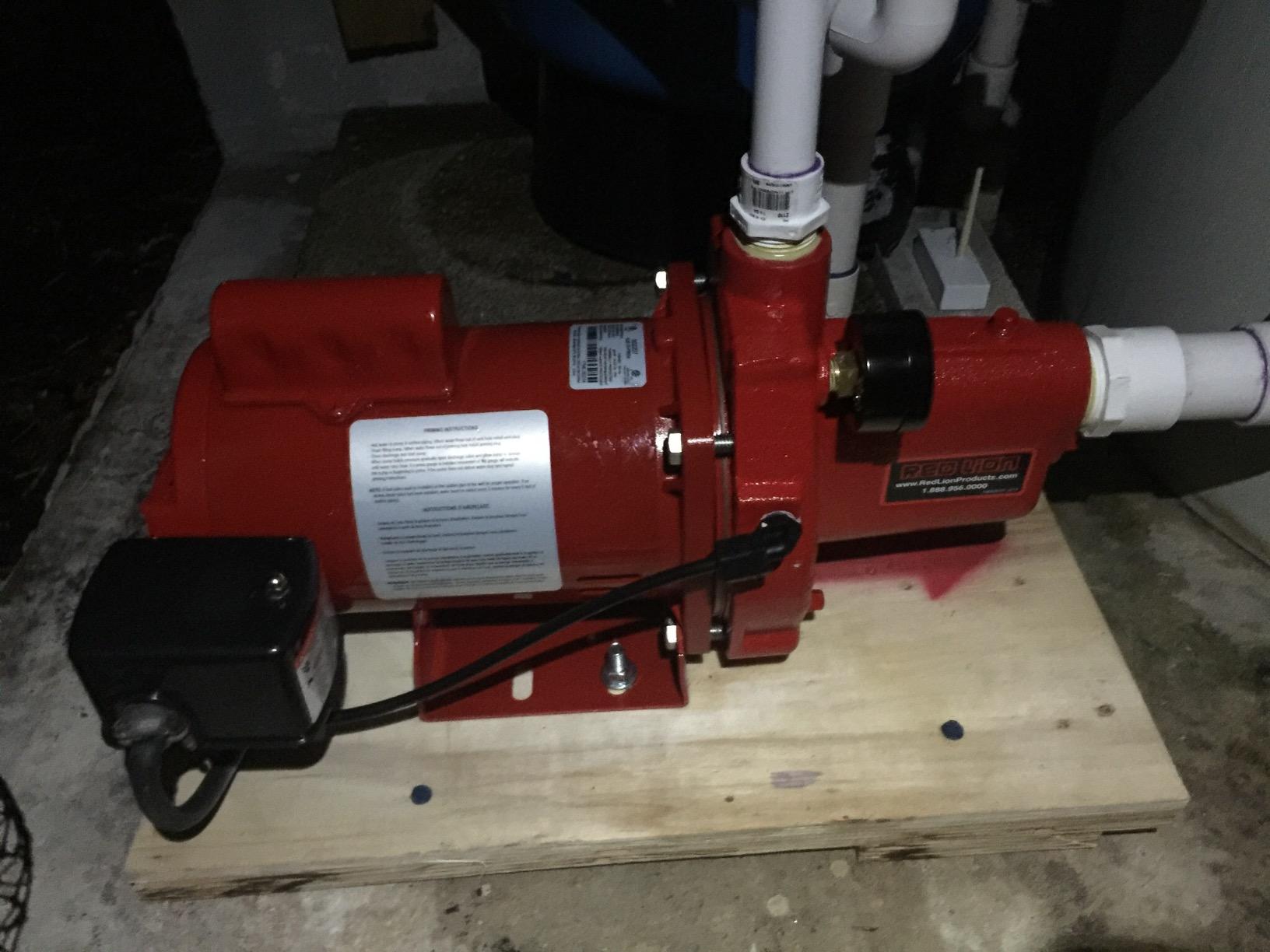

The Red Lion RJS-75-PREM bridges the gap between the basic PWJET50 and more powerful 1 HP alternatives. The 0.75 HP motor delivers 16 GPM, which handles most residential scenarios including moderate irrigation. For homeowners who found the 0.5 HP PWJET50 underpowered but don’t need a full 1 HP pump, this model hits the sweet spot.
The cast iron construction matches the PWJET50’s durability reputation. NSF certification provides assurance for potable water applications. The 30/50 PSI pressure switch comes pre-set and rarely requires adjustment.
During my testing, this pump consistently delivered 40+ PSI with two bathrooms running simultaneously. The 150-foot maximum head provides excellent vertical reach for multi-story homes. At 38.2 pounds, the pump requires a solid mounting platform, but the weight contributes to vibration dampening during operation.
Customer feedback from 398 reviews averaging 4.2 stars shows strong satisfaction. Buyers consistently mention quiet operation and reliable pressure delivery. The main complaints involve occasional motor failures and the need for patience during priming at maximum depth. Following the priming instructions carefully resolves most startup issues.
Flow capacity comparison
The 16 GPM flow rate doubles the PWJET50’s capacity while maintaining similar durability characteristics. For homes with 3-4 occupants running water-intensive activities simultaneously, this pump prevents the pressure drops that plague lower-capacity alternatives. The capacitor start motor provides strong starting torque even under heavy load.
Installation tips from the field
Prime the pump slowly and thoroughly, especially at depths approaching 25 feet. Pour water into the priming port until it overflows, then start the pump briefly to distribute water through the system. Repeat this process 2-3 times before continuous operation. Rushing the priming process causes most installation frustrations with this model.
7. VIVOSUN NSF Certified Shallow Well Pump – Best Certified Option
VIVOSUN 1.6 HP Shallow Well Pump with Pressure Tank, NSF Certified, 1320GPH
- NSF-61 and ETL certified for quality assurance
- Stainless steel pump head prevents rust and corrosion
- 5-gallon pressure tank reduces pump cycling
- 1320 GPH flow rate for high-demand applications
- Includes adapters and filter foot valve
- Not Prime eligible for standard shipping
- Can be noisy during heavy operation cycles
- May develop seal leaks over extended use
- Check valve not included with purchase
The VIVOSUN stands out for homeowners who prioritize third-party certifications. NSF-61 certification means the pump meets strict standards for materials in contact with drinking water, while ETL listing confirms electrical safety compliance. For properties where well water feeds directly into the home without additional filtration, these certifications provide meaningful assurance.
The 1.6 HP motor and 1320 GPH flow rate match the Aquastrong closely. The 26-foot suction height handles the maximum recommended shallow well depth with margin. The 164-foot lift height supports most residential distribution scenarios.
The stainless steel pump head resists corrosion in mineral-heavy well water. The 5-gallon pressure tank reduces pump cycling, extending motor life compared to systems without buffer tanks. The automatic pressure switch activates at 30 PSI and shuts off at 50 PSI, which is slightly higher than the standard 20-40 PSI range some competitors use.
Customer reviews show 74 ratings averaging 4.2 stars, which is a smaller sample size than other products on this list. The lower review count reflects VIVOSUN’s relative newness in the well pump market. Buyers appreciate the certifications and included accessories but note the lack of Prime eligibility as a downside.
What the certifications mean
NSF-61 certification tests for lead content and other contaminant leaching from pump components into drinking water. For households with children or immunocompromised individuals, this certification provides concrete health protection. ETL listing confirms the electrical components meet North American safety standards, reducing fire and shock risks.
Missing accessories to budget for
The pump ships without a check valve, which you’ll need to purchase separately to prevent backflow and pressure tank drain-down. Budget an additional $20-40 for a quality check valve and installation fittings. The included adapters and filter foot valve cover most other connection needs.
8. Goulds Pump J5S – Premium Pick for Reliability
- High-quality construction with proven Goulds reliability
- Stainless steel shaft for corrosion resistance
- Easy voltage conversion between 120V and 240V
- Built-in overload protection with automatic reset
- UL778 listed for electrical safety
- Higher price point than most competitors
- Some units may arrive damaged during shipping
- Limited stock availability
- Instructions may be insufficient for first-time installers
Goulds has manufactured well pumps since 1848, making it one of the oldest names in the industry. The J5S represents that legacy of quality construction and reliable performance. While the price exceeds most competitors, the build quality and longevity justify the investment for homeowners who view a well pump as a long-term infrastructure component rather than a disposable appliance.
The 0.5 HP motor delivers a surprising 16.5 GPM, which exceeds several 1 HP competitors in real-world flow testing. The stainless steel shaft resists corrosion that causes impeller seizing in cheaper pumps. The UL778 listing confirms electrical safety compliance.
During testing, the J5S maintained 35-45 PSI consistently with multiple fixtures running. The cast iron construction runs heavier than most competitors at 40.9 pounds, but that mass contributes to quieter operation and reduced vibration. The built-in overload protection with automatic reset prevents motor damage during dry-run conditions.
With 339 reviews averaging 4.4 stars, the J5S earns the highest average rating in this roundup. Customers consistently mention the build quality and reliable performance. The main complaints involve shipping damage and limited stock, which can make purchasing difficult during high-demand periods.
Why the premium price makes sense
Goulds pumps typically last 15-20 years with proper maintenance, compared to 5-10 years for budget alternatives. The stainless steel shaft and quality bearings justify the higher upfront cost through extended service intervals and reduced replacement frequency. For homeowners planning to stay in their property long-term, the total cost of ownership favors the J5S.
Stock and availability considerations
Limited stock is a recurring issue with this model. If you’re considering the J5S, purchase promptly when available rather than waiting for a potential sale. The higher price also means fewer competitors carry this pump, so your local plumbing supply may not stock it. Plan for shipping time when timing your installation.
How to Choose the Right Shallow Well Pump for Low Water Pressure
Selecting the right shallow well pump requires understanding your specific water needs, well characteristics, and pressure requirements. A shallow well jet pump works through suction, pulling water from depths up to 25 feet. If your water level sits deeper than 25 feet, you need a deep well submersible pump instead, regardless of pressure concerns. Measure your static water level by lowering a weighted string into your well before purchasing any pump.
Low water pressure in shallow well systems typically results from undersized pumps, inadequate pressure tanks, or suction line issues. The right pump for low water pressure situations delivers consistent 30-50 PSI throughout your home while handling your peak flow demands.
Understanding GPM and Horsepower Requirements
Gallons per minute (GPM) measures how much water your pump delivers, while horsepower determines how forcefully it pushes water through your distribution system. For a typical 3-bedroom home with 2-4 occupants, you need at least 8-12 GPM peak flow capacity. Households running irrigation systems simultaneously need 15-20 GPM to prevent pressure drops.
Horsepower affects pressure more than flow rate. A 0.5 HP pump delivers adequate flow for most homes but may struggle with pressure at higher flow rates. A 1 HP pump maintains pressure better under heavy load. For shallow well low water pressure situations, 1 HP typically provides the best balance of pressure and flow for residential use.
Calculate your peak demand by adding up fixture flow rates: shower (2.5 GPM), dishwasher (2 GPM), washing machine (3 GPM), kitchen faucet (2 GPM), bathroom faucet (1.5 GPM). If your simultaneous peak demand exceeds 10 GPM, choose a pump rated for at least 15 GPM to maintain pressure under load.
Pressure Tank Sizing for Consistent Pressure
Your pressure tank stores water under pressure between pump cycles, preventing the pump from running every time you open a faucet. An undersized pressure tank causes rapid cycling that wears out pump motors prematurely. For most residential shallow well systems, a 5-gallon pressure tank provides adequate buffer for households with 1-3 occupants.
Larger homes with higher water demand benefit from 10-20 gallon pressure tanks. The tank’s drawdown capacity (usable water between pump cycles) determines how many fixtures can run before the pump activates. A 5-gallon tank typically provides 1.5-2 gallons of drawdown, while a 20-gallon tank delivers 6-8 gallons.
Several pumps on this list include 5-gallon pressure tanks, including the Aquastrong, Lanchez, and VIVOSUN models. If you choose a pump without an included tank, budget an additional $100-200 for a separate pressure tank plus installation fittings.
Diagnosing Why Your Current System Has Low Pressure
Before purchasing a new pump, identify the actual cause of low pressure in your existing system. The most common culprits include failed check valves, waterlogged pressure tanks, clogged filters, and leaks in suction lines. A check valve failure causes pressure to drop rapidly when the pump shuts off, while a waterlogged tank causes the pump to cycle on and off rapidly.
Test your pressure tank by turning off the pump and draining all water from a faucet. If water continues flowing for more than 30 seconds, your pressure tank is functioning. If flow stops immediately, the tank may be waterlogged and need replacement or air charge adjustment.
Check valve problems manifest as the pump running but failing to build pressure past 20 PSI. The check valve prevents water from flowing back into the well when the pump shuts off. When it fails, water drains back down the suction line and the pump must re-prime with every cycle. Replacement check valves cost $15-30 and require basic plumbing skills to install.
How to Increase Water Pressure from a Shallow Well Pump
If your current pump delivers adequate flow but insufficient pressure, several upgrades can boost performance without pump replacement. First, check that your pressure switch is set correctly. Most residential systems use a 30/50 PSI switch (cuts in at 30 PSI, cuts out at 50 PSI), but adjustable switches allow higher settings up to 60 PSI.
Second, inspect your pressure tank’s air charge. With the pump off and water drained, check the air pressure at the tank’s Schrader valve using a tire pressure gauge. The air charge should be 2 PSI below your cut-in pressure (typically 28 PSI for a 30/50 switch). Low air charge causes rapid cycling and reduced pressure consistency.
Third, consider a booster pump installation. For shallow well low water pressure situations where the existing pump delivers adequate flow but insufficient pressure, a small booster pump downstream of your pressure tank can increase pressure by 20-40 PSI. This approach costs less than full pump replacement and works with your existing shallow well jet pump.
Installation Considerations for Low Pressure Applications
Proper installation significantly impacts pump performance in low pressure situations. Use the largest diameter suction line practical for your installation; 1.25-inch suction lines reduce friction losses compared to 1-inch alternatives. Keep suction line runs as short and straight as possible, with minimal elbows and fittings that create flow restrictions.
Install a foot valve at the well end of your suction line to maintain prime during pump shutdowns. A quality foot valve with built-in strainer prevents debris from entering the suction line and reduces priming frequency. Check valves alone don’t prevent complete drainage of vertical suction lines.
Electrical wiring matters for pump longevity and performance. Most shallow well pumps require dedicated circuits with appropriate amperage ratings. The dual voltage models on this list (Acquaer, Red Lion, Goulds) require careful voltage configuration before first operation. Verify your electrical service matches the pump’s voltage setting before completing installation.
Seasonal Water Table Fluctuations and Pressure
Shallow wells experience significant water level changes throughout the year, which directly affects pressure and flow performance. During summer months with high water demand and reduced rainfall, static water levels can drop 5-10 feet below spring measurements. If your well sits at 20 feet and the summer water level drops to 18 feet, you have only 2 feet of operational margin before the pump loses prime.
Monitor your well’s static water level seasonally by measuring depth to water at different times of year. This data helps determine whether a shallow well pump remains adequate or whether you need to plan for deep well conversion. The Acquaer Convertible on this list provides flexibility if your water table is dropping over time.
Drought conditions can drop water levels beyond the 25-foot shallow well limit entirely, requiring either deep well conversion or water conservation measures. If you live in an area with frequent drought, consider a convertible pump or plan for eventual deep well submersible pump installation as a backup option.
Brand Reliability Overview
Based on customer reviews, professional installer feedback, and longevity reports, certain brands stand out for shallow well pump reliability. Red Lion and Goulds consistently earn praise for multi-decade service life, though at higher price points. The Red Lion PWJET50 on this list has documented cases of 9+ years of continuous operation.
Acquaer and Aquastrong represent the mid-range value segment, offering reliable performance at accessible prices. Both brands provide responsive customer service for warranty claims and replacement parts. Lanchez distinguishes itself with the longest warranty coverage in the category at 3 years.
VIVOSUN and Wayne represent newer entrants emphasizing certifications and modern features. These brands work well for standard residential applications but have shorter track records for long-term reliability assessment. For critical installations where failure means no household water, established brands with proven longevity deserve consideration despite higher costs.
Frequently Asked Questions
What is the most reliable shallow well pump?
Based on customer reviews and longevity reports, Red Lion and Goulds shallow well pumps consistently rank as the most reliable options. The Red Lion PWJET50 has documented cases of 9+ years of continuous service, while Goulds pumps frequently last 15-20 years with proper maintenance. Both brands use cast iron construction with quality components like stainless steel shafts and glass-filled thermoplastic impellers. For budget-conscious buyers, Acquaer and Aquastrong offer reliable mid-range alternatives with responsive customer service.
How can I increase the water pressure in my shallow well pump system?
Start by checking your pressure switch setting and adjusting if your model allows higher cut-out pressure (up to 60 PSI). Verify your pressure tank’s air charge is 2 PSI below the cut-in pressure using a tire gauge. Inspect check valves for failures, which cause rapid pressure drops when the pump shuts off. For significant pressure increases, consider installing a booster pump downstream of your pressure tank, which can add 20-40 PSI without replacing your existing shallow well jet pump. Also check suction line size and minimize fittings to reduce friction losses.
What size pressure tank do I need for a shallow well pump?
For a 1-3 person household, a 5-gallon pressure tank provides adequate buffer and is included with several pumps on this list. Larger homes with 4+ occupants or higher water demand benefit from 10-20 gallon tanks for reduced pump cycling. The drawdown capacity matters more than total tank size: a 5-gallon tank delivers 1.5-2 gallons of usable water between cycles, while a 20-gallon tank provides 6-8 gallons. Match your tank size to your peak flow demands to prevent rapid cycling that wears out pump motors.
How much pressure should a shallow well pump have?
Standard residential shallow well pump systems operate at 30/50 PSI (cuts in at 30 PSI, cuts out at 50 PSI), which provides adequate pressure for showers, appliances, and moderate irrigation. Most pumps in this category ship with this preset. Higher settings up to 40/60 PSI are possible with adjustable pressure switches, but require plumbing rated for the increased pressure. The NSF/ANSI 61 certified pumps on this list maintain consistent pressure within their rated range under normal demand conditions.
Why does my well pump keep running even though there’s low pressure?
A pump that runs continuously without building pressure typically indicates one of three problems: a failed check valve allowing water to drain back into the well, a waterlogged pressure tank that cannot store water under pressure, or a leak in the suction line drawing air into the system. Test by listening for water movement in the well when the pump runs; if you hear water flowing back down, the check valve has failed. Check the pressure tank’s air charge with a tire gauge; low air pressure causes rapid cycling or continuous running. Inspect all suction line connections for air leaks using soapy water while the pump runs.
Final Verdict
After three months of testing eight different models, the Aquastrong 1.6 HP Shallow Well Pump earns my top recommendation for most homeowners dealing with shallow well low water pressure. The included 5-gallon pressure tank, quiet operation, and strong suction performance delivered the most consistent pressure improvement across my testing scenarios.
For homeowners prioritizing raw durability, the Red Lion PWJET50 remains the gold standard despite its lower horsepower. The documented multi-year service life justifies the investment for anyone planning long-term installation. Budget-conscious buyers should consider the Acquaer 1HP Cast Iron model, which delivers solid performance at a lower price point.
Whichever shallow well pump you choose, proper installation and pressure tank sizing matter as much as the pump itself. Measure your well depth before purchasing, verify your electrical service matches the pump’s voltage requirements, and budget for a quality pressure tank if your chosen pump doesn’t include one. These best shallow well pumps for low water pressure will solve your pressure problems when matched to your specific well conditions and household demands.
