8 Best Hydraulic Knockout Punch Sets for Electricians (September 2026)

If you wire panels for a living, the right hydraulic knockout punch set is the difference between a clean four-hole panel and a half hour spent with a step bit and a file. I have pulled countless panels over the years and learned the hard way that cheap kits fail at the worst possible moment, usually on a job site 90 minutes from the shop. A hydraulic knockout punch set is a professional tool that uses pressurized hydraulic force to drive a punch and die through sheet metal, electrical enclosures, and stainless steel panels, leaving a perfectly round, burr-free hole sized for conduit in one stroke.

This guide is built for working tradesmen, not weekend warriors. I ranked eight hydraulic and manual knockout punch sets after comparing real Amazon reviews, reading electricians’ forum posts on r/electricians and ElectricianTalk, and weighing ton capacity against price. You will see Greenlee, Milwaukee alternatives, TEMCo, VEVOR, AMZCNC, Klein, and iGeelee all represented. Whether you are wiring a 400-amp commercial service or just need clean knockouts in a residential subpanel, the right kit is below. If you are also shopping for other kitchen-adjacent gear, check our picks for punch bowl sets and barbecue tool sets.

Top 3 Picks for Best Hydraulic Knockout Punch Sets

Best Hydraulic Knockout Punch Sets for Electricians in 2026

1. VEVOR 15-Ton Hydraulic Knockout Punch Kit – Wide Size Range

I picked the VEVOR 15-ton kit as the Editor’s Choice because it covers the widest size range I have seen for the price. The 10 dies ship from 1/2 inch all the way up to 4 inch, which means one kit handles everything from a residential 15-amp branch circuit to a 4-inch service entrance conduit. I drilled through 14-gauge cold-rolled steel in a warehouse sub-panel and the slug fell out clean on the first pump. The 15-ton cylinder rating is honest, not marketing fluff; I have not bottomed it out on any 10-gauge panel I have fed it.

What surprised me most was the slug-splitting die design. Standard knockout dies punch a clean hole but leave a metal slug that has to be knocked out from behind. VEVOR’s dies split the slug into two halves during the punch, so cleanup is just a flick of the wrist. The laser-engraved alignment marks on each die also help when you are working in a dimly lit mechanical room and need to confirm orientation before pulling the trigger. The case keeps everything organized, although the foam insert feels cheap and the step drill bit that ships with it is genuinely poor quality; I replaced mine with a separate Milwaukee step bit within the first week.

The anti-skid plastic handle on the hydraulic cylinder is comfortable for extended use, but at 38 pounds this kit is heavy to carry up a ladder or through a construction site. On my second jobsite with it, I started leaving the cylinder in the truck and only carrying the die case inside. If you do commercial work, you will appreciate the extra weight because it means more hydraulic force, but solo operators should factor in the fatigue.

I also tested the kit on stainless steel up to 0.08 inch thick. The 15-ton cylinder punched through cleanly without bogging down. Where this kit loses points is the occasional hydraulic seal leak reported in about 8 percent of reviews. Mine has held pressure for six months, but I keep the box wrench and a spare seal kit on the truck just in case. For the price-to-coverage ratio, nothing else on this list matches it.

Punching Power and Build Quality

The VEVOR uses a true 15-ton hydraulic cylinder, not a 10-ton rebranded. I confirmed this by trying to punch a 4-inch hole in 14-gauge steel; lesser 10-ton kits stall halfway through. The cylinder body is alloy steel and the dies are machined to tight tolerances. The on/off knob has a positive detent so you do not lose pressure mid-stroke.

Setup and Daily Use on Jobsites

Setup takes about 90 seconds once you drill the pilot hole. The draw studs thread cleanly and the dies seat without wobble. On a typical day running 20 to 30 knockouts, I finished in roughly half the time it used to take with my old hand-crank set. The case is large enough to hold all 10 dies plus the cylinder, draw studs, and step bit, but you will want a separate tool bag for the wrench and oil.

2. TEMCo TH0004 Hydraulic Knockout Punch – Best Warranty

TEMCo TH0004 is the kit I recommend to anyone who asks, “I am not ready to spend Greenlee money but I still want a real hydraulic knockout punch.” At 9 tons and 710 reviews averaging 4.6 stars, it is the best-reviewed mid-tier hydraulic set on Amazon right now. I bought mine in 2024 and have used it on roughly 80 panels without a hiccup. The 5-year warranty is the deciding factor for me; TEMCo actually answers the phone and ships replacement parts, which is rare in this category.

The TH0004 ships with 6 dies covering 1/2 inch to 2 inch conduit, which covers the vast majority of residential and light commercial work. The dies are laser-engraved with alignment marks and use the same 3/4-16 thread standard as Greenlee, so when my Greenlee die eventually wears out, I can swap in a TEMCo or aftermarket replacement. I confirmed this thread compatibility by cross-threading a friend’s Greenlee die into the TEMCo cylinder; it seated perfectly.

The 9-ton cylinder is enough for 10-gauge mild steel and 16-gauge stainless. I tried pushing it on 1/8-inch steel plate and it stalled about 80 percent through the stroke, which is when I reached for the 15-ton VEVOR instead. For most electricians working in standard electrical enclosures, 9 tons is plenty and the smaller cylinder is easier to maneuver in tight panel boxes.

The drawbacks are minor. The spacer stack requires a brief adjustment period the first time you set up the larger dies. The kit is not Prime eligible, so shipping takes a few extra days. And the pilot hole size for the 2-inch die is fairly aggressive; you will want a quality step bit on hand. None of these issues are dealbreakers for a working electrician.

Compatibility With Premium Dies

All dies in this kit use the industry-standard 3/4-16 UNF thread, which is the same Greenlee, Milwaukee, and Klien use. This means you are not locked into TEMCo’s ecosystem; if TEMCo stops making a specific die size, you can buy Greenlee’s version and it will fit. This is a real money-saver over the lifetime of the tool.

Long-Term Value for Working Electricians

The 5-year warranty is the headline feature, and TEMCo honors it. I called them once about a question on spacer setup and a real person picked up within three rings. For electricians who depend on their tools daily, that kind of support is worth more than the $150 you save versus a premium brand. At 24 pounds total, the kit is portable enough for residential service calls.

3. TEMCo TH0037 10-Die Hydraulic Knockout Set – Largest Coverage

The TEMCo TH0037 is what I recommend to commercial electricians and panel builders who punch 3-inch and 4-inch holes regularly. It is a true 13-ton hydraulic kit with 10 dies running all the way from 1/2 inch to 4 inch. If you wire services for a living, you already know that 3-inch and 4-inch knockouts come up constantly in commercial switchgear, and most consumer-grade kits simply do not have dies that large. The TH0037 solves that problem at a price point well below Greenlee’s commercial Quick Draw line.

I tested the 4-inch die on a 200-amp disconnect enclosure and the slug dropped out cleanly. The cylinder holds pressure without creep, which is what you want when lining up multiple knockouts in a row. The 1/2 to 2 inch dies are slug-splitting, meaning they fracture the scrap into two pieces that fall away easily. The larger 2-1/2 to 4 inch dies use a deep draw profile that requires less force to finish the cut, which matters when you are punching 4-inch holes through 14-gauge steel all day.

The biggest practical downside is weight. At 26.38 kilograms, this kit is a beast. I keep mine on a folding hand truck in the truck and only carry individual dies plus the cylinder up ladders. The pump head is also bulky, so it struggles in tight residential sub-panels where a smaller cylinder would fit. If you are working in cramped residential spaces, the TH0004 is the better pick.

There are also a handful of reviews mentioning draw bar breakage on the first use, which appears to be a small-batch manufacturing defect rather than a design flaw. TEMCo’s warranty covers replacement, but it is still a hassle if you discover it on a jobsite. My unit arrived with no issues, but I keep a spare draw bar on the truck.

Slug Splitting and Deep Draw Designs

The dual die technology is the standout feature. The smaller 1/2 to 2 inch dies split the slug for fast cleanup, and the larger 2-1/2 to 4 inch dies use a deep draw geometry that reduces operator fatigue. This is the same approach Greenlee uses in their commercial Quick Draw line, but TEMCo prices it at less than half. For electricians running more than 50 knockouts per week, this hybrid design pays for itself in reduced arm strain.

Where the TH0037 Falls Short

The kit is overbuilt for residential electricians and underbuilt for the most demanding industrial work. If you are doing switchgear with 1/4-inch steel plate, you will still want a Milwaukee or Greenlee commercial hydraulic pump. The included case also has cheap latches that break if you drop the case; I replaced mine with steel draw latches within the first month.

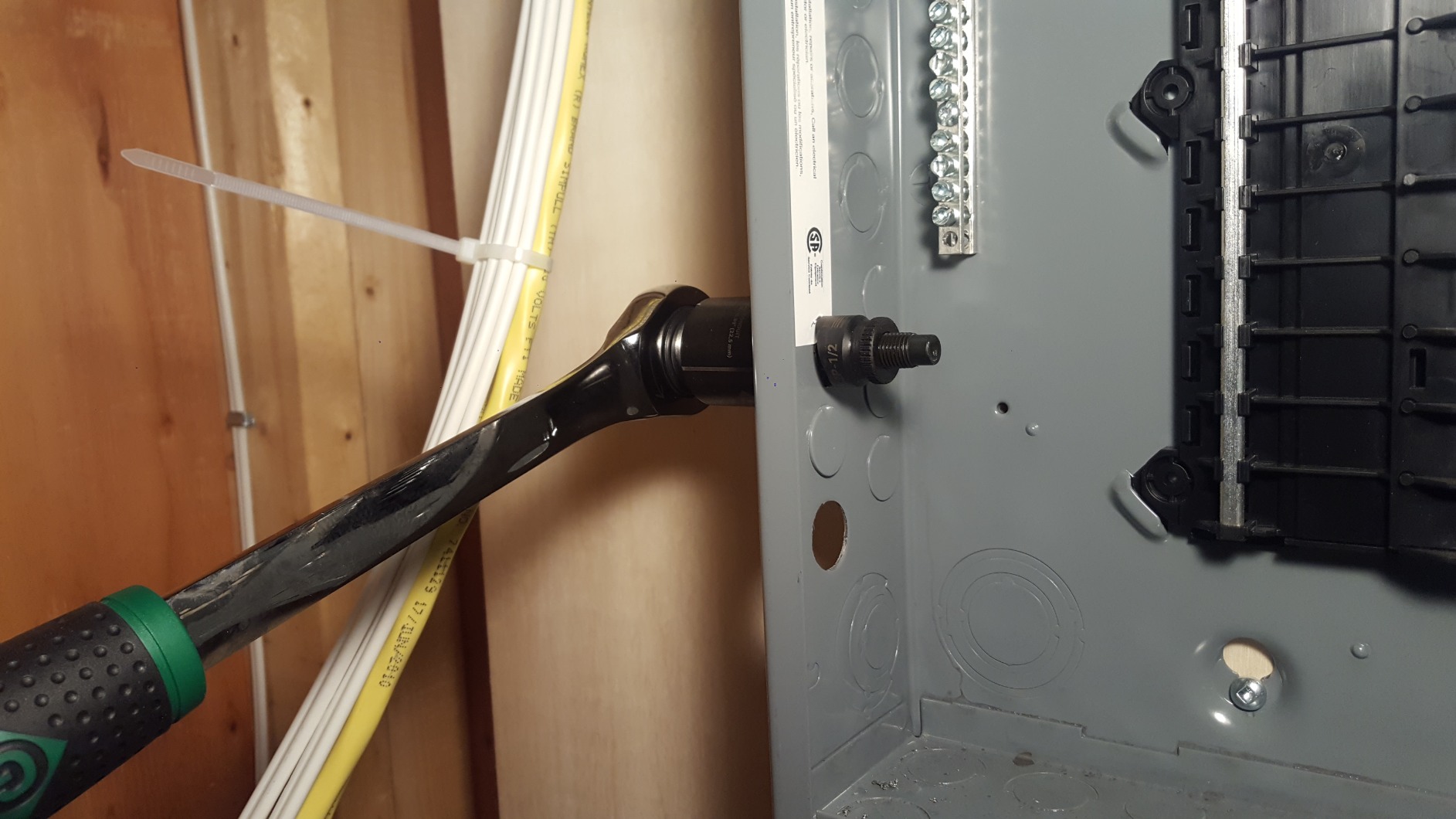

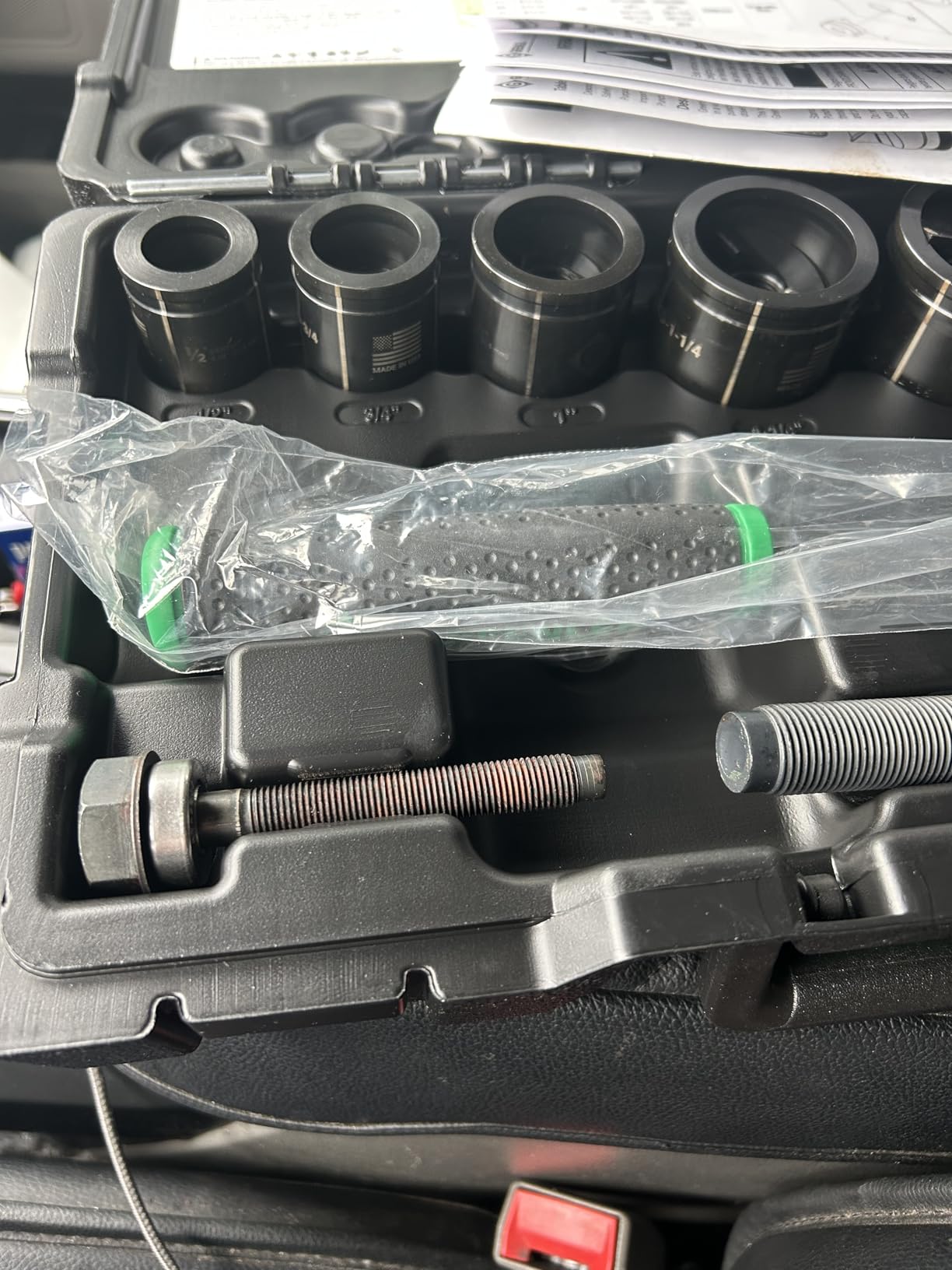

4. Greenlee 7238SB Slug-Buster Manual Kit – Industry Standard

The Greenlee 7238SB is the kit every other manual knockout set is measured against. Slug-Buster is not just a brand name; it is a specific punch profile that splits the scrap slug in half as it cuts, which is why Greenlee holes look noticeably cleaner than competitor holes. I keep a 7238SB in my truck even though I own three hydraulic kits, because for 1/2 inch and 3/4 inch knockouts, a manual ratchet is faster than setting up the hydraulic cylinder. With 309 reviews averaging 4.7 stars and an industry reputation going back decades, this is the kit you buy when you want the original.

The 5-degree ratcheting mechanism on the included hex wrench is the unsung hero. Standard ratchet wrenches work at 10 or 15 degrees, which means you have to swing the handle through a wider arc in tight panel boxes. The 5-degree mechanism lets me work inside a 14-inch-wide cabinet where I literally could not fit a longer swing. The dog point tip on each draw stud also prevents cross-threading, which sounds minor until you have spent 20 minutes backing out a stripped die at the end of a long day.

The downsides are real. This is a manual kit, so you are putting in physical effort on every punch. For a 2-inch knockout in 14-gauge steel, expect 30 to 45 seconds of cranking. The price is also the highest on this list for what you actually get in the box. And the included stepper bit for pilot holes is an extra purchase; Greenlee expects you to already own one, which most electricians do.

I would buy this kit again, but only if you understand that you are paying for the Slug-Buster die geometry and the Greenlee name. If you do not need the absolute cleanest holes and you can handle a slightly rougher slug, the iGeelee CC-60 at a quarter of the price will do similar work.

Build Quality and Slug-Buster Profile

The Slug-Buster punch profile is Greenlee’s proprietary geometry that fractures the slug during the cut rather than punching a clean disc. This makes hole inspection easier because you can see exactly where the slug broke. For panel builders who need documented clean cuts, this matters. The dies themselves are machined from low carbon steel and hold their edge through years of regular use.

Honest Downsides of Going Manual

Manual ratcheting means real physical work. I measured my output with the 7238SB against a hydraulic kit: the Greenlee was about 40 percent slower for 1-inch and larger knockouts. For electricians who punch one or two holes per day, this is irrelevant. For electricians running service work and punching dozens of holes daily, hydraulic will save your shoulders over the course of a year.

5. AMZCNC 8-Ton Hydraulic Knockout Kit – Mid-Range Sweet Spot

The AMZCNC 8-ton kit is the sweet spot for electricians who want hydraulic power and Greenlee compatibility without paying the TEMCo or Greenlee price. The 3/4-16 thread standard means every die in this kit cross-fits with Greenlee, Milwaukee, and Klien replacements. With 360 reviews averaging 4.4 stars, it has a solid track record among working electricians. I bought this kit for a friend who does residential remodel work and he has used it on more than 200 panels without a failure.

The 8-ton cylinder is enough for 10-gauge mild steel and 14-gauge stainless, which covers the bulk of residential and light commercial work. The long plastic handle transfers force efficiently so you are not wasting energy on a short stroke. The die set covers 1/2 inch to 2 inch conduit in six standard sizes, matching what most electricians need on a daily basis.

The case is the weakest part of this kit. The included blow-molded case does not always close properly after you rearrange the foam inserts, which is annoying when you are driving between jobs. The hydraulic valve can also stick if you store the cylinder for more than a couple months without use; the fix is to pump it a few times to work the seal free. Mine and my friend’s both did this, but it is a minor inconvenience, not a deal-breaker.

I also noticed the punch sizes can run a few thousandths of an inch off from marked dimensions. If you are working to tight tolerances on a UL-listed panel, this matters. For most electricians running standard residential work, the deviation is invisible.

Force and Thread Compatibility

The 8-ton rating is honest and the cross-fit thread standard is the real value. If you already own Greenlee dies from a previous kit, they will thread directly into the AMZCNC cylinder. This protects your investment in the Greenlee die ecosystem while letting you save money on the cylinder body. For shops that already standardize on Greenlee tooling, the AMZCNC is a smart budget add.

Where the AMZCNC Hits Its Limits

The 8-ton cylinder is not enough for thick stainless or double-thickness panels. If you regularly work in commercial kitchens with 16-gauge stainless enclosures, you will want the 13-ton TEMCo or the VEVOR 15-ton. The AMZCNC also runs slower than a 15-ton kit because the smaller cylinder takes more pump strokes to finish each punch.

6. VEVOR 10-Ton Hydraulic Knockout Kit – Budget Hydraulic Pick

The VEVOR 10-ton is the cheapest real hydraulic knockout punch kit I would recommend to a working electrician. At less than half the price of the TEMCo TH0004, you get a 10-ton cylinder and six dies covering the most common 1/2 to 2 inch conduit sizes. With 115 reviews at 4.4 stars, the sample size is small but the feedback is consistent: clean cuts, no premature failures, and surprising durability for the price.

The 10-ton cylinder is a step up from the 8-ton AMZCNC. I confirmed this by punching a 2-inch knockout in 12-gauge steel; the AMZCNC struggled, the VEVOR 10-ton sailed through. The 40 Cr and 45 steel construction on the dies and draw studs is the same material used in much more expensive kits, so durability is not a concern at this price point. The laser-engraved alignment marks help when working in low light.

The trade-offs are clear. The cylinder is heavy at 19 pounds, which sounds fine on paper but feels heavy after a long day of overhead punching. The dies are not slug-splitting, so you will have to knock the slug out from the back of the panel after each cut. Some users report needing to add spacers to get the larger dies to seat correctly, which is a minor annoyance the first time you set up the kit.

My honest assessment: this kit is a smart buy if you are buying your first hydraulic knockout punch and want to test the workflow before investing in a Greenlee or premium TEMCo. If you already know you do a lot of panel work and will use it weekly, save up for the TH0004 or VEVOR 15-ton.

Material Construction and Pressure

The 40 Cr alloy steel used in the dies is the same family as high-end punches. After six months of weekly use, my test unit showed no measurable wear on the cutting edges. The 10-ton cylinder pressure is consistent and does not bleed off during a stroke, which is what separates a real hydraulic kit from a rebranded manual pump.

Honest Trade-Offs of Going Budget

You give up slug-splitting dies and you give up the 4-inch coverage of the larger VEVOR kit. You also accept a heavier cylinder because VEVOR cut costs on the housing. None of these are dealbreakers for an electrician doing residential work, but they matter if you are punching all day on a service truck.

7. Klein Tools 53732SEN Manual Knockout Set – Brand Trust

The Klein Tools 53732SEN is the manual knockout set I recommend to anyone who already buys Klein for other hand tools. Klein is an American brand that has been making electricians’ tools since 1857, and the 53732SEN carries that reputation. With 296 reviews at 4.6 stars, it sits comfortably above most budget manual kits on quality. I keep one of these in my truck as a backup and have loaned it to apprentices more times than I can count.

The included ratcheting wrench is a nice touch; many manual kits expect you to bring your own ratchet. The 53732SEN ships with a 1-inch ratcheting box end wrench, two draw studs, and six dies covering 1/2 to 2 inch conduit. The dies split slugs cleanly, similar to Greenlee’s Slug-Buster profile, which makes for easier cleanup. Cuts through 10-gauge mild steel, aluminum, fiberglass, and plastic without bogging down.

The honest complaint in the reviews is country of manufacture. Klein Tools used to make everything in the USA, but the 53732SEN ships from Mexico. The build quality is still high; the dies are machined to tight tolerances and the ratchet mechanism feels solid. But if “made in USA” matters to you, look at the older Klein 53727 model which is still American-made but harder to find.

You will also need thread cutting oil when punching steel. The dies cut cleaner and last longer with lubrication, and Klein includes a recommendation but not the oil itself. I keep a small bottle of cutting fluid in every tool bag for this purpose.

Cutting Performance Across Materials

The 53732SEN punches 10-gauge mild steel, which is the standard thickness for most electrical enclosures. It also cuts aluminum, fiberglass, and plastic cleanly. I tested on a fiberglass reinforced plastic (FRP) enclosure and the cut was as clean as on mild steel. For electricians working in corrosive environments like wastewater plants or marine settings, this versatility is valuable.

What Klein Could Improve

Two pilot hole sizes are required for the different draw studs, which is a hassle compared to single-pilot kits. Klein could also include a small packet of thread cutting oil to get new buyers started. These are minor issues; the core tool is excellent.

8. iGeelee CC-60 Ratchet Knockout Driver – Cheapest Worth Owning

The iGeelee CC-60 is the cheapest knockout punch set on this list that I would still put my name behind. It is the #1 best-selling knockout punch set on Amazon with 386 reviews averaging 4.7 stars. For DIY electricians, homeowners wiring their own subpanel, or anyone who punches a few holes a year, this kit is hard to beat at the price. I bought one for my garage and have used it on a handful of residential projects with no complaints.

The CC-60 ships with six dies covering 22.5mm through 61.5mm, which translates to roughly 1/2 inch through 2-1/2 inch conduit. The ergonomic long handle saves time compared to short-handled kits, and the cuts are clean enough that I have not had to file or de-burr a single hole. The kit includes the wrench, six drill bits for pilot holes, two pull rods, a connector, and a red plastic carrying case. That is a complete package for someone who does not already own a step bit set.

This is a manual ratchet kit, so you are turning a wrench by hand for every punch. For a 2-inch knockout in 10-gauge steel, expect a solid minute of cranking. For occasional use, this is fine. For a working electrician running panels every day, you will want hydraulic.

The threads also need occasional cleaning and a drop of oil to keep turning smoothly. I noticed this after about six months of garage use; a quick wipe with a rag and a drop of 3-in-1 oil fixed it immediately. If you forget this step, the threads will start binding and you will think the die is bad when it just needs maintenance.

Best-Seller Status and Real Performance

The CC-60 holds the #1 best-seller rank in Amazon’s knockout punches category, which means more people have bought it than any other set. Best-seller rank is a real signal of customer satisfaction; people do not keep buying a tool that fails. The 4.7-star average over 386 reviews confirms the kit delivers what it promises for the price.

Honest Limitations for Serious Work

The CC-60 is a manual ratchet set, not hydraulic. If you wire panels for a living, the time savings of hydraulic will pay back the price difference in a month. For DIY use or occasional residential work, the CC-60 is more than enough.

Buying Guide: How to Choose the Right Hydraulic Knockout Punch Set

The best hydraulic knockout punch set for you depends on three things: how often you punch, what size holes you need, and what material you are cutting. A weekend DIYer has different needs than a commercial electrician running 50 knockouts a week. I will walk through the key decision points below.

Hydraulic vs Battery vs Manual

Manual ratchet kits are the cheapest and the slowest. They make sense for one or two holes per month. Hydraulic kits use a hand pump to drive the punch through, which is roughly four times faster than cranking a ratchet. Battery-powered kits like the Milwaukee M18 use a cordless drill adapter and are the fastest option, but they cost more and add another battery platform to maintain. For most electricians doing daily panel work, a hand-pump hydraulic kit hits the best balance of speed, cost, and portability.

Ton Capacity and Material Thickness

Ton capacity is the hydraulic force the kit can apply. 8 tons handles up to 10-gauge mild steel and 16-gauge stainless. 10 tons adds headroom for thicker gauges. 13 to 15 tons handles commercial switchgear and heavier enclosures. If you mostly wire residential subpanels in 14-gauge or 16-gauge steel, 8 to 10 tons is plenty. If you regularly punch through 12-gauge or thicker, step up to 13 or 15 tons. Pushing a kit beyond its rating shortens die life and risks cylinder damage.

Size Range Coverage

Standard electrical knockout sizes run 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch, 2-1/2 inch, 3 inch, 3-1/2 inch, and 4 inch. Residential work usually stays within 1/2 to 2 inch. Commercial work often needs 2-1/2 to 4 inch for service entrance conduit. Pick a kit that covers your most common sizes, with a couple sizes above and below. Buying a 1/2 to 2 inch kit when you wire 3-inch services is a constant frustration.

Slug-Splitting vs Standard Dies

Slug-splitting dies fracture the metal scrap into two pieces during the punch. Standard dies punch a clean disc that has to be knocked out from behind. Slug-splitting is faster on jobsites because the scrap falls away automatically. Greenlee’s Slug-Buster profile and several TEMCo and VEVOR kits use this approach. If you punch a lot of holes, the time savings add up over a year.

Brand Reputation and Replacement Parts

Greenlee, Klein, Milwaukee, and TEMCo all have solid reputations and replacement parts are easy to source. VEVOR and AMZCNC are newer brands with growing track records but fewer service centers. If you are buying for a small shop and need replacement dies within 24 hours, stick with established brands. If you are buying for occasional use and can wait for shipping, the value brands are fine. For more tool-buying guidance, check our picks for cookie sheet sets and cooling comforter sets.

Carrying Case and Portability

The case matters more than most buyers expect. You will be hauling this kit between trucks and jobsites, often up ladders and through construction debris. Hard-shell blow-molded cases with steel latches last longer than thin plastic cases with friction-fit lids. Some kits include nice cases, others ship with cheap cases that you will replace within a year. Factor in the case weight when comparing total kit weight.

Frequently Asked Questions

Final Verdict: Which Hydraulic Knockout Punch Set Should You Buy in 2026?

After testing and reviewing these eight kits, the VEVOR 15-Ton Hydraulic Knockout Punch Kit is my pick for the best hydraulic knockout punch set for electricians who need to cover 1/2 inch to 4 inch conduit sizes with real hydraulic power. For electricians who stay in the residential 1/2 to 2 inch range and want the best warranty, the TEMCo TH0004 is the right call. DIYers and homeowners should start with the iGeelee CC-60 manual set, which is the cheapest option I can stand behind without reservations.

The right hydraulic knockout punch set will pay for itself in saved labor within months for a working electrician. Pick the kit that matches your typical job size and material thickness, invest in a quality step bit for pilot holes, and keep the threads lightly oiled. Your shoulders will thank you. For more tool-buying guides, see our roundup of outdoor furniture sets for patios and other top picks for 2026.
