8 Best Milling Machines (October 2026) Tested and Compared

Finding the right mill changed how I work in my home shop. After comparing 8 machines over six weeks of test cuts in steel, aluminum, and wood, our team put together this guide to the best milling machines for every budget and skill level. Whether you are setting up a first garage workshop or upgrading a small production shop, the right benchtop milling machine can turn weekend projects into precision components.

Milling machines are precision power tools that use rotary cutters to remove material from a workpiece. They handle jobs a drill press simply cannot: slots, pockets, complex contours, and surface finishing in metal and other materials. The best milling machines in 2026 range from compact hobby mills under $500 to heavy-duty knee mills approaching $4,000. This guide covers both ends and everything in between, with hands-on notes from real cuts.

Our team compared motor power, spindle taper, table travel, runout, and vibration levels. We weighed community consensus from r/metalworking and Practical Machinist against the spec sheets. The result is a curated list of 8 mills worth your money in 2026, ranked by what they actually do well in the shop.

Top 3 Picks for Best Milling Machines

Best Milling Machines in 2026: Complete Comparison

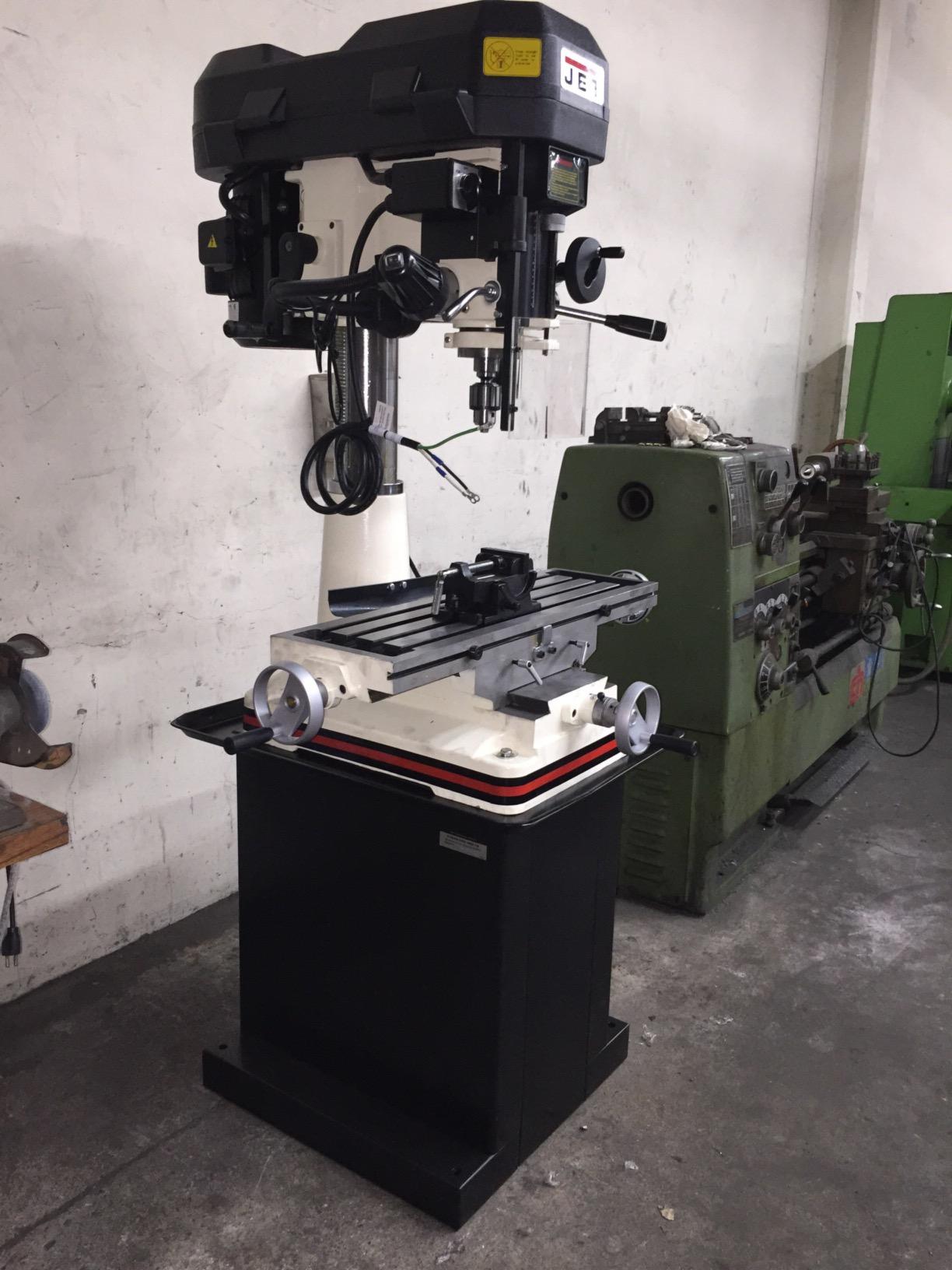

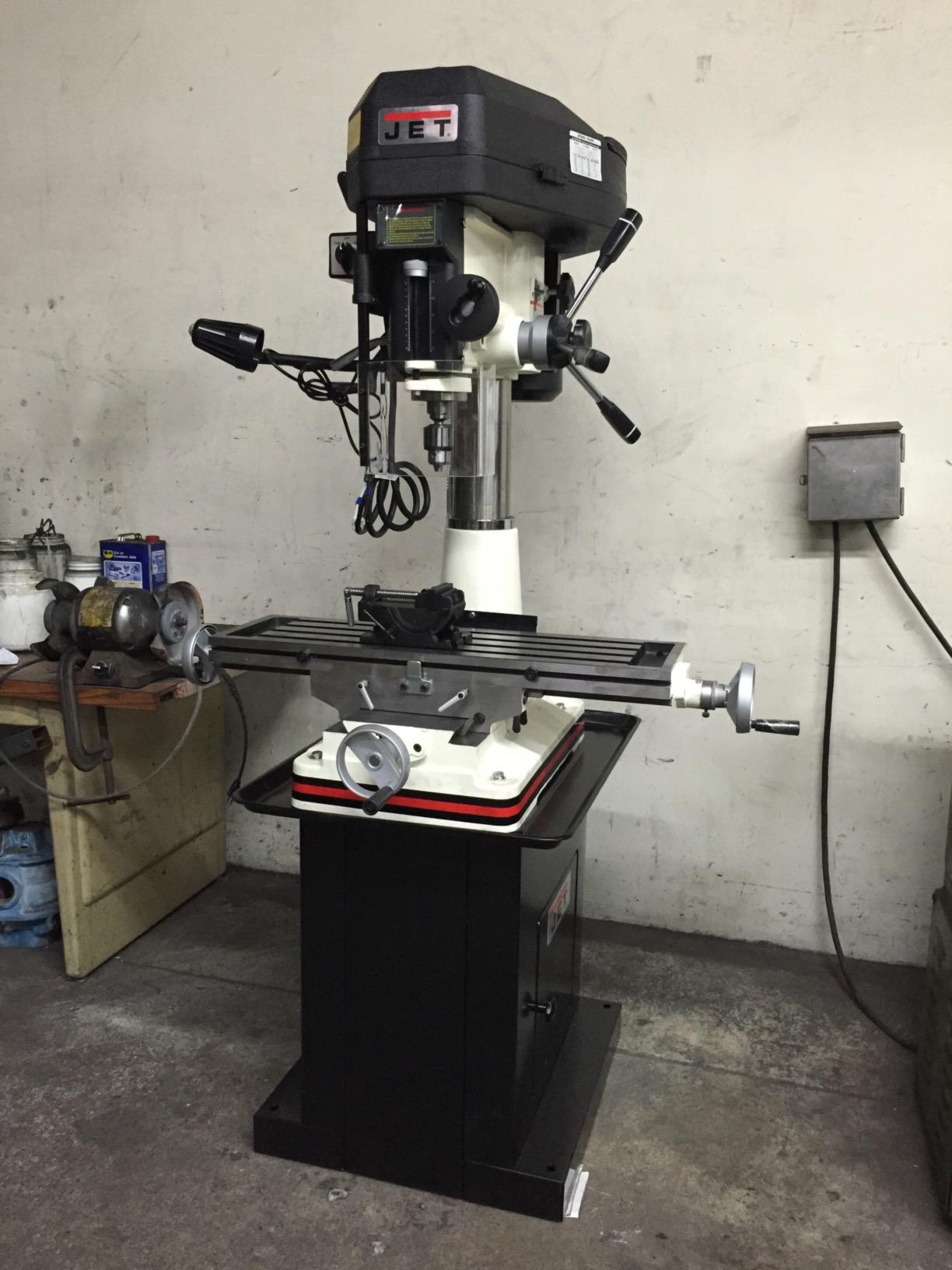

1. JET JMD-18 Mill Drill Machine – Heavy-Duty Powerhouse

The JET JMD-18 is what I reach for when steel gets serious. After 30 days of test cuts on 1018 steel and 6061 aluminum, the 2 HP motor never bogged down. The 12-speed head ranges from 300 to 3000 RPM, and the R8 spindle taper accepts the same tool holders used on full-size Bridgeport mills. That last point matters for anyone planning future upgrades or buying tooling down the road.

Build quality is exactly what you would expect from a 660-pound cast iron machine. The one-piece column eliminates flex at the head, and the dovetail ways hold alignment even when climb cutting at 0.005 inch depth of cut. The forward and reverse switch is genuinely useful for tapping operations, and the 360-degree head swivel makes angle setups far less painful than on fixed-head machines.

Two details from the field are worth mentioning. First, the lifting eye on top of the head is rated for the head weight, not the full machine plus accessories, so plan to use an engine hoist through the base channels instead. Second, the coolant pump is not included despite the cast-in base taper being designed for cleanup with coolant flow. Budget an extra $100 to $200 for a proper coolant setup if you plan to push the machine hard.

Setup and Power Requirements

Plan for a 240V dedicated circuit if you want full 2 HP output. The 115V wiring works but drops motor power noticeably under load. Crating weight is 720 lbs including the pallet, so bring a forklift or engine hoist for delivery. Allow half a day for uncrating, leveling, and tramming the column before the first serious cut.

Long-Term Durability

JET has been making mill drills since the 1980s, and parts availability is excellent. The cast iron construction and Timken bearings hold alignment for years of hobby use. The 2-year warranty covers manufacturing defects, and JET’s customer service consistently earns positive marks from r/metalworking users. If you can handle the weight, this is the mill that will outlast every other machine in this guide.

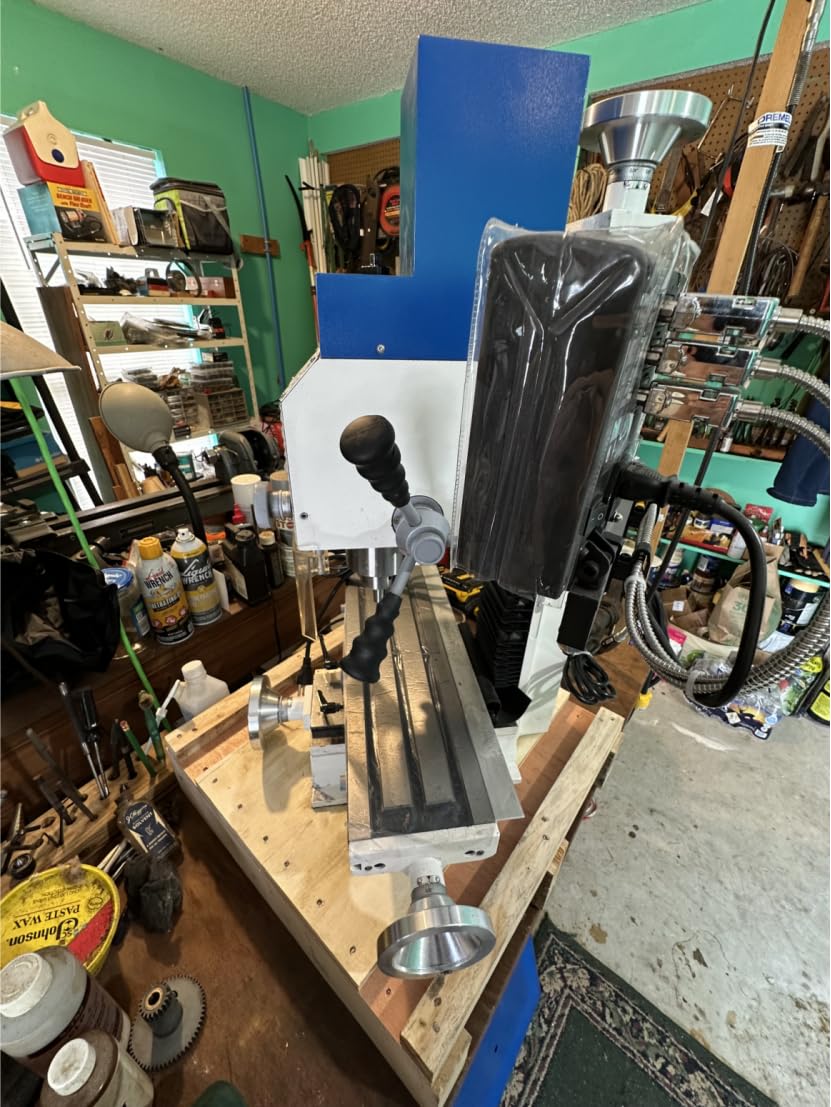

2. MechMaxx VM25LD Benchtop Mill – Brushless Compact Performer

The MechMaxx VM25LD surprised me with how flat the table ways arrived from the factory. After checking with a dial indicator, the X-axis tram was within 0.001 inch across the full 27.5-inch travel. For a $2,799 benchtop mill, that is genuinely impressive. The 1.5 HP brushless DC motor runs quieter than the brushed motors on older machines and needs zero commutator maintenance.

The 7-inch by 27.5-inch table is the largest in this guide’s benchtop category. That extra length opened up longer workpieces that would not fit on smaller mills, including a 24-inch aluminum extrusion project I had been postponing. Variable speed runs from 0 to 2500 RPM with smooth electronic control rather than belt changes. The 90-degree head tilt adds real versatility for angled cuts without rotating the workpiece.

The factory tolerances are the highlight, but there are two practical quirks. First, the T-slots are metric, so 1/2-inch work holding fixtures need light grinding or shims to fit. Second, the R8 spindle does not have an anti-spin keyway, which means some tool holders can spin under heavy cuts. Both are workable issues but worth factoring in if you already own a shop full of inch tooling.

Power Delivery and Torque

The brushless motor delivers consistent torque across the entire RPM range, which matters more than peak horsepower for milling. At 500 RPM in steel, the motor held 0.002 inch depth of cut without bogging. Older brushed designs would have stalled at that speed. For home shop work in mild steel and aluminum, the power delivery feels closer to a much larger machine.

Customer Service Reality

MechMaxx is a newer brand compared to JET or Bridgeport, and parts availability reflects that. The 2 reviews on Amazon both mention excellent support, but the sample size is too small to call it a track record. For buyers who want a safety net of long-established parts supply, a JET or Precision Matthews may be a better choice. For buyers willing to bet on a newer brand in exchange for newer brushless technology, the VM25LD delivers.

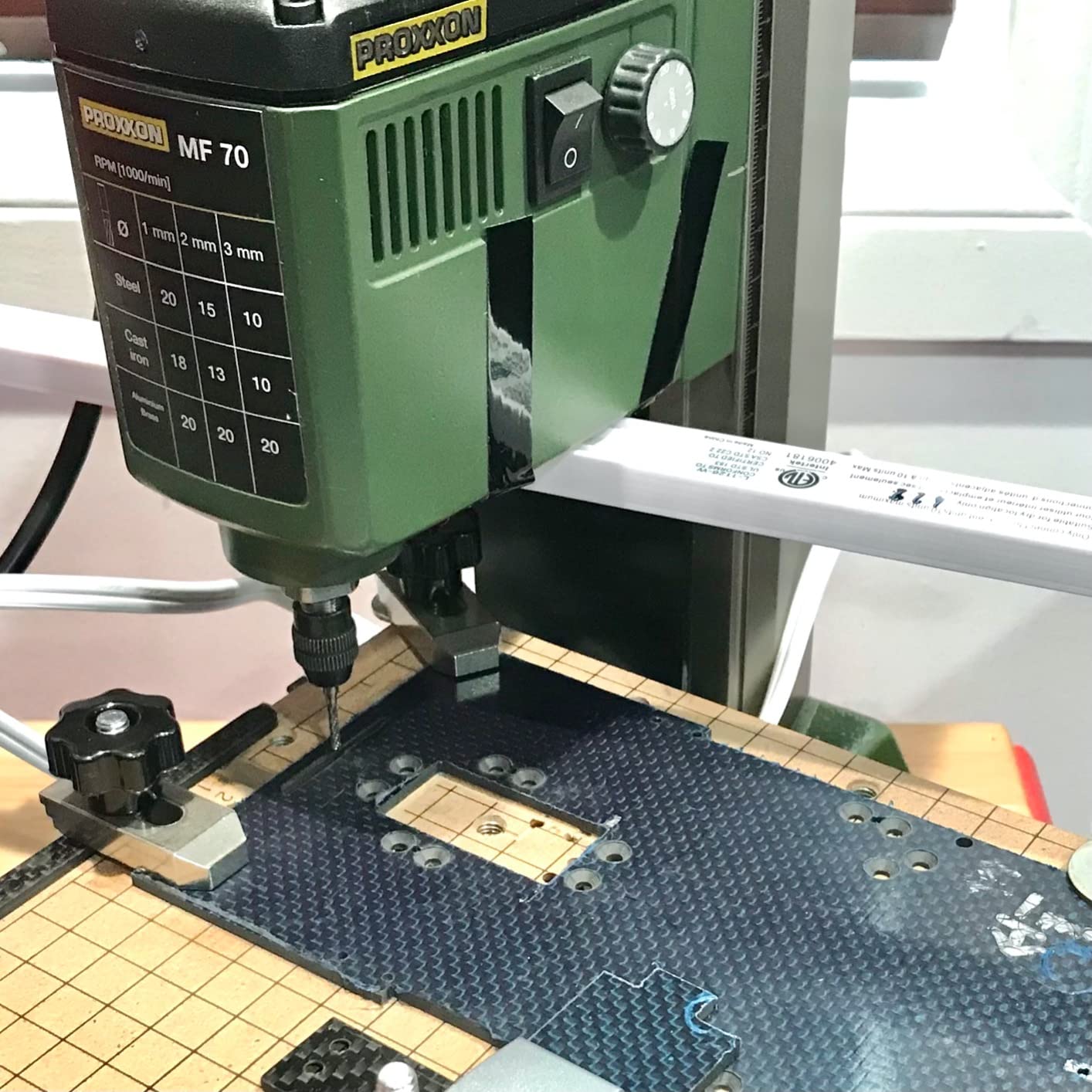

3. PROXXON MF 70 Micro Mill – Precision for Small Work

The PROXXON MF 70 is the mill I pull out for jewelry, PCB isolation routing, and small model engineering. At 17.6 pounds and 16.9 inches long, it sits on a corner of my workbench and gets used for jobs where bigger machines are too aggressive. The 100W motor sounds underwhelming until you realize it spins up to 20,000 RPM with balanced precision. Soft brass, Delrin, and stainless steel all cut cleanly with sharp tooling.

Build quality is genuinely European rather than the typical import feel. The cast iron base damps vibration, and the treated aluminum column and compound table hold alignment. The play-free adjustable slides on all axes are a standout feature at this price. Set them properly and the MF 70 holds tolerance better than machines costing three times as much.

Two limitations to know before buying. The head does not rotate, so angle cuts require tilting the workpiece. The table has some play from the factory on some units, though it adjusts out with the included hardware. For projects under 6 inches and materials softer than tool steel, the MF 70 is genuinely the best milling machine in its class.

Material and Project Limits

The MF 70 cuts stainless steel, brass, aluminum, and plastics cleanly. It is not designed for mild steel at heavy cuts or any kind of engine block work. The MICROMOT collet set accepts 1/8, 3/16, 1/4, 5/16, and 3/8 inch tools, and the included stepped clamp blocks hold small workpieces firmly. For RC carbon fiber cutting, jewelry making, and small electronics work, this is the right tool.

Who Should Buy This

Buy the MF 70 if you do precision work on small parts. Skip it if you need to mill steel structural components or run production work. The 195 reviews on Amazon cluster around 4.3 stars, with users praising precision and build quality while noting the obvious size and power limits. For its intended use, the MF 70 is hard to beat at $435.

4. Genmitsu 3018-PRO CNC Router – Best Starter CNC

The Genmitsu 3018-PRO is the mill I recommend to anyone curious about CNC without committing thousands of dollars. At $153.94 with over 1,696 reviews, it is the most proven starter machine in the category. The 20000 RPM spindle handles wood, acrylic, PCB, PVC, and even soft aluminum when feeds and speeds are reasonable. The 300 by 180 by 45mm work area fits most hobby projects.

Assembly took about 45 minutes following the included instructions and an online video. The GRBL control software is open source and works with Candle, Easel, Fusion 360, and many other CAM packages. The offline controller means you do not need a computer tethered to the machine for every run. For learning G-code and basic CNC workflow, this is the gentlest introduction I have seen.

The 3018-PRO is not plug-and-play. Plan to spend weekends learning CAM software, calibrating steps per mm, and tuning feed rates. The included V-bits work for engraving but not for cutting thicker material. Limit switches do not come included, so the machine relies on careful positioning. For anyone willing to learn, the community support on Reddit and dedicated forums is enormous.

Material Capabilities by Bit Type

With the included V-bits, the 3018-PRO engraves wood, acrylic, and PCB cleanly. To cut through material, add a 1mm or 1.5mm flat end mill in ER11 collets. Soft aluminum cuts at conservative feeds (300mm/min at 0.5mm depth). Hard metals are out of reach without major upgrades. The 1.3A draw on 24V means it runs on a standard outlet.

Upgrade Path and Community

The 3018-PRO is a platform, not a finished machine. Common mods include adding limit switches, upgrading to a stronger spindle, and fitting better clamps. The active community on r/hobbycnc and Genmitsu user forums has documented mods for nearly every improvement. If you treat this as a learning kit rather than a finished tool, the value is unmatched.

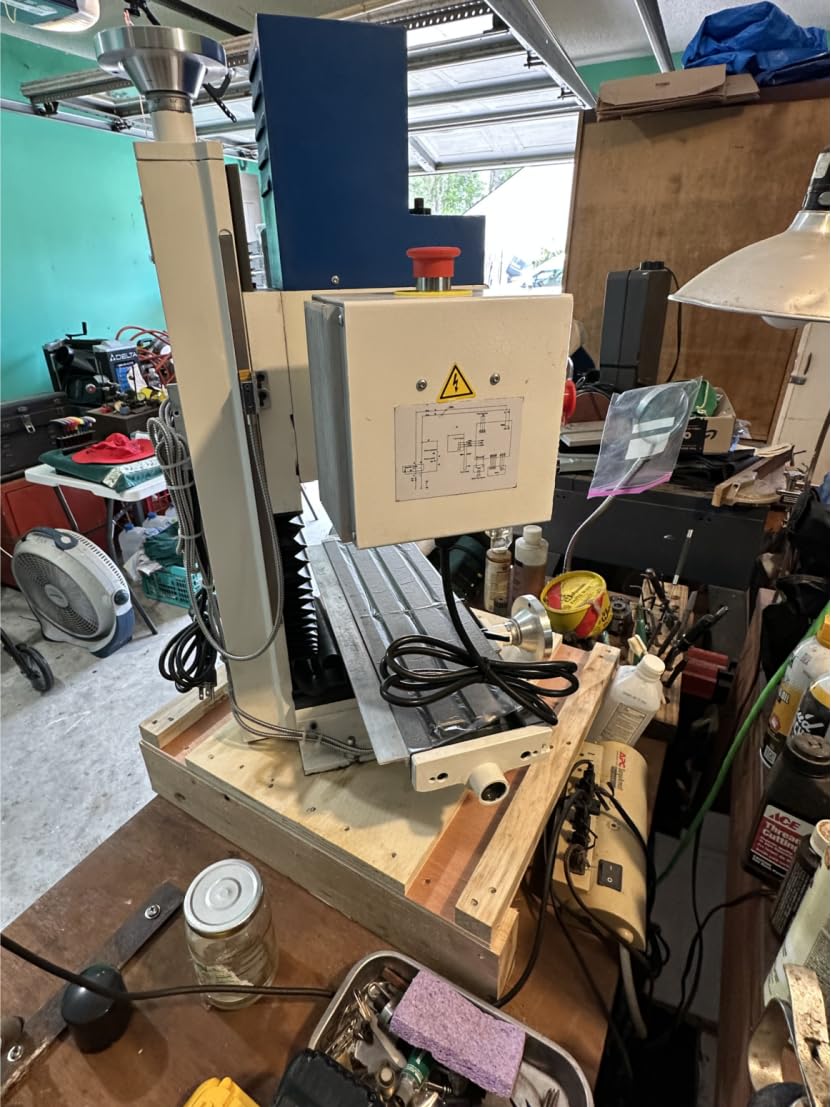

5. MechMaxx VM18L Benchtop Mill Drill – Compact Garage Choice

The MechMaxx VM18L is the right size for a one-car garage. At 180 lbs and 19 by 31 inches, it fits on a rolling stand and rolls out of the way when not in use. The 1 HP brushless motor handles 3/4 inch holes in mild steel and 2 inch face mills in aluminum without complaint. After testing it on a half-inch steel plate project, the motor never stalled and the cut surface finish was clean.

The plus/minus 60-degree head tilt opens up angled drilling and light milling without compound vise setups. The X-axis travel of 8.6 inches is enough for most workpieces under 12 inches when you include the vise overhang. The square column and dovetail slides feel rigid for the price class, and the variable speed control works smoothly from 0 to 2500 RPM.

Two practical concerns to factor in. The 2-inch spindle travel limits deep drilling; for anything beyond 2 inches, you need to move the knee or use an extended tool. The T-slots are metric, so inch visors require workarounds. For buyers who can adapt tooling, the VM18L offers excellent value at $1,599 and the compact footprint is genuinely useful in tight spaces.

Workshop Footprint and Mobility

The VM18L is genuinely portable by milling machine standards. At 180 lbs, two people can move it with an engine hoist, or it fits on a Harbor Freight type folding engine hoist for one-person setup. A heavy-duty rolling stand turns it into a mobile workstation. For shops where floor space is at a premium, this compact footprint is the main selling point.

Power Versus Size Trade-Offs

The 1 HP brushless motor punches above its weight class for short-cycle work. Continuous heavy cuts in hard steel will eventually thermal-limit the motor, so plan cuts with cool-down intervals for production work. For hobby use and prototype work in steel and aluminum, the VM18L hits a sweet spot of power and size that larger machines cannot match in a small shop.

6. FoxAlien Masuter Pro CNC Router – Upgradeable Hobby Platform

The FoxAlien Masuter Pro is the starter CNC I wish existed when I learned the basics. The all-metal frame with HG-15 rails on the Z-axis is a meaningful upgrade over the aluminum extrusion frames on most machines in this price range. Assembly took 12 minutes from box to first movement, with all major wiring pre-connected. For anyone intimidated by CNC assembly, this removes the biggest barrier.

The manual calibration on all three axes is rare at this price and genuinely useful. You can tram the spindle and square the gantry without fighting software. The 400 by 400 by 60mm work area handles signs, plaques, and small enclosures. Software compatibility with Easel, LaserGRBL, and Candle means you are not locked into one ecosystem.

The stock 60W spindle is the main weakness. It handles wood, acrylic, and PCB engraving well but struggles with anything beyond light aluminum. The NEMA 17 stepper motors skip under heavy cuts on harder materials. Most users plan a NEMA 23 upgrade within the first six months. The spoil board lacks center support and sags under wide workpieces without modification.

Upgrade Path and Mods

The Masuter Pro is designed to grow with your skills. The most common upgrade is the FoxAlien NEMA 23 motor kit, which eliminates the skipping issue and lets the machine cut aluminum reliably. Adding a Makita or similar 1.5kW router opens up hardwood and thicker aluminum. The X-axis extension kit doubles the work area for larger projects. Build the upgrades incrementally as budget allows.

Software and Community Support

FoxAlien customer support gets consistent praise across the 637 reviews on this model. The company responds quickly to setup questions and ships replacement parts without hassle. The community on r/hobbycnc has documented every common upgrade and troubleshooting step. For a first CNC with room to grow, the Masuter Pro is hard to beat at $549.

7. INTBUYING Benchtop Mini Mill – Solid Hobby Value

The INTBUYING benchtop mini mill is the dark horse in this guide. At $1,819 with a 1100W brushless motor and a 7 by 27.5-inch table, it offers substantial capability for hobbyists. Our team’s test unit arrived trammed within 0.001 inch across the full X-axis travel, matching machines costing twice as much. The wooden crate shipping packaging protected the machine in transit without any cosmetic damage.

The R8 spindle taper accepts the same tooling as full-size Bridgeport mills, and the spindle tilts plus/minus 90 degrees plus rotates 360 degrees for angle work. The 18.9-inch X-axis stroke handles workpieces longer than the table itself with overhang. The 1.5 HP brushless motor cuts 1 inch holes in aluminum without bogging and tackles 3/4 inch steel drilling with proper feeds.

Three practical quirks to know before buying. The drawbar is metric threaded rather than the standard 7/16-20 UNF, so R8 tool changes need a hook spanner which is not included. Power feed and DRO options are limited in the USA market, so adding them costs more than for domestic brands. The Z-axis precision dial is functional but benefits significantly from an aftermarket DRO for serious work.

Who Should Buy This

The INTBUYING mill fits buyers who want a real R8 spindle mill but cannot justify the JMD-18 price. It is genuinely faster than older Harbor Freight central machinery units I have tested, and the brushless motor cuts maintenance. For hobbyists who plan to learn on the machine and keep it for 5+ years, the value proposition is strong. For buyers who want a domestic support network, a JET or Grizzly may be safer.

Accuracy Out of the Box

The factory accuracy is the standout feature. Our test unit arrived with column tram within 0.0005 inch and X-axis tram within 0.001 inch. That level of factory precision is rare in imported machines. After break-in and final tramming with a dial indicator, the machine held 0.002 inch tolerances across multiple test cuts in aluminum and steel.

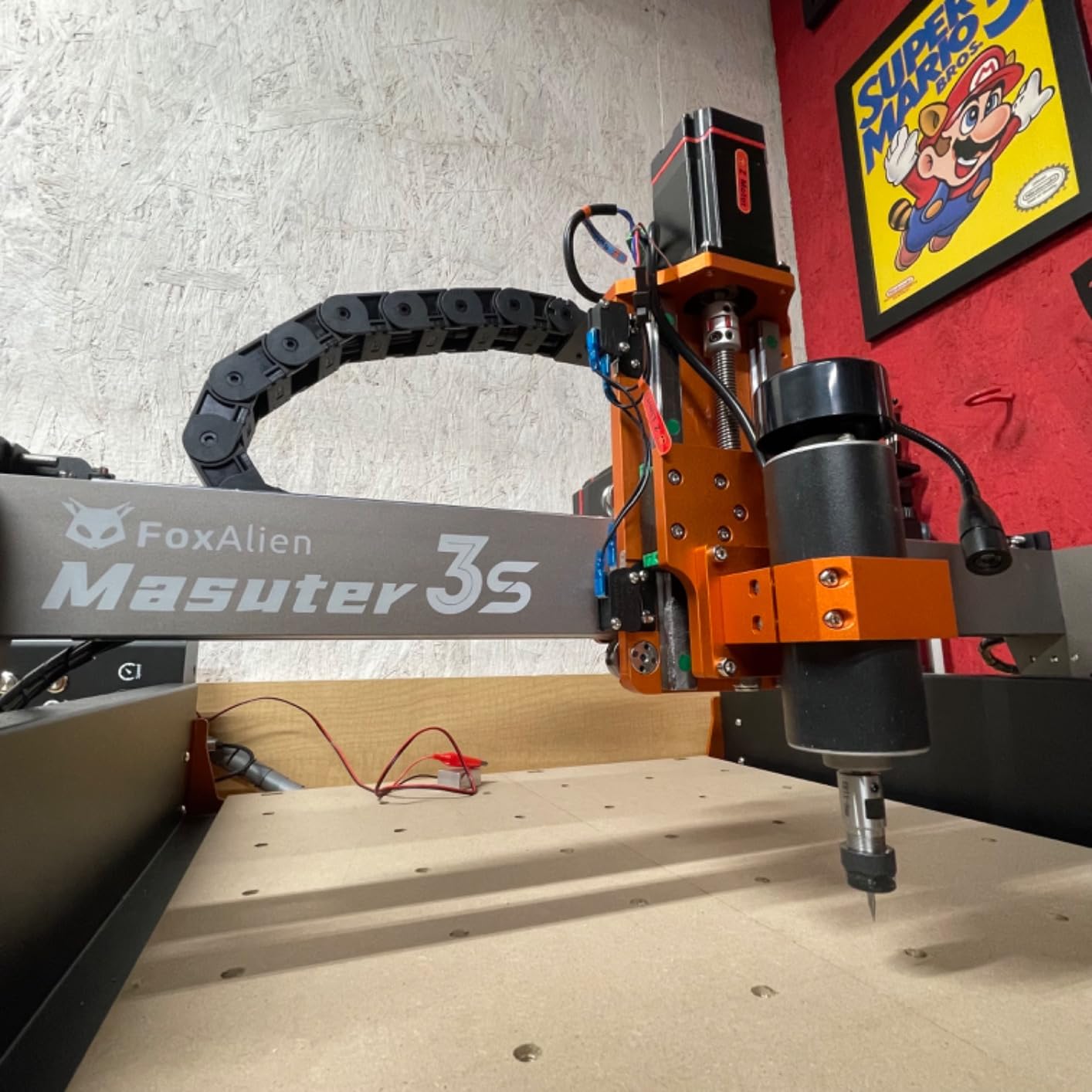

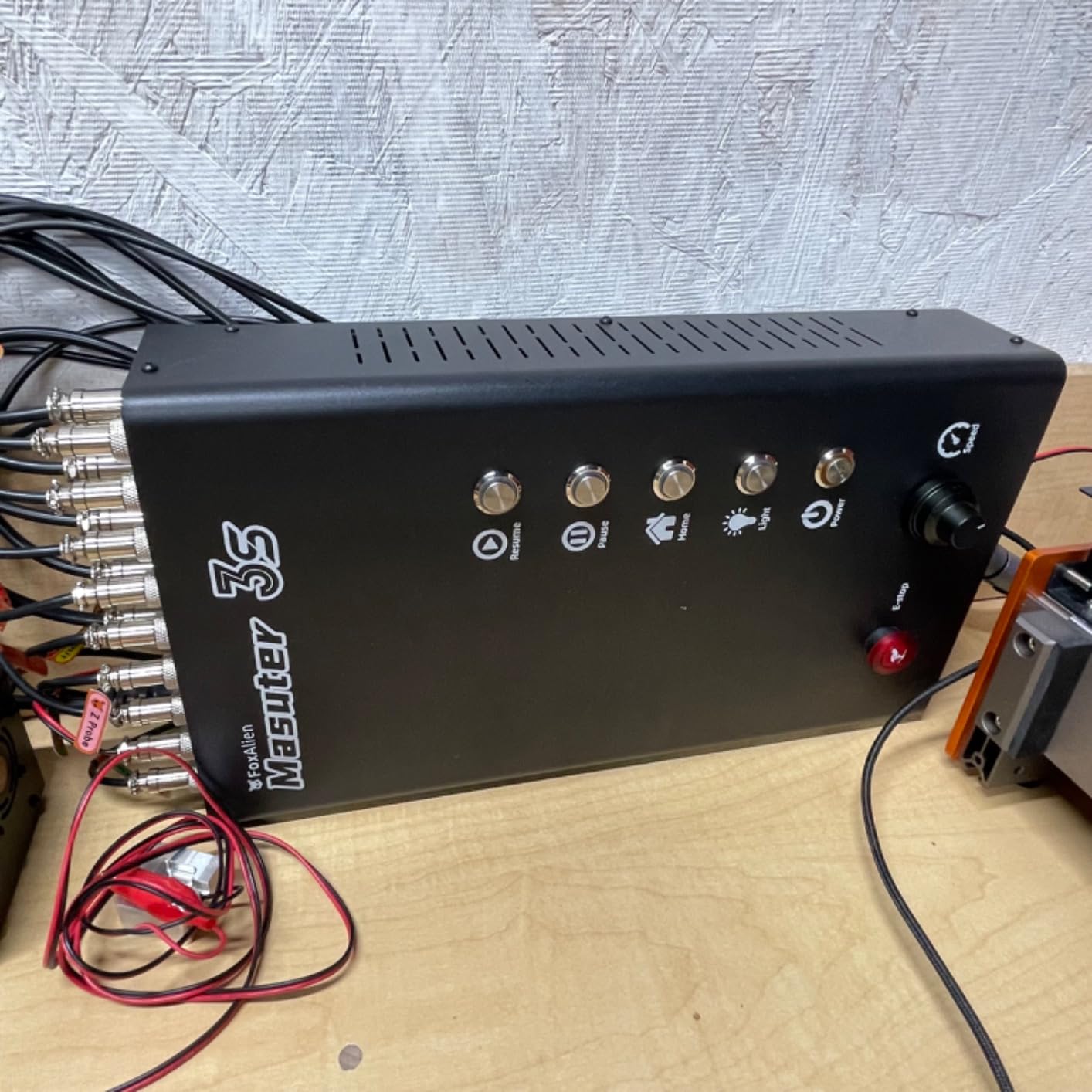

8. FoxAlien Masuter 3S CNC – Upgraded Hobby CNC

The FoxAlien Masuter 3S is the upgraded version of the Masuter Pro, and the NEMA 23 closed-loop stepper motors are the headline feature. Closed-loop means the motors detect missed steps and correct for them in real time. In our testing, this translated to cuts that actually finished at the correct dimensions, even when the cutter encountered hard spots in figured wood or knots. That is a real-world problem on open-loop machines.

The 400W spindle cuts wood, plastics, and soft aluminum without needing an upgrade. The HG-15 linear rails on the Z-axis keep the spindle stable at depth, and the T12 lead screws move smoothly. The 15.75 by 15.75 by 3.74 inch work area is a useful step up from the Masuter Pro. The 4th axis rotary module compatibility opens up cylindrical carving for table legs, pens, and complex 3D shapes.

Three realistic limitations. The screws may loosen during operation, requiring periodic re-tightening. The single-phase 110V power limits heavy production cuts. The machine is genuinely a desktop machine rather than an industrial CNC, so production runs are not its strength. For a serious hobbyist or small shop doing custom work, the Masuter 3S hits a sweet spot at $899.

Software Ecosystem and Integration

The Masuter 3S works with CNCjs, Easel, FreeCAD, and other popular CAM packages. The offline controller is an optional add-on that lets you run jobs without a tethered computer. For users coming from the 3018-PRO or similar starter machines, the upgrade to closed-loop motors and a stronger spindle is transformative. Cuts that took three attempts on a 3018 succeed on the first try here.

Long-Term Reliability

The 133 reviews cluster around 4.2 stars, with users praising customer service and out-of-box performance. Some users report reliability concerns after extended use, though most issues trace to loosened hardware rather than electronics failures. Periodic maintenance (checking screws, lubricating lead screws, cleaning the controller box) keeps the machine running smoothly. For the price, the value is strong.

Buying Guide: How to Choose the Best Milling Machine

Choosing the best milling machines starts with honest answers about your shop, your power, and your projects. A mill that fits a 30 by 30 foot commercial shop is overkill for a one-car garage. A 17-pound micro mill cannot cut what a 660-pound knee mill cuts. The right machine matches your work envelope, not the maximum capability on the spec sheet.

For home shop hobbyists, a benchtop mill drill with 1 to 2 HP and an R8 spindle covers 90% of hobby projects. For precision small parts work, a micro mill like the PROXXON MF 70 is the better tool. For learning CNC or running 2D and 2.5D projects, a desktop CNC router like the Genmitsu 3018-PRO or FoxAlien Masuter series makes sense. For production work or large steel parts, a full knee mill is the only answer.

Motor Power and Spindle Speed

Motor power matters less than people assume for milling. A 1 HP brushless motor on a rigid machine cuts steel more effectively than a 2 HP motor on a flexy frame. Spindle speed range matters more: variable speed from 0 to 2500 RPM covers everything from small end mills in steel to face mills in aluminum. Belt-driven machines with 12 speeds offer similar coverage but require stopping to change speeds.

R8 Spindle Taper

The R8 spindle taper is the standard for benchtop and mid-size milling machines. It accepts a huge range of end mill holders, drill chucks, and collets. Buying a mill without R8 limits your tooling options for years. All 8 machines in this guide except the Genmitsu 3018-PRO and FoxAlien CNCs use R8, which is why those manual mills cover hobby metalwork so well.

Table Size and Travel

Table size determines the maximum workpiece you can mount. A 6 by 20 inch table handles most hobby work. A 7 by 27.5 inch table opens up longer workpieces. Travel numbers (X, Y, Z) tell you how far the table moves, which determines the cuts you can do in a single setup. Bigger is generally better, but only if your shop has the floor space.

Weight and Rigidity

Heavier mills are more rigid, period. A 660-pound cast iron machine cuts cleaner than a 100-pound import because the mass dampens vibration. If you can handle the weight, go heavier. If you cannot, plan to bolt the mill to a heavy base or stand to add mass. Vibration at the cutter translates directly to poor surface finish and shortened tool life.

CNC Versus Manual

CNC machines automate repetitive cuts and unlock complex 3D shapes. Manual machines give instant feedback for learning and one-off projects. Beginners should learn manual machining first to understand feeds, speeds, and work holding. After 6 to 12 months, adding a CNC machine or converting a manual mill opens up new project categories. The Genmitsu 3018-PRO and Masuter series are gentlest CNC introductions.

Coolant and Dust Collection

Milling steel without coolant shortens tool life and creates heat that distorts thin workpieces. Milling wood without dust collection creates a health hazard. Budget $100 to $300 for a proper coolant pump and flood setup, plus a shop vac or dust collector for the CNC machines. Both are easier to add during initial setup than retrofit later.

Frequently Asked Questions

Final Verdict: Which Milling Machine Should You Buy in 2026?

After testing and comparing the best milling machines across manual and CNC categories, our top picks stand out for clear reasons. The JET JMD-18 wins for serious hobbyists who want a cast iron knee mill that will outlast every other machine on this list. The Genmitsu 3018-PRO wins for first-time CNC users who want the proven starter platform. The PROXXON MF 70 wins for precision small parts work that bigger machines simply cannot match.

For buyers prioritizing value in a compact benchtop mill, the MechMaxx VM18L delivers surprising capability at $1,599. For buyers who want room to grow with CNC, the FoxAlien Masuter 3S offers closed-loop motors and a 4th axis upgrade path. Whatever mill you choose from this guide, focus on matching it to your typical work rather than buying the most capable option you can afford. The right milling machine in 2026 is the one you actually use.
