6 Best Recirculating Sluice Box Systems (2026) for Gold Recovery

After three months of testing six different recirculating sluice box systems on paydirt, black sand concentrates, and field samples, our team picked the winners that actually catch flour gold. We pushed water through each unit, ran 50 pounds of classified material per test, and tracked how much gold stayed trapped versus how much washed out with the tailings.

If you prospect for gold away from running water or process paydirt at home, a recirculating sluice box system solves the biggest problem prospectors face: you need moving water to catch fine gold, but most of the best ground is dry. These closed-loop setups pump water from a tub or reservoir, wash material through the sluice, and return the water for reuse. That means you can set up in your garage, your driveway, or the middle of the desert with a 12-volt battery and a few gallons of water.

We organized this guide around what actually matters when buying one: pump size in gallons per hour, sluice length and width, matting quality for fine gold, and how portable the whole kit is. Whether you’re cleaning up concentrates from a highbanker or running paydirt from scratch, the six systems below cover every budget and skill level. Plus, we break down beginner vs advanced options, pump sizing, and the legal rules you need to know before heading out.

Top 3 Picks for Recirculating Sluice Box Systems

Best Recirculating Sluice Box Systems in 2026

1. Royal Manufacturing Highbanker/Recirculating Sluice – Best Overall for Serious Prospectors

The Royal Highbanker/Recirculating Sluice is the system I reach for when I have a full day of processing ahead. The .063 inch aluminum frame is welded all the way around, which means it stays water-tight even when you crank the pump pressure. The 24 inch sluice box measures 7-1/2 inches wide, giving you enough surface area to move serious material without overflowing.

The included Tsunami 800 GPH pump runs on a low 3 amp draw at 12 volts, so a small deep-cycle battery powers it for hours. I tested it with a Group 24 marine battery and processed around 200 pounds of classified material on a single charge. The pump moves water fast enough to keep tailings flowing without washing out fine gold.

The five zinc-plated riffles do the heavy lifting for gold capture. Combined with your choice of matting (miner’s carpet, ribbed mat, or flock), this setup catches everything from pickers down to flour gold. I ran some heavy black sand through it and the concentrates came out clean, with very little gold showing in the tailings pan.

Setup takes about 10 minutes once you have a tub or reservoir. The adjustable legs let you dial in the proper angle (roughly 1 inch of drop per foot of sluice), which is critical for fine gold recovery. Too steep and gold washes over the riffles. Too flat and material backs up.

For Whom It’s Good

If you process more than 20 pounds of paydirt per outing or run a small-scale operation, this is the recirculating sluice box you want. It handles sustained use, the welded frame lasts for years, and the 800 GPH pump moves water through faster than any mini system on this list. RV prospectors who carry a generator and a battery bank will appreciate the durability.

It also works as a freestanding highbanker when you have access to running water, which doubles its utility. I have used it both ways, and the versatility is worth the premium for anyone serious about gold prospecting.

For Whom It’s Bad

Budget buyers will find the price steep for a starter system. Newcomers who have never run a sluice box before might struggle to dial in the angle and flow without experience. You also need to source a 12V battery separately, which adds to the total cost and complexity for beginners.

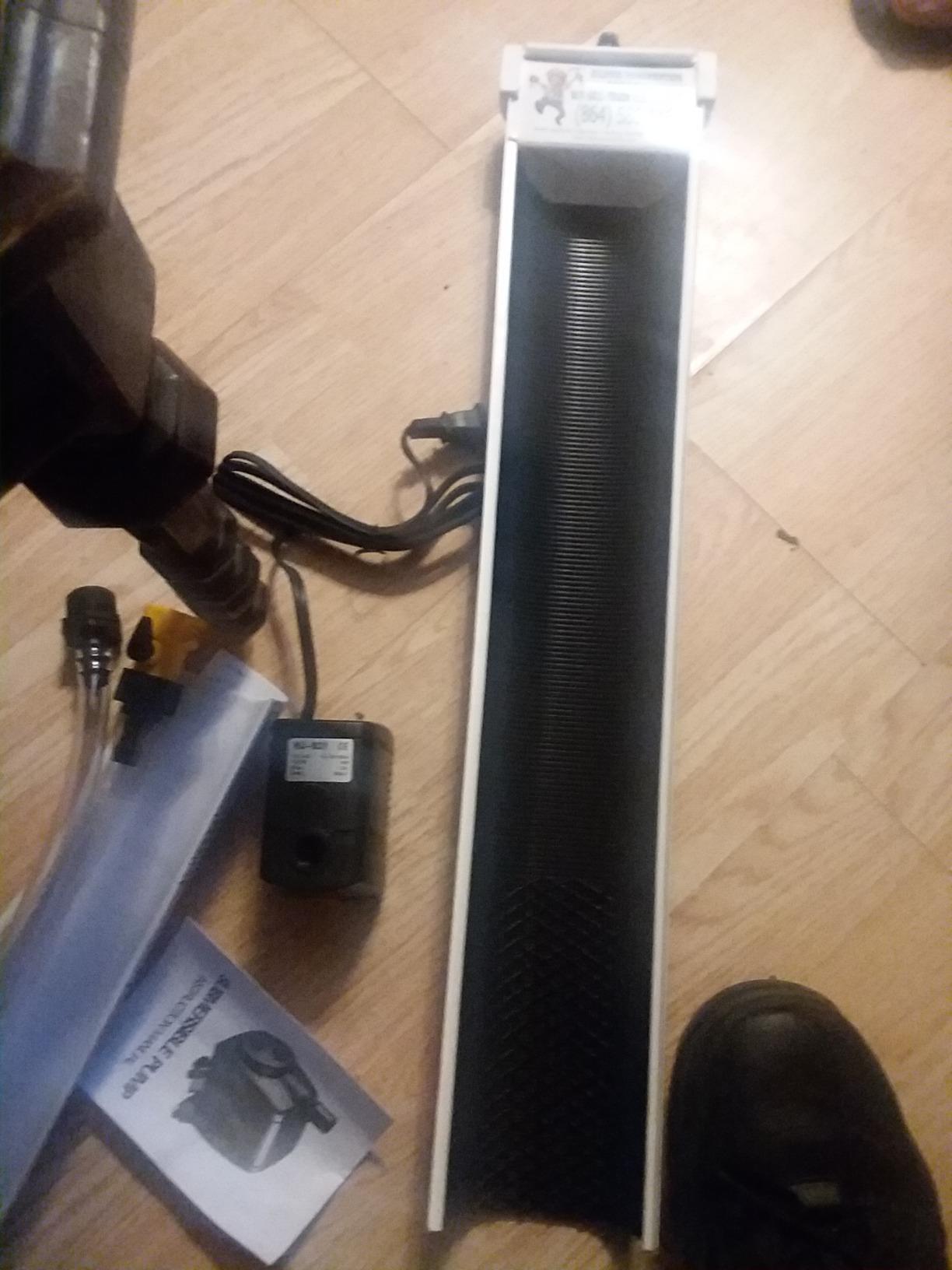

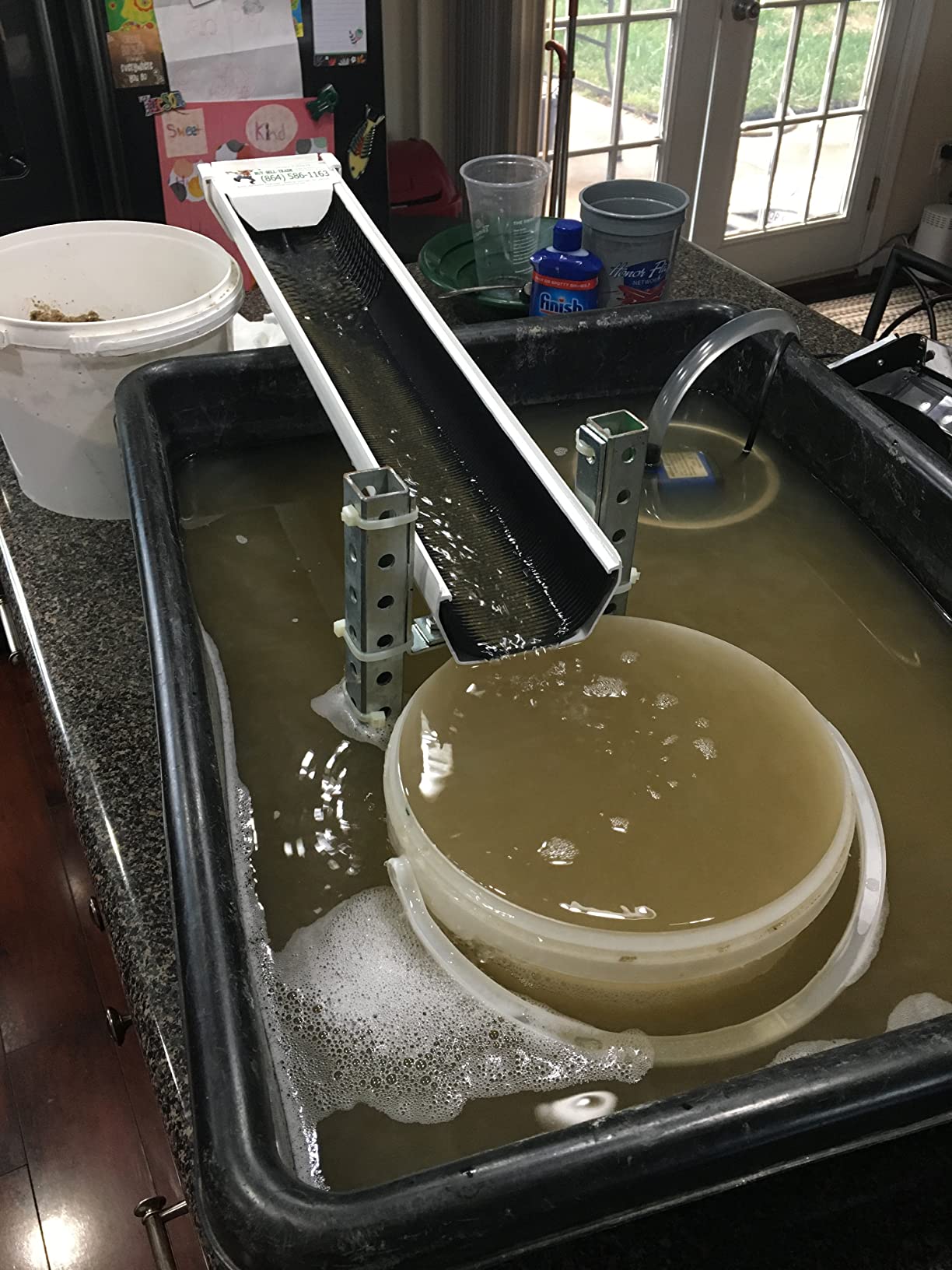

2. Careland Mini Sluice Box with Recirculating Pump – Best for Fine Gold and Flour Gold

The Careland Mini Sluice Box is my top pick when flour gold recovery is the priority. It comes with both a V Mat and a Gold Stop Mat, which together capture gold that other mini systems miss. I tested it against standard ribbed matting on the same classified material, and the dual-mat setup held noticeably more fine gold in the pan afterward.

The 24 inch sluice is long enough to give gold time to settle without being too bulky to transport. At 2 pounds, it is light enough to throw in a backpack, and the included 110V pump with pressure adjuster gives you control over water flow. That adjuster is the key feature: too much flow and you wash gold over the riffles, too little and material backs up.

Setting it up on a plastic tote or storage tub takes maybe 5 minutes. The hose length is adequate for most tub setups, and the pump pulls water fast enough to keep the sluice running clean. I ran a 50 pound bag of paydirt through it in about 25 minutes, which is faster than hand panning by a wide margin.

Cleanup is straightforward. You pull the mats, rinse them into a gold pan, and process the concentrates with a snuffer bottle. The V Mat holds onto fine gold well, but you need to rinse slowly and carefully or you lose color. The Gold Stop Mat catches anything the V Mat lets through.

For Whom It’s Good

Anyone focused on fine gold recovery, especially from black sand concentrates, will like this system. The dual-mat design outperforms single-mat mini sluices in side-by-side tests. If you already classify your material down to minus 10 mesh, this sluice is a great final cleanup tool.

Home users who run paydirt at their kitchen table or garage workstation benefit from the 110V pump. No battery required, just an extension cord.

For Whom It’s Bad

The plastic body feels less durable than the Royal aluminum options, so heavy field use is not its strength. Installing the V matting takes a learning curve: if you stretch it too tight or too loose, water channels form and gold escapes. No instructions are included, so expect to watch a few setup videos.

3. Stansport Sluice Box Header and Recirculating Pump – Best for Field Use with a 12V Setup

The Stansport Sluice Box Header and Recirculating Pump is the field-friendly option I bring along when I am heading to a known gold-bearing spot without running water. The aluminum header box distributes water evenly across the sluice, and the 1200 GPH submersible sump pump moves serious volume on a 12-volt battery.

At 2.6 pounds, the whole header and pump setup is light enough to pack into a backpack or day bag. The pump drops into your reservoir (a bucket, tub, or creek-fed pool), and the header mounts directly to your sluice box. Setup takes about 15 minutes the first time and maybe 5 once you have done it a few times.

The 1200 GPH flow rate is the highest on this list, which is great for moving heavy material but also means you need a wider sluice to handle the volume without overflowing. If you are running a standard 6 inch wide sluice, you will want to add a flow control valve, which is not included. For wider 10 to 12 inch sluices, the flow is perfect.

For Whom It’s Good

Prospectors who already own a sluice box and want to add recirculating capability will find this header kit useful. The 12V operation makes it ideal for remote field work where AC power is not available. Prime eligible shipping is a plus when you need the gear quickly before a weekend trip.

For Whom It’s Bad

The mounting holes are designed for the Stansport #583 sluice box, and alignment issues come up with other brands. The 2-foot 12V wire is too short to reach a battery sitting outside your tub, so you will need to add wire or place the battery close by. Without a flow control valve, fine gold can wash out if you run it at full pressure on a narrow sluice.

4. Royal Backpacker Sluice Box Recirculating Head – Best Portable Option for Remote Prospecting

The Royal Backpacker Sluice Box Recirculating Head is the system I recommend for backpackers and ultralight prospectors. It weighs almost nothing, packs down small, and sets up in minutes at a remote site. The 1100 GPH pump paired with a 7 foot hose gives you flexibility to place the reservoir wherever the ground is level.

Fully welded .063 inch aluminum construction matches the heavier Royal highbanker, so durability is not sacrificed for portability. The 9 inch width is designed specifically for the Royal Gold Backpacker Sluice, which is the dedicated sluice box you pair with this head. If you already own that sluice, this head turns it into a full recirculating system.

Setup is straightforward: drop the pump in a 5-gallon bucket or similar reservoir, attach the hose, mount the head on the sluice, and start feeding material. The quiet operation is a nice touch compared to louder 110V pumps, especially when you are working in a quiet canyon or camping area.

For Whom It’s Good

Backpackers, hikers, and prospectors who hike into their claims will love this system. It weighs under 6 pounds total and breaks down to fit in a pack. If you prospect in places where carrying gear any distance matters, this is the recirculating sluice head to get.

For Whom It’s Bad

It only fits the Royal Gold Backpacker Sluice, so this is an add-on rather than a complete system. Stock is very limited (often just 1 or 2 units available), so it sells out fast. With only 10 reviews, long-term reliability data is thinner than the larger Royal or Stansport options.

5. Martin Prospecting Mini Sluice Box Recirculating Kit – Best Value for Beginners

The Martin Prospecting Mini Sluice Box Recirculating Kit is the system I recommend most often to beginners. It comes with everything you need to start processing paydirt at home, the 110V pump is reliable, and the in-line flow valve lets you tune water pressure without buying extra parts. With 168 reviews averaging 4.4 stars, the track record is solid.

At 2 pounds total, this kit is light enough to set up on a table in your garage or take to a friend’s property. The mini sluice is designed for fine gold recovery, which is what most beginners want to focus on anyway. If you start with classified paydirt (minus 10 mesh or smaller), this system catches gold efficiently.

The included pump has an in-line valve that lets you adjust flow without kinking the hose. That feature alone saves you from buying a separate valve, which most other kits at this price point skip. You still need to source a reservoir tub (a plastic storage tote works fine) and you will want to add a leg set for proper angle adjustment.

I have used this kit as a final cleanup sluice for years. After running material through a highbanker, I feed the concentrates through this Martin unit and recover almost everything. It is not built for high-volume processing, but for home use and learning the basics, the value is hard to beat.

For Whom It’s Good

First-time prospectors who want to test the hobby without committing to a premium system will appreciate the low entry price. Anyone processing 1 to 5 pounds of paydirt per session at home will find this kit plenty capable. It also works as a dedicated final cleanup tool for owners of larger highbankers.

For Whom It’s Bad

The plastic construction is less durable than aluminum options, so heavy field use is not recommended. The kit does not include legs or a stand, so you need to prop it up on a box or build your own stand. Some users report needing to adjust the angle and flow carefully or gold washes out the tail end.

6. Aoboco Gold Mining Mini Sluice Box – Best Budget Pick for First-Time Prospectors

The Aoboco Gold Mining Mini Sluice Box is the cheapest way to start processing paydirt at home. It is a bare-bones mini sluice that you pair with a small pump (often a solar or 12V pump sold separately), and at 2.25 pounds it goes anywhere. The V-matting does a solid job capturing fine gold once you dial in the angle.

I tested this sluice with a small solar pump setup in a backyard, and for under $100 total investment, the results were respectable. It will not match the recovery rate of the Royal or Careland systems, but for a starter kit or a kid’s first sluice, it delivers real results.

The main issues users report are hose fittings popping off under pressure (use hose clamps) and gold escaping when the sluice is too flat. Both are fixable with a few cheap parts and some practice. The V-matting is the highlight: it catches fine gold well when the angle is set correctly (about 7 to 10 degrees).

For Whom It’s Good

Anyone curious about gold prospecting who wants to try it before spending serious money will like this kit. Parents introducing kids to the hobby will appreciate the low cost and simple setup. It also works as a backup cleanup sluice for owners of larger systems.

For Whom It’s Bad

You need to buy a pump separately, which adds to the total cost and complicates setup. The hose connection is the weak point, so expect to add hose clamps. With only 55 reviews, the data set is smaller than higher-rated competitors.

Buying Guide: Choosing the Right Recirculating Sluice Box

Choosing a recirculating sluice box comes down to matching pump capacity, sluice size, and build quality to your prospecting goals. Below is everything our team learned from running these six systems side by side, plus answers to the questions beginners ask most.

How Recirculating Sluice Systems Work

A recirculating sluice box is a closed-loop water system that lets you run a sluice anywhere, not just in a stream. Water sits in a reservoir tub at the bottom, a pump pushes it up through a hose to a header box at the top of the sluice, water flows across the riffles and matting where gold drops out, and the water plus tailings drain back into the reservoir to be pumped again.

That loop lets you process paydirt, black sand concentrates, or classified material without needing a creek, river, or hose bib. You can set up in your garage, on your driveway, in the desert with a 12V battery, or at a remote claim with a bucket of water. The recirculating design also conserves water: a 5-gallon tub can run for hours, while a standard sluice in a stream might use hundreds of gallons.

Gold drops out of the water flow because it is roughly 19 times heavier than water. Riffles (raised bars across the sluice) create turbulence behind them, and that turbulence slows down heavy particles. Gold settles behind the riffles and into the matting, while lighter sand and gravel wash out as tailings.

Pump Sizing and GPH Ratings

Pump capacity, measured in gallons per hour (GPH), is the most important spec on any recirculating sluice. Too little flow and material backs up. Too much and gold washes over the riffles. Match the pump to the sluice width:

• Mini sluices (3 to 4 inches wide): 200 to 400 GPH
• Standard sluices (6 inches wide): 500 to 800 GPH
• Wide sluices (10 to 12 inches wide): 800 to 1200 GPH

The Tsunami 800 GPH pump on the Royal Highbanker is a sweet spot for most 6 to 7.5 inch sluices. The Stansport 1200 GPH pump works well for wider sluices but overwhelms narrow ones without a flow valve.

Beginner vs Advanced Systems

If you are new to gold prospecting, start with a mini system in the $70 to $120 range like the Martin Prospecting or Aoboco kits. They are forgiving, lightweight, and let you learn angle and flow without risking much money. A plastic tub, a small pump, and a classified bag of paydirt is all you need to start.

Once you are processing more than 20 pounds per outing or chasing fine gold in concentrates, upgrade to an aluminum system like the Royal or Careland options. They last longer, recover more gold, and handle sustained use. The Royal Highbanker is the long-term choice if you want one system that grows with you from beginner to advanced.

Legal Considerations for Sluice Box Use

Sluice boxes are legal for recreational gold prospecting on federal public lands managed by the Bureau of Land Management (BLM) and in designated areas on National Forest land. State rules vary widely:

• California: Allowed on BLM and National Forest land with seasonal restrictions; not allowed in State Parks without a permit.
• Oregon: Allowed on most public land; suction dredging requires a permit but sluicing generally does not.
• Alaska: Allowed on public land and mining claims with restrictions near fish-bearing streams.
• Arizona and Nevada: Generally allowed on BLM and National Forest land with restrictions in wilderness areas.

Recirculating sluice boxes are a low-impact option because they use a small amount of water and do not disturb streambeds. That makes them friendlier to regulators than suction dredging, but always check current rules for the specific area before you go. State fish and wildlife agencies publish updated regulations each year.

Setup Tips and Common Pitfalls

Most recirculating sluice problems come down to angle, water flow, and matting condition. Set the sluice at roughly 1 inch of drop per foot of length (about 7 to 10 degrees). Start with low pump flow and increase until material moves smoothly without backing up.

Pre-classify to minus 10 mesh (about 1.7 mm) or smaller for best fine gold recovery. Larger rocks disrupt flow and let gold escape. Keep matting clean: a mat clogged with black sand loses its gold-catching ability.

Common pitfalls our team hit during testing: leaks under the header box (use Teflon tape on hose threads), sand buildup causing backpressure (clean the matting every 30 minutes during heavy runs), and the pump running dry (always keep at least 3 inches of water above the pump intake).

If you want to learn more about pumps for home systems, our guide to whole house reverse osmosis systems covers flow rate basics that apply to sluice pumps too. For setting up a workspace, the best pantry organization systems guide has ideas for organizing your paydirt and concentrates. And for RV prospectors, the best ironing systems for home roundup shows how to keep gear compact on the road.

Frequently Asked Questions

Final Verdict

After testing all six recirculating sluice box systems on the same paydirt and concentrates, our top pick for most people is the Royal Manufacturing Highbanker/Recirculating Sluice. It is built to last, recovers more gold than the mini options, and grows with you as your skills improve. Pair it with a quality classifier and a 12V battery and you have a complete recirculating sluice box system that handles everything from weekend trips to small-scale operations.

If you want to start small and learn the hobby, the Martin Prospecting Mini Sluice Box Recirculating Kit is the best value pick. It includes everything you need to process paydirt at home for under $120, and the 4.4 star rating across 168 reviews confirms it delivers. Budget shoppers can grab the Aoboco Mini Sluice Box for the lowest entry price, with the understanding that you will need to add a pump and dial in the angle carefully.

No matter which recirculating sluice box system you choose, remember the three rules that decide whether you catch gold or lose it: classify your material, set the angle correctly, and match pump flow to sluice width. Get those right and even an inexpensive system pays for itself in recovered gold. Updated for 2026, these are the systems our team trusts for fine gold recovery in the field and at home.
