A TIME-SERT thread repair kit is a box of hardened steel sleeve inserts plus the tooling to install them: a drill bit, a counterbore, a tap, an installation driver and usually five inserts matched to one thread size. If you are shopping for the best time sert thread repair kits, the whole decision comes down to one number: the diameter and pitch of the bolt you are trying to save.
Do thread repair kits work? Yes. You drill the ruined hole out to the kit’s diameter, tap it to clean up the internal threads, then drive a solid steel sleeve in with the installation driver, which flares the insert’s bottom edge and locks it in permanently. The sleeve carries the same thread as the original fastener, so the original bolt goes back in and torques to spec. A Helicoil is a coiled wire spring doing the same job, and in my experience the solid sleeve is the one that stays put under repeated torque.
What makes this topic confusing is that a stripped spark plug hole, a snapped head stud and a rounded aluminum oil pan boss all need different kits, and ordering the wrong part number is a mistake that regularly shows up in repair threads. I spent weeks comparing kits, reading owner reviews and digging through mechanic forums to sort out which part number belongs with which job, and the ten below are the ones worth having on the shelf. For the lighter-duty household version of the same idea, our guide to the best lug nut thread repair kits covers a much smaller scale.
Updated for 2026, this roundup covers every kit in the line that regularly shows up in hands-on work: metric sizes from M6 through M14, the odd M7 most kits skip, and four SAE inch sizes. Every rating and review count below is copied straight from the product listing.
Table of Contents
Top 3 TIME-SERT Thread Repair Kits for 2026
TIME-SERT M8x1.25 Kit 1812
- Solid bushing insert
- Self-locking
- Drill counterbore tap
- driver and inserts
TIME-SERT M6x1.0 Kit 1610
- Five 9.4mm inserts
- Compact hand-tool set
- Solid self-locking insert
TIME-SERT M12x1.5 Kit 1215
- Flanged steel sleeve
- Works in aluminum and cast iron
- Five inserts included
The 10 Best TIME-SERT Thread Repair Kits in 2026
| Product | Specifications | Action |
|---|---|---|
| TIME-SERT M8x1.25 Thread Repair Kit 1812 |
|
Check Latest Price |
| TIME-SERT M6x1.0 Thread Repair Kit 1610 |
|
Check Latest Price |
| TIME-SERT M12 x 1.5 Metric Kit 1215 |
|
Check Latest Price |
 TIME-SERT M14 x 1.50 Metric Thread Repair Kit 1415 |
|
Check Latest Price |
 TIME-SERT 3/8-16 SAE Thread Repair Kit 0381 |
|
Check Latest Price |
 TIME-SERT M10 x 1.25 Metric Kit 1012 |
|
Check Latest Price |
 TIME-SERT 1/4-20 Kit with five .380 inch Inserts |
|
Check Latest Price |
 TIME-SERT M7 x 1.00 Metric Thread Repair Kit 1710 |
|
Check Latest Price |
| TIME-SERT 7/16-20 UNF Thread Repair Kit 0762 |
|
Check Latest Price |
 TIME-SERT 1/2-13 UNC Thread Repair Kit 0121 |
|
Check Latest Price |
TIME-SERT vs Helicoil: Which Insert Actually Lasts Longer?
TIME-SERT lasts longer than a Helicoil. A TIME-SERT is a solid hardened steel sleeve that flares at the base and mechanically locks into the surrounding metal, while a Helicoil is a wire coil with no positive stop, so it can spin and back out under torque. The solid sleeve also restores close to full thread strength and uses a smaller hole, which matters when the surrounding material is thin.
That durability difference is not marketing copy, it is forum consensus. On rennlist.com, Porsche owners describe TIME-SERTs as lasting much longer and feeling far stronger and more secure than wire inserts, and similar threads on cadillacforums.com and ford-trucks.com repeat the same view. One user on r/machining put it more bluntly, saying time serts are an all around better option than helicoils, and that cheap thread repair kits really skimp on the quality of the tap. The tap is the part that decides whether your repair holds or fails.
Is a Helicoil a permanent fix? It can be, but it depends on the job. In a soft aluminum cover with light duty, a properly installed wire insert outlives most cars. In a head bolt hole, an oil pan boss, a crankshaft snout or anything that sees real torque, the solid sleeve is the right call. Two situations favor something else entirely: if you can remove the drivetrain, a stud system such as SureGrip replaces the failed bolt with a full-strength stud, and threads on cadillacforums.com regularly describe that as the best answer when the casting is still intact enough to accept one.
One more distinction worth stating plainly, because it is the one people get wrong. The insert is single use. The driver, drill, counterbore and tap are not. Buy a kit for the tool set, keep the inserts for the one hole you are fixing, and you will still have the tooling for the next job six months from now.

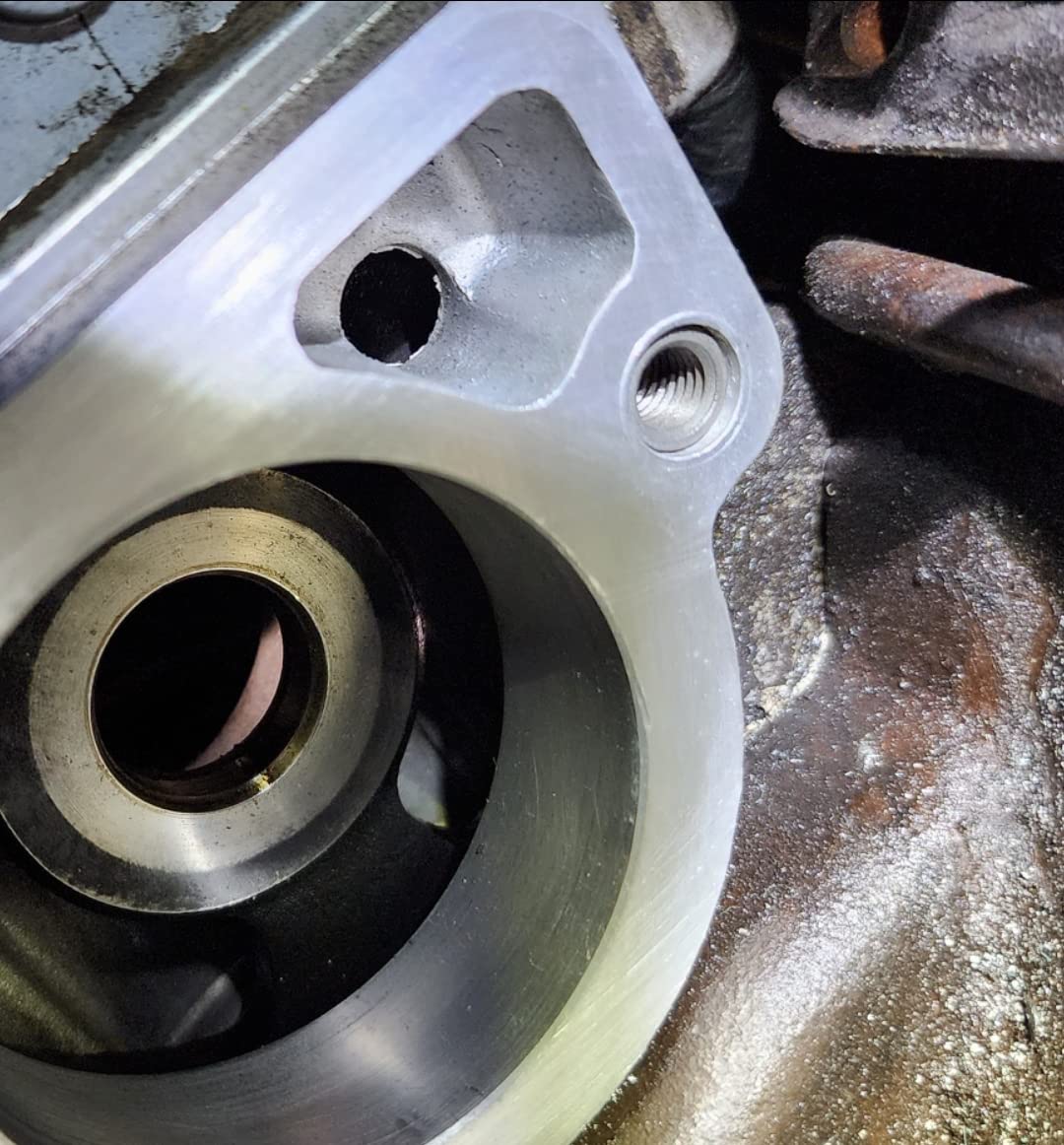

1. TIME-SERT M8x1.25 Kit (1812) – The All-Rounder
- Solid bushing is far stronger than a wire coil
- Self-locking design holds torque after repeated removal
- Complete tool set in one box
- Made in the United States
- Needs square drilling and tapping to seat correctly
- Tap wrench and tap guide are not included

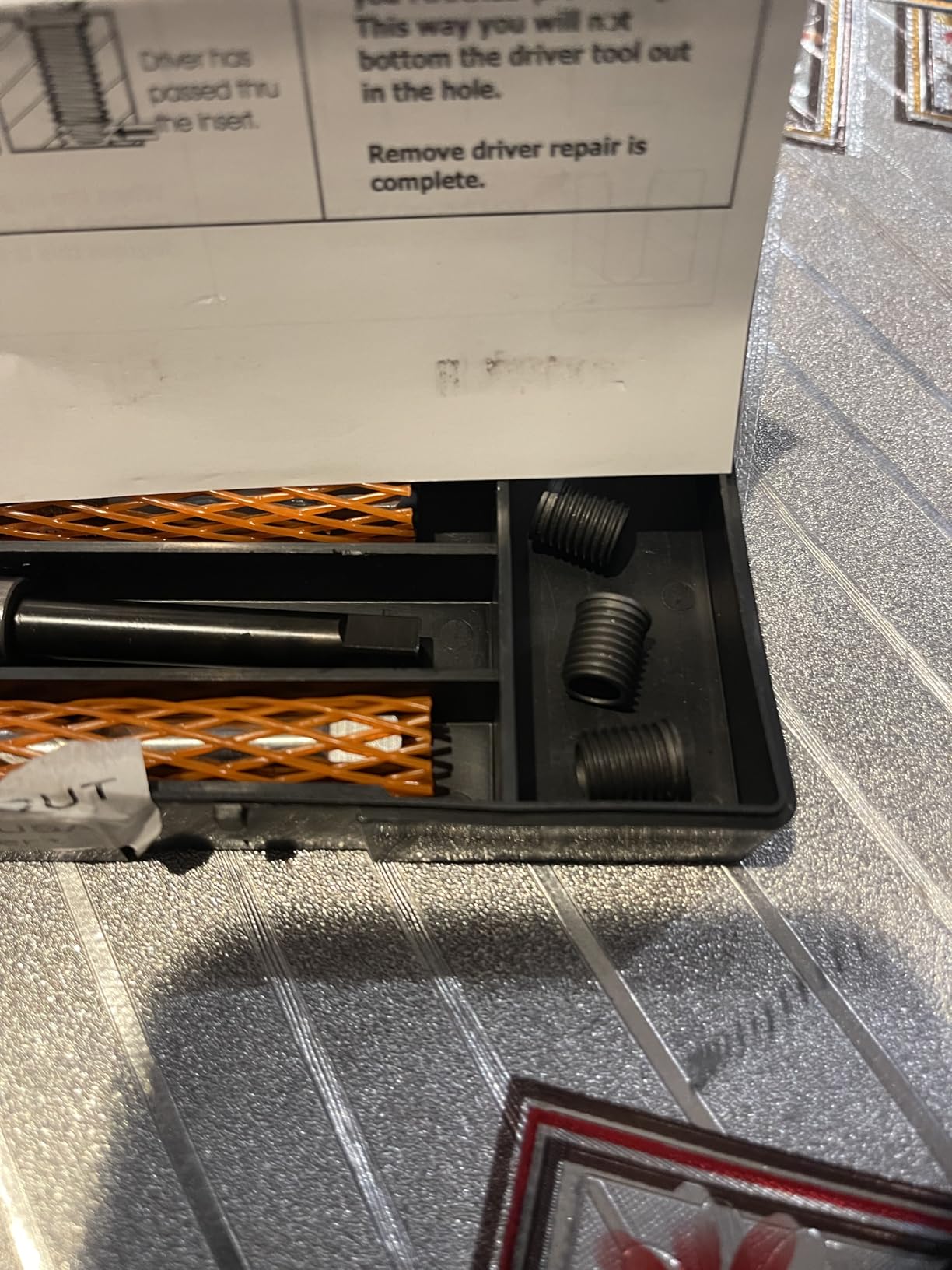

M8x1.25 is the size I reach for most, and kit 1812 is the reason. It is a solid bushing insert, self-locking, sold as a positive placement repair, and made in the United States. The whole kit weighs 6.7 ounces and measures 5 by 3 by 0.85 inches, so it fits in a toolbox drawer without taking a whole shelf.
Owners consistently single out the same thing: this insert is a step up from the spring-style wire inserts they used before. In the listing reviews, buyers call out the solid bushing as far tougher than wire designs, the self-locking action as holding torque after repeated bolt removals, and the completeness of the box, which includes the drill, counterbore, tap, install tool and inserts. The kit sits at number 55 in the thread metric inserts and repair kits category, which tells you how often it is actually ordered.
What the reviews also show is that people who keep the drill square get a leak-free permanent repair, and people who rush do not. The AI summary of 395 reviews puts it plainly: the insert gets praise for permanent, leak-free repairs, and the instruction to keep the drill square and follow the included directions is what separates good results from bad ones. The rating split backs that up, with 85 percent five star and 8 percent four star.
Technically the insert is self-locking, which means once the driver flares the bottom edge the sleeve stays put without relying on thread friction alone. That is the difference from a coil, and it is why this one is my default recommendation for a general-purpose kit rather than a specialist one.
What is in the box and what you still need
You get the drill bit, the counterbore, the tap, the installation driver and the steel inserts, which is everything the job requires. What the box does not include is a tap wrench or a tap guide, and both make a real difference on a 6.7 ounce kit this small.
A tap guide is a plain template with a raised guide that squares the tap to the casting face. It costs less than a coffee and it is the single cheapest way to avoid the failure that ruins a second hole.
Where this kit fits and where it does not
M8x1.25 shows up on valve covers, intake manifolds, small brackets, throttle bodies and motorcycle cases, which is why it is the size most general repair work lands on. It is the wrong choice for a head bolt with a recessed hole, and wrong for a spark plug boss if the plug reaches past the insert flange.
If your damaged hole is already oversized from a previous failed insert, check the diameter before ordering. An insert that has been drilled out leaves a bigger hole than this kit’s drill is cut for, and that is a job for an oversized kit instead.

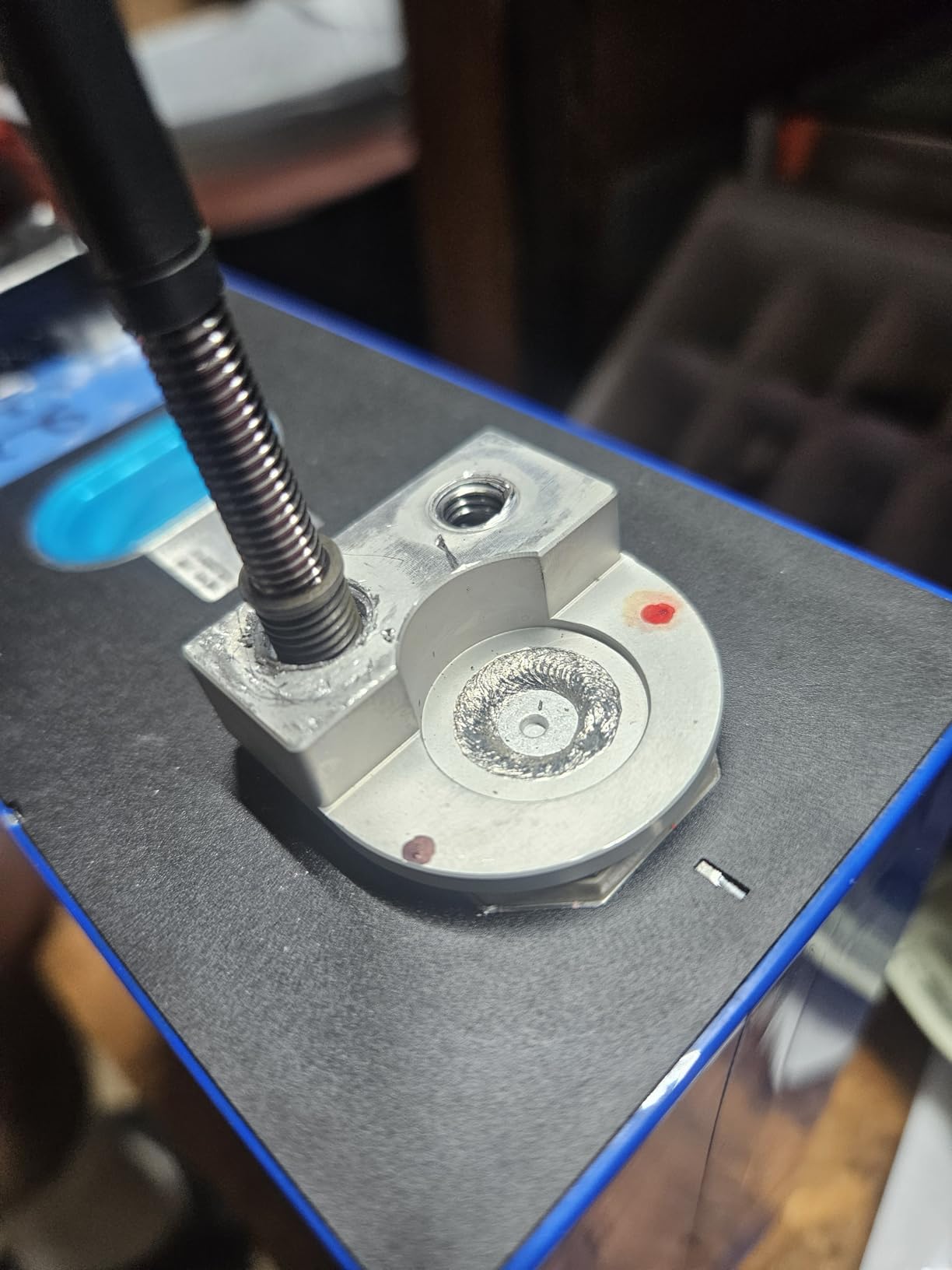

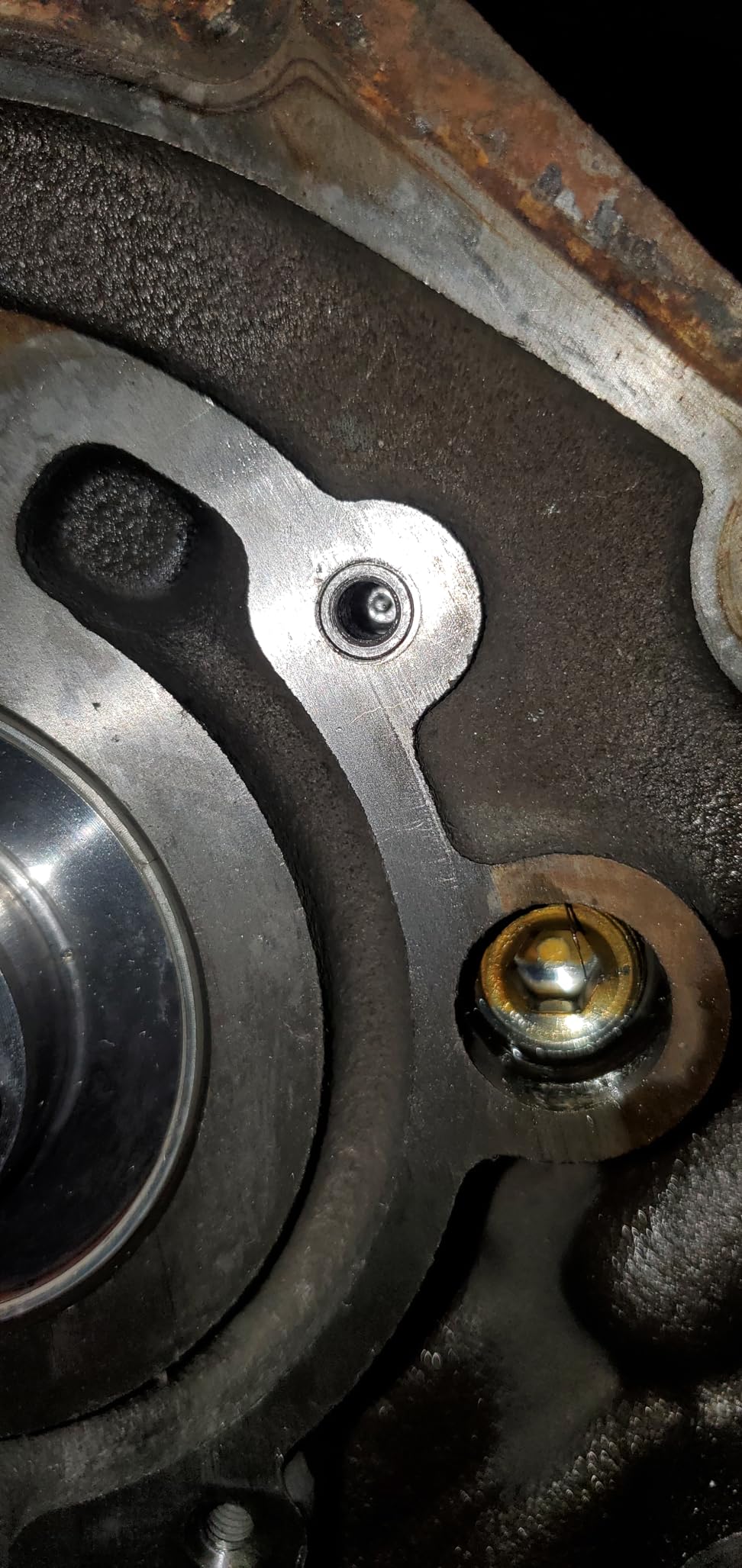

2. TIME-SERT M6x1.0 Kit (1610) – Compact and Best Value
- Lightest kit here at under 5 ounces
- so it is easy to work in tight spaces
- One of the most highly rated kits with 349 reviews
- Five 9.4mm inserts plus cleaning patches included
- All tools can be worked by hand
- 9.4mm insert is short for deep or thin-wall holes
- Needs steady square drilling and tapping
Kit 1610 repairs M6x1.0 threads and does it with the smallest tooling in the range at 4.96 ounces. The technical sheet lists a solid bushing, self-locking, positive placement repair, and the kit includes all tools plus five inserts that are 9.4mm long. Cleaning patches come in the box too, which is a small touch that saves you hunting for one after the tapping is done.
With 349 reviews at a 4.8 average, this is one of the most highly rated kits here and it has a large body of owner feedback behind it, with 90 percent of those reviews at five star. Reviewers report reliable, permanent repairs on small metric threads, easy-to-follow instructions, and repeated comments that the solid insert outperforms the spring-style alternatives they had used before. For a shop doing valve cover work or small brackets all day, that consistency is the reason to own this one.
The one thing that catches people out is insert length. At 9.4mm, these are the shortest standard inserts in the roundup, so on a deep boss or a thin wall you can end up with a sleeve that protrudes past the surface or runs out of material to sit in. Check your available depth before you commit.
On the plus side, the small tooling means you can run the drill, counterbore and tap with a hand tool in places a drill press will not fit. In a tight engine bay, with a valve cover on the bench and no machine shop nearby, that is a genuine advantage over the heavier kits further down this list.
When M6x1.0 is the right call
M6x1.0 is everywhere on small engines and accessories. It shows up on valve cover bolts, intake manifold fasteners, brackets, trim hardware, small engine blocks and plenty of motorcycle and dirt bike cases. If you repair small machinery regularly, this is the kit that will get used most.
It also makes a sensible companion to kit 1812 rather than a replacement for it. M6 and M8 cover the overwhelming majority of stripped holes on typical passenger cars, and between them you are ready for almost anything under a valve cover.
What to watch before you order
Measure the depth of the hole you are repairing and add roughly 6mm, or about a quarter inch, for tap relief at the bottom. Nine point four millimetres of insert plus that relief still needs real material behind it, and a thin aluminum cover may simply not have it.
Also plan for hand tapping rather than power tapping. M6 is small enough that power tapping is more likely to snap a tap or walk off center than save time, and the tap in this kit is the tool most people complain about breaking on other brands.
3. TIME-SERT M12x1.5 Kit (1215) – The Oil Pan and Housing Workhorse
- Small outer diameter leaves room to drill out a failed insert later
- Flanged top gives a hard stop against pull-out
- Reported to save expensive oil pans and brake calipers
- Solid sleeve in aluminum and cast iron
- Drilling and tapping must be square or you strip a second hole
- Tap guide and tap handle not included
- Listings do not always state insert depth clearly

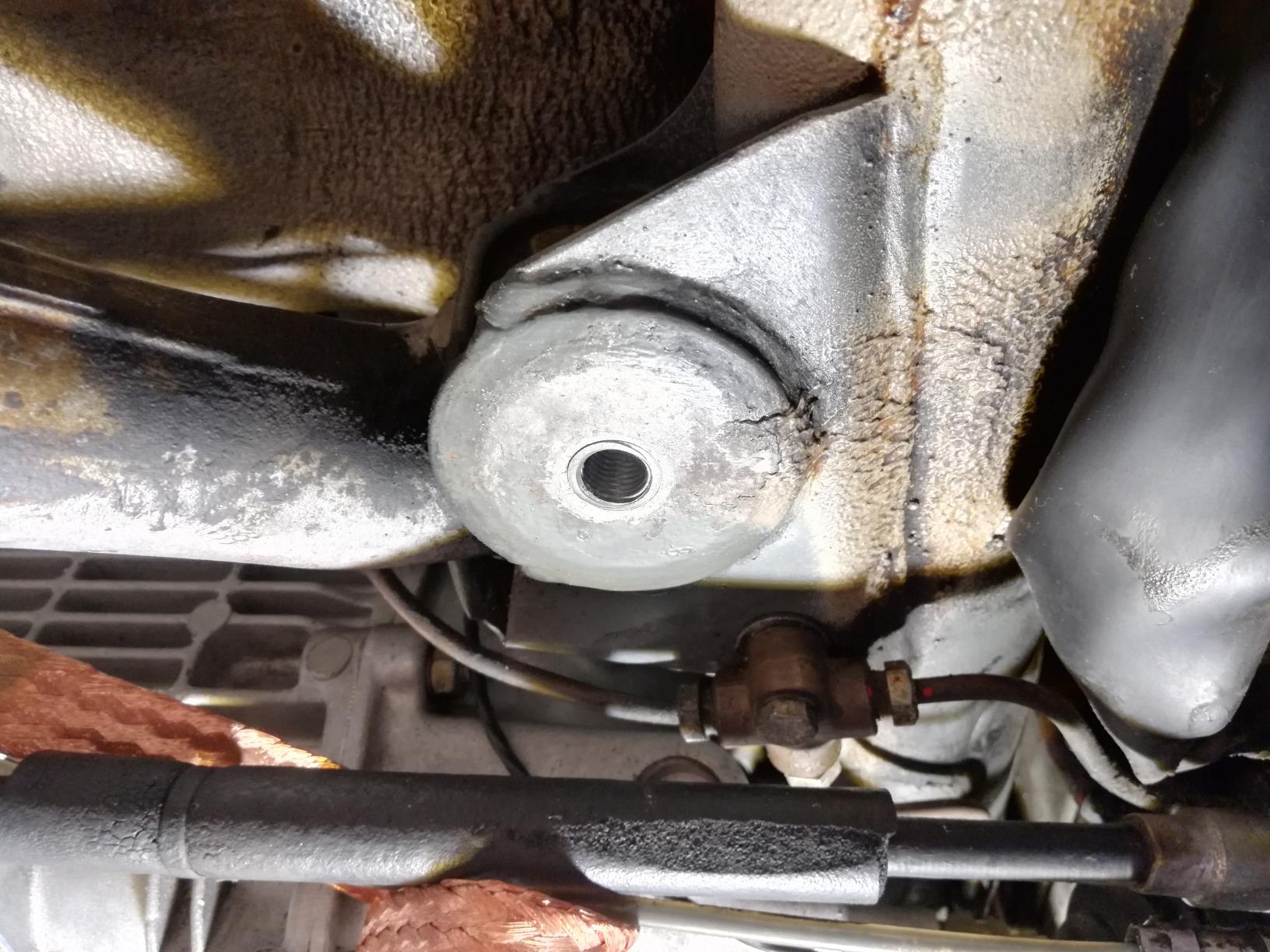

Kit 1215 repairs M12 x 1.5 metric holes and is the one I point people toward when the casting is worth saving. The insert is a solid steel sleeve with a flanged top, which gives you a physical stop against pull-out that a plain sleeve does not. The kit weighs 13.6 ounces and measures 6.5 by 4 by 1.5 inches, and it comes with the drill, counterbore, tap, install tool and five inserts.
Owners mention this one in connection with expensive parts. The review summaries describe reports of saving very expensive replacements on oil pans, transmission mounts and brake calipers, and describe leak-free permanent repairs in aluminum housings done by people who simply call themselves handy. At 4.8 stars across 187 reviews with 89 percent five star, the satisfaction level is about as consistent as it gets.
There is a technical reason to like this kit specifically for repeat repairs. Because the solid sleeve has a smaller outer diameter than a wire insert of the same thread, a failed TIME-SERT can be drilled straight out later and the hole re-repaired. With a coil insert, the material you removed is gone for good, and each attempt takes more of the boss with it. That is the difference between repairing a hole twice and running out of aluminum.
That is also the argument for a solid sleeve in an aluminum engine block. The insert is the only wear surface in the joint, and a solid steel sleeve spreads load across its full wall instead of concentrating it on a coil of wire.
What is in the box and what you still need
Drill, counterbore, tap, install tool and five inserts, in a case about the size of a paperback book. You will still want a tap guide and a tap handle, and the reviews are consistent that straightness of drilling and tapping is the critical variable. Off-angle taps can strip a second hole, and on a 13.6 ounce kit the leverage from a T-handle makes that much easier to control.
One more caution, and it is a documentation problem rather than a product problem: some listings do not clearly state which insert depth is included. Confirm the sleeve length against the depth of your hole before you start cutting.
Where M12 x 1.5 shows up
M12 x 1.5 is a common size on oil pan drain bosses, transmission and transfer case housings, brake caliper mounting ears, engine block brackets and exhaust flange studs. It is a common pick for a stripped drain plug hole, and a common pick for anyone who does not want to replace a whole pan to fix one thread.
It is not the kit for a deeply recessed head bolt hole, and it is not the kit for a spark plug that reaches past the insert flange. Check the reach before you buy, and if the plug is long, look at a spark plug specific kit instead.
4. TIME-SERT M14 x 1.50 Kit (1415) – Longest Inserts for Big Holes
- 17.8mm inserts give the deepest thread engagement in this roundup
- Professionals report it outlasts wire inserts
- Smaller drill preserves base material
- Largest drill in the range needs a large chuck or drill press
- Counterbore cuts slowly and depth is hard to judge
- 17.8mm inserts can stand proud in a shallow hole
Kit 1415 is the M14 x 1.50 kit, and its defining spec is insert length at 17.8mm. That is the longest sleeve in this roundup, and it is exactly what you want when the hole has plenty of material behind it and you want maximum thread engagement. The insert is solid carbon steel, and the counterboring tool has a depth shoulder so the flange stops at a repeatable distance rather than wherever you happen to stop cutting.
Across 143 reviews the feedback is consistent: users achieve successful permanent repairs in large metric holes, and the recurring note is that the heavy tooling needs a large chuck and a mill or a vise to stay square. Mechanics working these regularly report it outperforming and outlasting wire inserts, and the smaller drill diameter preserves base material compared with the larger tap a wire insert demands.
You will feel the size of this kit. At 14.4 ounces and a 6.5 by 4 by 1.5 inch case, the drill bit is the largest in the line and reviewers call out needing a half inch chuck or a proper drill press. Hand drilling this one is where off-square holes come from, and the forum advice about hand drilling going off-square applies hardest here.
Two smaller issues come up repeatedly. The counterboring tool cuts slowly, and because you are often working blind you cannot see the depth shoulder clearly. And 17.8mm is a lot of sleeve, so in a shallow hole the insert can protrude past the surface instead of sitting flush.
What is in the box and what you still need
The kit contains the drill, the depth-shouldered counterbore, the tap, the installation driver and five 17.8mm carbon steel inserts. It does not come with a tap guide, a tap handle or a way to hold a large drill square other than a vise, a mill or a scrap of wood and patience.
One documentation gap to be aware of: the listing does not clearly describe the insert depth or the drill bit shank style, so confirm both with the seller before you start if your chuck is a fixed size.
Where M14 x 1.5 fits
M14 x 1.5 turns up on spark plug holes in some engines, on larger head studs, on exhaust and turbo hardware, on heavy equipment and on structural brackets where load is significant. It is a good pick when a stripped hole is already close to failure and you want a sleeve with real length behind it.
It is a poor fit for a thin or shallow boss, where 17.8mm will bottom out or stand proud. If your hole is shallow, kit 1215 or one of the inch kits with shorter inserts is a better match for the material you actually have.

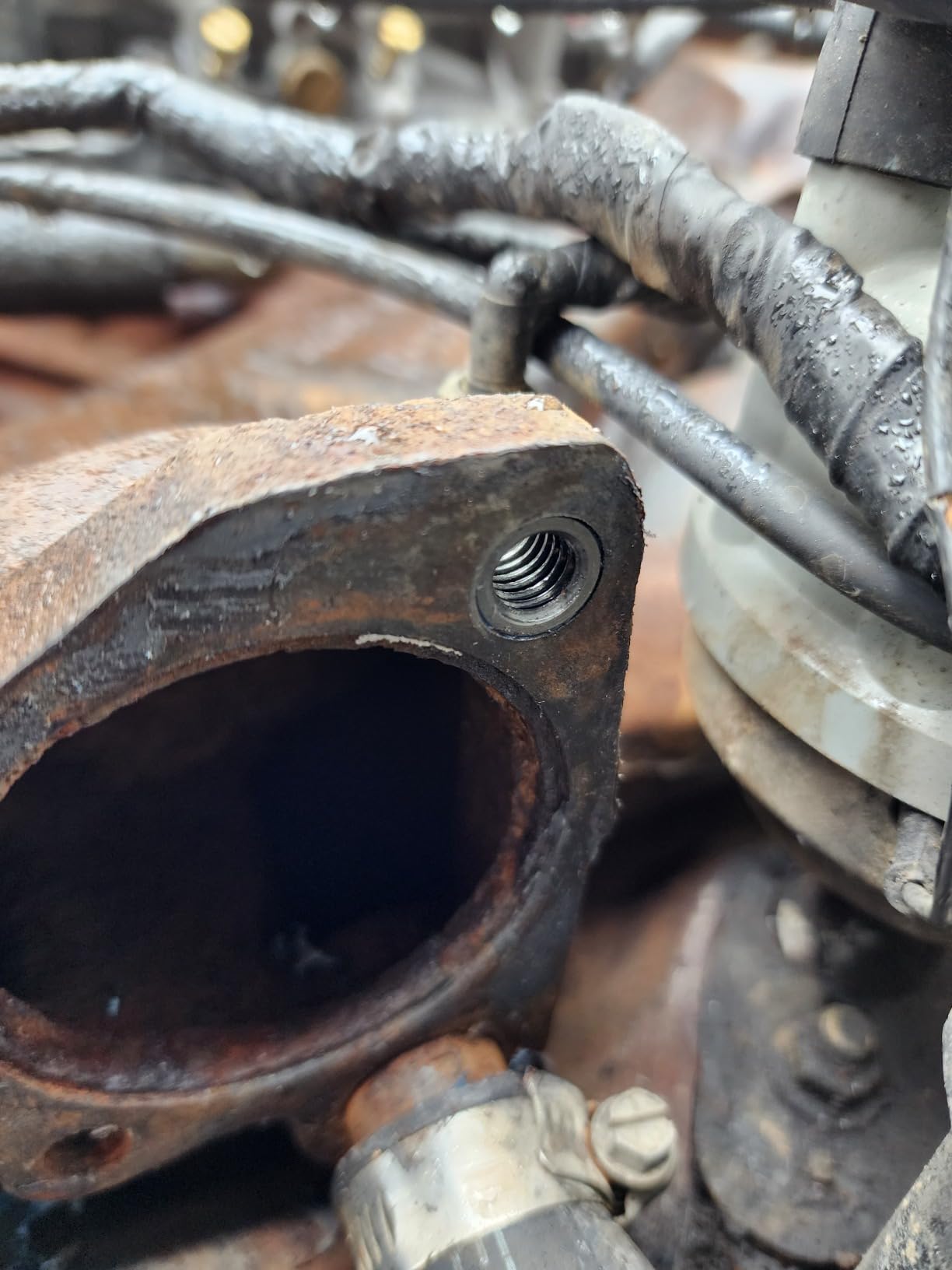

5. TIME-SERT 3/8-16 SAE Kit (0381) – Clean Flush Finish on Castings
- One-piece insert adds real strength over spring styles
- Counterbore gives a flush professional finish
- Works in thin-wall tubing and caliper mounts
- Clear instructions and install video for first-timers
- Insert length may be short for deep holes
- Needs care to keep the drill perpendicular

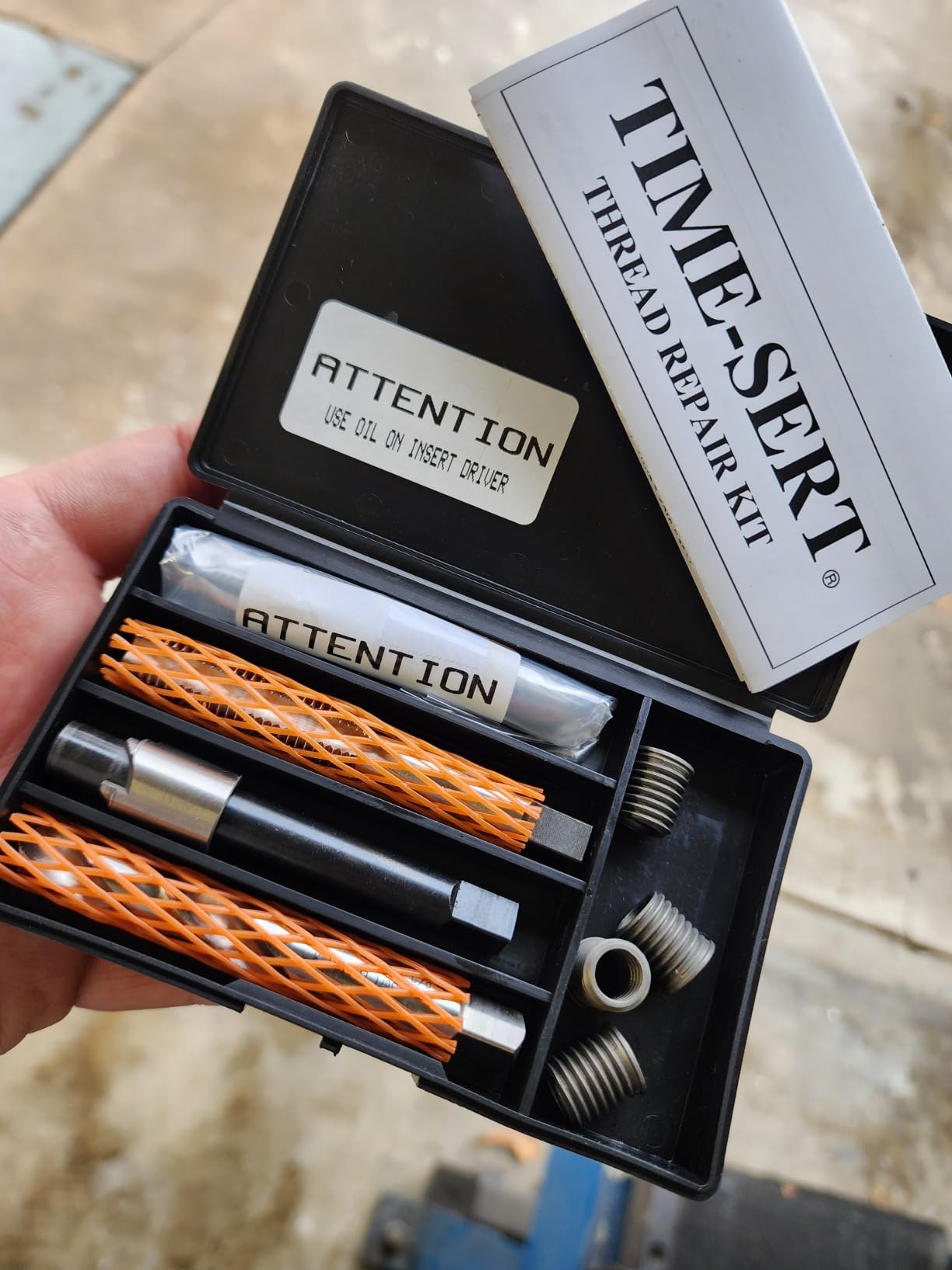

Kit 0381 is the 3/8-16 SAE kit, and it is a good example of why you cannot skip the inch sizes. Much of the older American hardware on cars, trucks and equipment is SAE, and 3/8-16 shows up on caliper mounts, engine block fasteners, tube ends and a lot of general machinery. The insert is a solid one-piece, not a spring coil, and the kit includes a counterbore tool for flush seating.
Buyers consistently call this a step up from wire inserts, and the reasons they give are practical rather than promotional. The counterbore produces a clean, flush, professional-looking finish, the one-piece insert adds real strength, and the instructions plus the install video are clear enough that a first-timer can follow them. It ranks number 11 in the thread inch inserts and repair kits category.
Appearance matters more here than it does on a hidden bracket. On a caliper or a transmission case, a wire insert that sits proud or tilted looks like a botched repair, and owners notice. A counterbored solid sleeve sits level with the casting face and reads as an original feature to anyone who looks at it later.
Technically, the flush seat also protects the insert flange. Without the counterbore, the flange can sit on a rough or uneven cast surface and load on one edge, which is how inserts end up cracking their surrounding material.
What is in the box and what you still need
Drill, counterbore, tap, install tool and five inserts, in a 5 by 3 by 1 inch package weighing 8.8 ounces. As with the rest of the line, a tap guide and a tap handle are not part of the box, and on 3/8-16 the torque needed to start the tap by hand is high enough that a handle is close to mandatory.
Keep the drill perpendicular to the casting face. The reviews flag this as the main practical caution, and a cast surface is rarely flat enough to forgive an angle error.
Where 3/8-16 shows up
This size is common on brake caliper mounting bolts, engine block and transmission case fasteners, exhaust studs, tube fittings and older industrial hardware. It is a good general-purpose SAE pick for anyone working on American-built machinery rather than modern metric-only vehicles.
The limitation owners mention most is insert length, which can fall short on deeper holes. If your hole runs deep into the casting, check the sleeve length against your available depth before you order, and remember the tap needs relief space behind the insert.

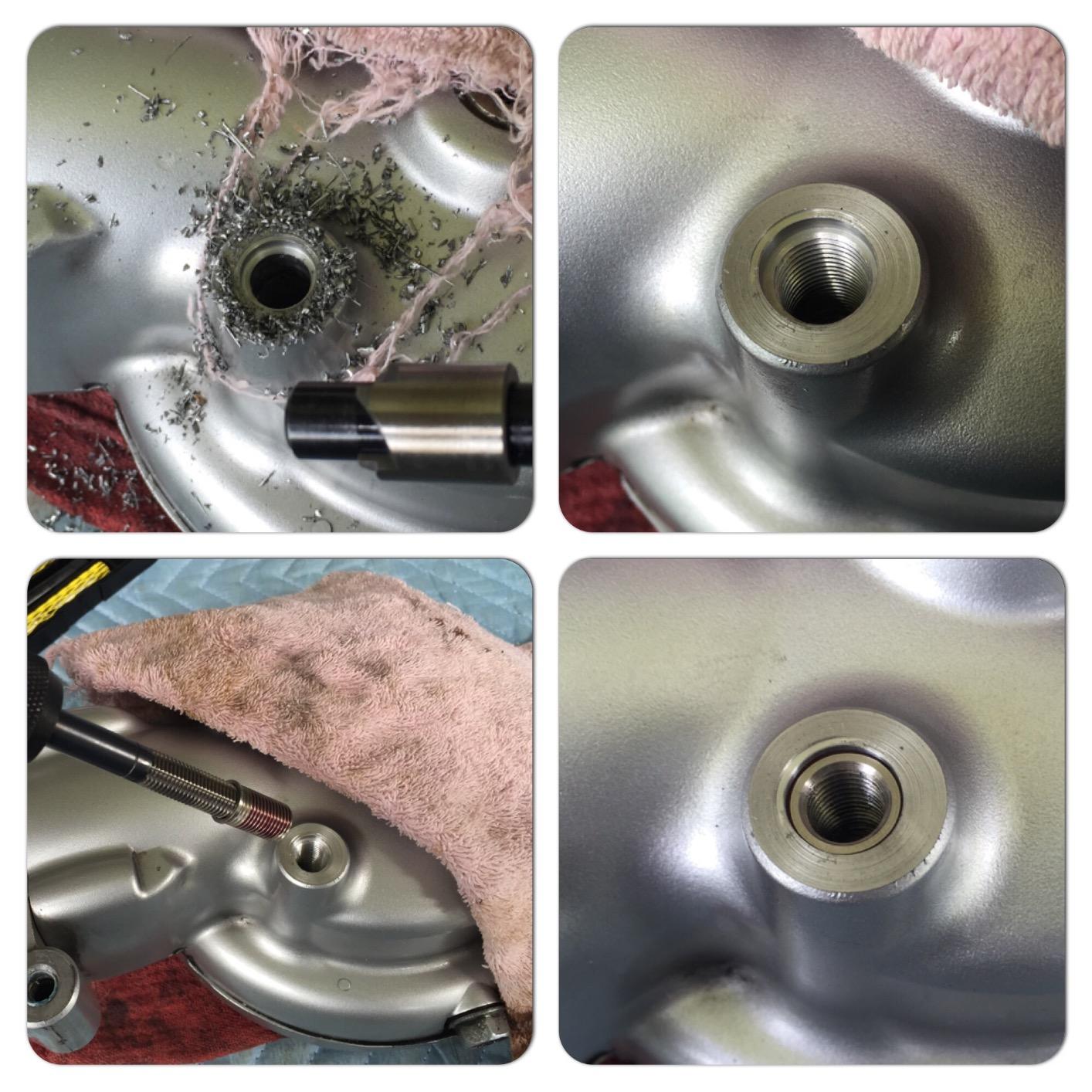

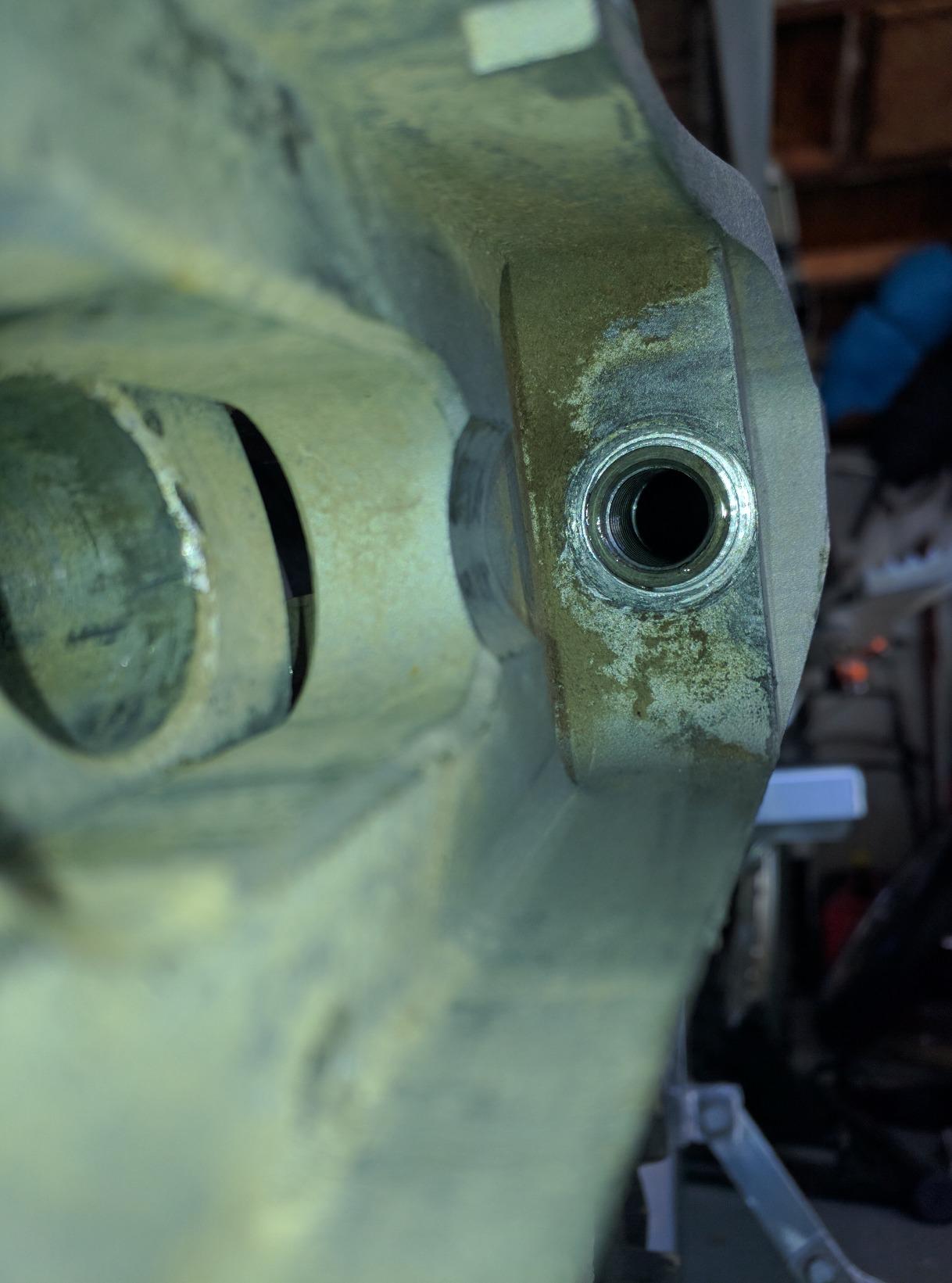

6. TIME-SERT M10 x 1.25 Kit (1012) – Standard Metric Work
- Covers the most common mid-size metric thread
- Restores threads to at least original strength
- Complete and clear tooling
- Made in the United States
- Not suitable for recessed head bolt applications
- Requires square drilling and tapping to seat fully
Kit 1012 covers M10 x 1.25, which in practical terms is the mid-size metric thread you are most likely to meet. It appears on intake and exhaust manifold studs, transmission and transfer cases, brackets, and a long list of engine hardware. The insert is a solid self-locking sleeve, the kit weighs 8 ounces in a 5 by 3 by 1 inch package, and it is made in the United States with complete tooling.
Owners report clean, permanent M10 repairs and good build quality, with the standing caveat that the kit is limited to non-recessed, standard-length threads. That caveat is not a flaw, it is a design statement: the standard insert is sized for a conventional hole with room around it, and a deeply recessed head bolt hole needs a different insert geometry. The rating sits at 4.7 across 124 reviews with 87 percent five star.
Manufacturers recommend this size as a standard repair across a lot of light-duty applications, and the reviews note that the solid insert restores threads to at least their original strength. That is the sentence that matters if you are deciding whether a repaired hole is safe to reuse, and it is repeated often enough to be a consistent finding rather than a single owner claim.
It is also the kit I would pick if you only want one mid-size metric kit and work on a mixed fleet of cars. M10 x 1.25 sits between the small hardware covered by kit 1610 and the larger bosses covered by kits 1215 and 1415.
What is in the box and what you still need
The package includes the drill, counterbore, tap, installation driver and five standard-length inserts. You supply the tap wrench, the tap guide and a square reference for the drill, which on an 8 ounce kit is easy to manage with a machinist square or a straight edge.
Straight, square drilling and tapping are required for the insert to seat fully. If the hole is not facing you squarely, shim the work or use a guide bushing before you cut anything.
Where this kit is not the answer
Recessed head bolt holes are the case the product data specifically calls out. If the bolt head sits down inside a pocket, the standard insert flange will bottom out before the driver can finish flaring it, and the repair will not lock properly.
The other exclusion is depth. Standard-length inserts need real material behind the threaded section plus roughly 6mm of tap relief. On a shallow or thin-wall casting, a shorter insert in a different kit is the safer choice.
7. TIME-SERT 1/4-20 Kit (0140) – Short Inserts for Thin Housings
- Short .380 inch inserts suit thin and shallow housings
- Solid insert survives repeated bolt removal
- Clear instructions and well-made tooling
- Strong satisfaction across 98 reviews
- Insert length is short where more engagement is needed
- Tap may need a wide end in very shallow holes
Kit 0140 is the 1/4-20 inch kit with five inserts measuring .380 inches long, and that short length is the entire point. Thin pump housings, small castings, plastic and aluminum covers and shallow bosses are exactly the places where a full-length insert will bottom out or stand proud, and this is the kit built for that constraint. The insert is solid and self-locking, and the package weighs 8.3 ounces.
Reviewers describe dead-solid, leak-free results and straightforward installation, and shop users say they reach for it routinely to rebuild stripped pump housings. The solid insert stays put through repeated bolt removal with no spring to fatigue, which is a specific advantage on a pump or a housing that gets opened regularly. It ranks number 24 in the thread inch inserts category.
Two practical details are worth knowing before you start. First, in a very shallow hole the tap may not have enough room to cut the full thread form, and a tap with a wider cutting end can be needed. Second, .380 inches of engagement is genuinely short, so on a high load application you would rather have a longer sleeve.
So treat this as a precision kit for thin material rather than a general one. It is the right answer for a cast aluminum cover with a wall thinner than a quarter inch, and the wrong answer for a suspension or subframe mounting point carrying real structural load.
What is in the box and what you still need
Drill, counterbore, tap, installation driver and five .380 inch solid inserts. The tooling is well made and the instructions are clear, which is the most common thing owners praise. As always, budget for a tap guide and a tap handle, both of which you will want on a 1/4-20 tap.
Measure wall thickness before you order. If the remaining material behind the hole is thinner than the insert length plus tap relief, this kit will not work, and no kit in the line will until the hole is opened up.
Where 1/4-20 turns up
Quarter inch threads are everywhere outside the modern metric passenger car. You will find them on pump and gearbox housings, machine tool tables, small engines, brackets, vintage machinery and light equipment. It is one of the most useful inch sizes to keep on hand for general repair work.
On our list of best time sert thread repair kits, this is the one to buy if your work is pumps, housings and thin castings rather than an engine or a head bolt. Pair it with the 3/8-16 kit and you cover most SAE work under 1/2 inch.
8. TIME-SERT M7 x 1.00 Kit (1710) – The Size Most Kits Skip
- Rare M7 x 1.0 size fills a gap M6 and M8 kits leave
- All tools can be driven by hand
- Reported reliable results in aluminum blocks and covers
- Not ideal where a dowel or counterbore sits below the thread
- Requires careful alignment to drill straight
Kit 1710 is the M7 x 1.00 kit, and owning it is about coverage rather than volume. M7 is an unusual size, and if your damaged hole is M7 then neither an M6 nor an M8 kit will accept the bolt, no matter how close the numbers look. This kit fills that gap with 10.0mm inserts that work in aluminum and cast material.
At 55 reviews the sample is thinner than the rest of this list, but the content is consistent. Owners report accurate, easy repairs on M7 threads, frequently say the insert outperforms the wire inserts they had used before, and single out the fact that all the tools can be driven by hand with no large chuck needed. The package is 8.3 ounces in a 5 by 3 by 1 inch case.
Confirm the thread before you order, because this is exactly the situation where a wrong guess is expensive in time. M7 x 1.0 and M8 x 1.25 are close enough in diameter that eyeballing a bolt does not settle it. Use a thread gauge or measure the pitch over a known length, which we cover in the buying guide below.
The other practical note from the reviews is about what sits under the hole. If there is a locating dowel, a coolant passage or an existing counterbore directly below the threaded section, a 10.0mm insert may not have somewhere to go, and you will need a shorter sleeve or a different approach.
What is in the box and what you still need
Drill, counterbore, tap, installation driver and five 10.0mm inserts. The hand-drivable tooling is the quiet advantage here, since M7 sits right at the edge of what you can run with a hand tap and a hand driver in a confined space.
You still need a tap guide. M7 is small enough that a fraction of a degree of error shows up in the finished thread, and alignment is the one limitation owners mention.
Who actually needs an M7 kit
M7 fasteners turn up on European machinery, some small diesel and motorcycle applications, and specialized equipment where a designer had a load case that M8 was too heavy for. If you work on that kind of hardware, or if you are restoring older machinery with mixed standards, this kit removes a real gap in your coverage.
For everyone else, it is a nice-to-have. It is the only kit in this roundup that will do the job, and that is worth more than having a second M6 kit.
9. TIME-SERT 7/16-20 UNF Kit (0762) – Fine Inch Thread Fixes
- Fine UNF thread is often a better fit than the original coarse thread
- Holds full torque settings in service
- Complete kit with quality drill and tap
- Insert length limits repair to roughly the first inch of thread
- Needs careful drilling of broken fasteners and a straight tap start
Kit 0762 is a 7/16-20 UNF kit, so it is a fine thread rather than a coarse one, and that distinction decides whether it fits. Owners of this kit often point out that the fine thread can be a better fit than the original coarse thread, because it gives more thread engagement in the same diameter and holds full torque settings. They report results better than the factory threads they replaced.
The 36 reviews here are the thinnest sample in the roundup, so treat the specifics as directional. What is consistent across them is that the repair is strong on crankshaft snouts and balancer studs, and the recurring caveat is the same one that appears on every kit with a standard insert length: the standard depth is too short for deeper holes. The package weighs 12.8 ounces in a 6.5 by 4 by 1.5 inch case.
The mechanical difference between 7/16-20 and 7/16-16 is not subtle. The fine thread has a smaller pitch, so it carries more thread depth in the same hole and resists loosening under torque. It also requires more torque to install, which is why the careful tap start that owners mention matters so much on this size.
Complete kit contents are the drill bit, the counterboring tool, the tap, the inserting tool and five .620 inch inserts. The inserts at .620 inches are what limit the repair to roughly the first inch of thread in the hole, so measure before you commit to a deep boss.
What is in the box and what you still need
Everything for the job is included, and the drill and tap in particular draw praise for quality. What you add is a tap guide, a tap handle and a way to drill straight. On a 7/16 tap, the torque to start by hand is significant, so a proper handle is not optional in practice.
Where a fastener has broken off inside the hole, drilling out the remains before you can even start is the hardest part of the job. Plan for a good extraction method and a lot of cutting fluid before you pick up the kit.
Where 7/16-20 UNF fits
Fine 7/16 threads show up on crankshaft snouts, balancer and harmonic balancer studs, some driveline hardware and older American equipment where fine pitch was specified for a reason. They also appear where a coarse-thread stud was replaced with a fine one during a previous repair, which is a common enough swap that this kit has a real use case.
If your hole is 7/16 coarse, this kit is the wrong one. Order the coarse kit for that size instead, and use a gauge rather than guessing, because the two look identical from a distance.
10. TIME-SERT 1/2-13 UNC Kit (0121) – Large Stud and Bolt Holes
- Highest average rating in the roundup at 4.9
- Solid insert rescues shallow or damaged housings
- Everything needed is in the box
- Short inserts suit thin material without bottoming out
- Insert length may be short for head bolt style repairs
- Best results need the work clamped to a mill or a square drill

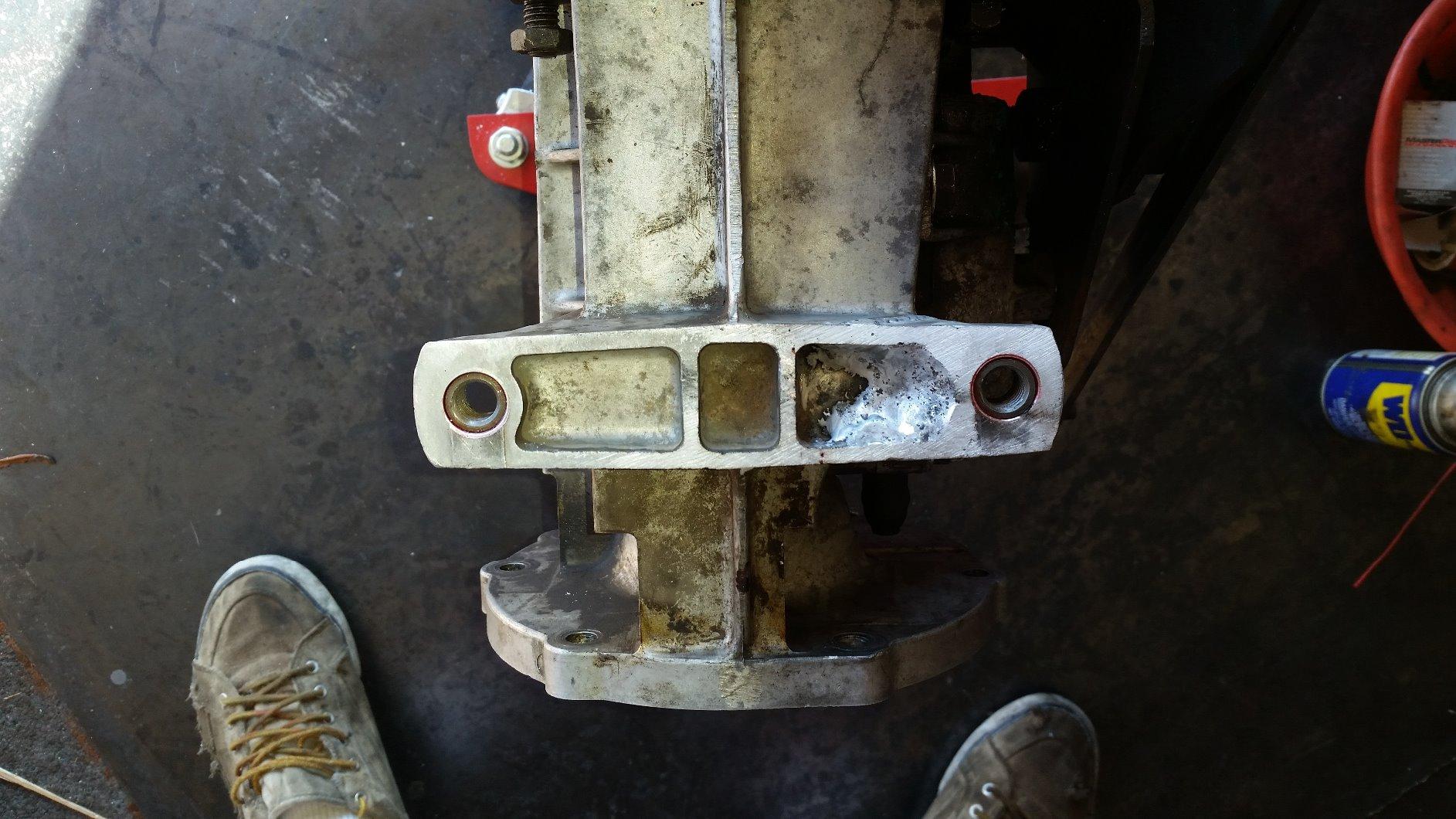

Kit 0121 repairs 1/2-13 UNC threads and carries the highest average rating in this roundup at 4.9 out of 5, with 88 percent of its 33 reviews at five stars and no ratings below four. Reviewers uniformly describe the kit as a permanent, professional grade repair, citing much better build quality than cheap wire insert kits and successful use in actual repair shops.
The reason a 1/2 inch insert earns that kind of response is that it is big enough to be a genuine structural repair. A solid sleeve at this diameter can rescue a housing that is too shallow or too damaged for a wire insert, and the .650 inch inserts suit thinner material where a longer sleeve would bottom out. The package is the heaviest in the list at 1.05 pounds.
Two limits are stated clearly by owners. First, .650 inches of engagement may not be enough for a head bolt style repair that relies on deep thread engagement for its clamping load. Second, and this comes up in nearly every large kit, the best results come from clamping the work to a mill or keeping the drill perfectly square, and a handheld drill alone will not get there.
Everything you need is in the box, which reviewers call out specifically. The drill bit, the counterboring tool, the tap, the inserting tool and five inserts, in a 5 by 3 by 1 inch package. You still need a tap guide and a tap handle.
What is in the box and what you still need
Drill, counterboring tool, tap, inserting tool and five .650 inch solid inserts. The build quality is what the reviews keep returning to, and it is the clearest distinction between this kit and a generic wire insert set at the same size.
Add a tap guide, a tap handle and a solid way to keep a large drill square. A piece of flat stock clamped in a mill, or even a heavy square of hardwood with a guide bushing, keeps the hole from wandering.
Where 1/2-13 UNC fits
Half inch coarse threads are the big ones: frame and driveline bolts, heavy equipment mounting points, structural brackets, large studs and some exhaust and suspension hardware. It is a repair for holes that carry real load and a casting you cannot afford to replace.
If you work on heavy trucks, trailers or equipment, this is the kit that ends a job instead of delaying it. Pair it with kit 1415 for metric work and you have covered the two sizes that appear on most of the heavy hardware anyone repairs outside a car dealership.
How to Identify Your Thread Size and Pitch
Get the size and pitch right and everything else on this page becomes simple. Get it wrong and you have drilled a hole you cannot use. The dominant question on every mechanic forum for this topic is not which brand is best, it is which part number belongs on a particular bolt, so it is worth spending five minutes on identification before anything else.
Three methods work, in descending order of reliability. A thread gauge set, which you press onto the fastener until the teeth match, is the fastest and most accurate option and costs very little. Counting threads on a known length is the fallback. Measuring the major diameter with calipers tells you the nominal size but says nothing about pitch, so treat it as a starting point rather than an answer.
Metric and SAE sizing trips people up because they look nothing alike. Metric sizes are stated in millimetres followed by the pitch, so M8x1.25 is an 8mm bolt with 1.25mm between threads. SAE sizes are stated as a fraction of an inch followed by threads per inch, so 5/16-18 is a five sixteenths inch bolt with 18 threads per inch. A 5/16-18 bolt will not go into an M8 hole, and a 1/2-13 bolt will not go into an M14 hole, no matter how close the numbers look on paper.
The most common real error is guessing a coarse thread when the fastener is fine, or the reverse. Fine threads have more teeth across the same diameter and a visibly sharper profile, so a thread gauge settles it immediately. When in doubt, measure the pitch rather than the diameter, because diameter alone almost never disambiguates a damaged hole.
Check the depth of the hole as well. The rule of thumb is insert length plus roughly 6mm, or about a quarter inch, of relief for the tap and driver to reach the bottom. A worked example: a .450 inch insert needs about .700 inches, or 17.8mm, of hole depth before you start. If the boss is thinner than that, no insert in this roundup will work, and you are looking at a different repair.
If your head bolt hole is recessed rather than flat, stop and check the insert geometry. Standard inserts will bottom out in a pocket before the driver can finish flaring them, and head bolt specific kits exist for exactly that situation. For the general small-hardware repairs, our pick of the best door hinge pin and bushing repair kits covers a different kind of pin-and-bushing fix that some people confuse with thread inserts. If the fasteners in front of you are much smaller again, such as the M2 and M3 hardware on an RC frame, our guide to the best FPV drone repair tool kits is the relevant starting point rather than this roundup.
Which TIME-SERT Kit Do I Need? An Application Lookup
Work from the symptom rather than the brand. Most people arrive at a stripped hole through one of five routes, and each has a fairly predictable answer.
A stripped drain plug hole in an aluminum oil pan is usually M12 x 1.5 or M14 x 1.5, so kit 1215 or kit 1415 is the place to start. Forum users repairing Honda and Acura drain pans land on the M14 size most often. If the pan wall is thin, look for a shorter insert rather than a longer one.
A stripped spark plug hole depends on the engine. Common sizes run from M12 x 1.25 to M14 x 1.5, and the depth of the plug reach matters as much as the diameter. If the plug threads reach past where the insert flange will sit, you need a spark plug specific kit with the right reach, not a general kit. The guidance on TIME-SERT part 4412E-111 is the reference most owners are pointed to for deep reach plugs on Honda, Acura, BMW and Toyota.
A stripped head bolt hole is the case with the most vehicle-specific answers. Toyota M11 x 1.5 head bolts use part 2200, and the standard advice from the manufacturer help pages is to repair all of the head bolt holes rather than one, so the head torques evenly. Recessed head bolt holes need a head bolt specific kit, and the M10 x 1.25 kit in this roundup is explicitly not for that application.
A stripped bracket, manifold or general fastener hole is usually M6, M8 or M10, which puts kit 1610, kit 1812 or kit 1012 on the list. These are the sizes that account for most of the repair work done on a typical car.
A valve cover or small engine case is often M6 or M7, and if the thread is M7 then kit 1710 is the only thing that fits. Motorcycle and dirt bike cases are a common home for M6 and M8 repairs, which is why the two most compact kits here earn their place on a bench.
Finally, a hole that is already oversized is a different problem entirely. If a previous insert has been drilled out, the hole is bigger than any standard kit drill. On Ford applications the recurring tripwire is a failed insert measuring larger than .660 inches, or 16.8mm, which is the point at which you need an oversized or triple oversize repair kit. Measure the existing hole before you order anything, because a standard kit on an oversized hole will not seat.
One more real user question deserves a direct answer: do you need to remove the engine? Usually no. Can-Am Talk owners describe the install itself as very straightforward and quick once the part number is right, because the tooling is hand-driven and the work happens in place. The exceptions are the studs and snouts that need the part removed to reach the back of the hole.
The Four Mistakes That Ruin a TIME-SERT Install
These four failures account for nearly every ruined insert, and all of them are documented in mechanic forum threads rather than in the manufacturer instructions. Avoiding them costs nothing.
First, drilling and tapping off-square. Users on r/machining warn specifically that hand-drilling goes off-square, and a hole that is even slightly out of square produces a tapered thread that the insert will not seat into properly. Clamp the work, use a tap guide, and check with a straight edge before the tap goes in.
Second, punching the install tab before you test the fastener. This is the mistake that ends the repair permanently. Once the driver has flared the bottom of the insert there is no way to back it out, so if you then discover the bolt cross-threads, you have destroyed both the insert and the bolt. Leave the insert proud, thread the bolt in by hand, confirm it runs freely, and only then flare.
Third, cross-threading the bolt into a fresh stainless steel insert. A new steel sleeve is harder than the threads of the fastener you are using, and a cross-thread will strip the bolt rather than the insert. That is how a successful install still ends with a broken bolt in your hand.
Fourth, bottoming the installation driver out in a blind hole. When the driver hits the bottom of the hole before it finishes flaring, the last threads of the insert do not expand and the insert is left partially locked. Mark the driver shaft with a marker or a wrap of tape before you start so you can see how far it has travelled, and stop the flare before the driver touches the bottom.
The r/machining thread that documents the punched-tab failure is worth reading in full if you are new to this. It is a clean walkthrough of a repair that went wrong in a specific, avoidable way, and the inexpensive lesson is simply to test-fit before you commit.
When Not to Use a Thread Insert
A thread insert is not the right tool in a few situations, and knowing them saves a casting.
If the boss is cracked, split or already fractured around the hole, the insert will hold threads perfectly while the material around it falls apart. A repair in a cracked boss is a delay, not a fix, and the correct answer is a replacement casting or a welded and re-machined repair.
If the bolt itself is cross-threaded or stripped, the insert is doing nothing for you. You are about to rebuild a hole in order to use a fastener that cannot hold. Replace the bolt at the same time, every time.
If the head is split or sheared, stop. No insert in the world restores the head of the fastener.
If a stud solution is available, it is often better. Forum users who can remove the drivetrain consistently describe a stud system such as SureGrip as the best way to permanently repair a cylinder head problem, because a full thread stud has more material and more engagement than any insert. That is a bigger job, and on a cylinder head it can be the right one.
And if the hole does not have enough material behind it, no kit helps. Insert length plus tap relief has to fit inside the boss, and that is a measurement problem you solve before you cut anything.
Master Kits vs Single-Size Kits
TIME-SERT also sells range kits. Part 1005 is a metric coarse master kit, and part 2001 is a mega master covering M5 through M18 in one case. They appear in shopping results for this topic more often than any explanation of when they make sense, so here is the honest version.
A master kit is worth it if you service a shop, a fleet or a machine shop where damaged threads come in different sizes every week and you would otherwise be waiting on a single kit each time. The tooling is reused across the whole range, and once you have driven inserts in M6, M8, M10, M12 and M14, the process stops being difficult on the fifth job.
Single-size kits are the better value for almost everyone else. Most repairs are one hole, and most people work on two or three sizes at most. The driver, drill, counterbore and tap inside a single-size kit are the same quality as the master kit tooling, so you are not losing capability, you are only covering a smaller range. Starting with kits 1610, 1812 and 1012 covers the large majority of automotive work you will ever encounter.
The waste argument matters here, and it favours singles. Every TIME-SERT kit includes five inserts, and the inserts are the single-use part. Buying a range kit to repair one M6 hole leaves a lot of unused sleeves in the case, and sleeves do not have a long shelf life if they have been dropped or handled.
Frequently Asked Questions
What is better, Helicoil or TIME-SERT?
TIME-SERT lasts longer. It is a solid hardened steel sleeve that flares at the base and locks mechanically into the surrounding metal, while a Helicoil is a coiled wire with no positive stop and can spin or back out under torque. The solid sleeve also restores more thread strength and needs a smaller hole, which matters in thin material.
Are TIME-SERT kits reusable?
The insert is single use. Once the installation driver flares the bottom edge, the sleeve is locked in permanently and cannot be removed. Everything else in the kit is reusable: the drill, the counterbore, the tap and the installation driver. One kit typically contains five inserts and all the tooling for the job.
Do thread repair kits work?
Yes, when the part number matches the thread size and pitch and the hole is drilled and tapped square. You drill the damaged hole to the kit diameter, tap it clean, drive the solid sleeve in, and the driver flares the bottom to lock it. The original bolt then torques to specification, with no need to replace the casting or remove the engine.
What size drill bit do I need for an M6 Time-sert?
Use the drill bit supplied in the M6x1.0 kit, part number 1610, rather than a substitute. It is cut to the diameter the insert is designed for, and a smaller hole will not let the sleeve in while a larger one leaves the insert loose. If your existing hole is already wider than that drill, you need an oversized repair kit instead.
What are the different types of TIME-SERT kits?
There are standard single-size kits for a specific thread such as M6x1.0, M8x1.25 or 1/2-13, oversized and triple oversize kits for holes a previous failed insert left too large, spark plug reach kits for deep plug holes, head bolt kits for recessed holes, and master or mega master kits such as parts 1005 and 2001 that cover a whole size range.
How do I know what thread size and pitch I need?
Use a thread gauge pressed onto the fastener, or count the threads over a measured length. Metric sizes read as diameter in millimetres plus pitch, such as M8x1.25. SAE sizes read as a fraction of an inch plus threads per inch, such as 5/16-18. The two systems are not interchangeable, so a 1/2-13 bolt will never fit an M14 hole.
Conclusion: The Best TIME-SERT Thread Repair Kits to Own
If you want one kit that covers the most work, start with the M8x1.25 kit 1812, our editor’s choice for its solid self-locking insert and the largest body of owner feedback in the range. Add the M6x1.0 kit 1610 for small metric fasteners and the M12 x 1.5 kit 1215 for oil pans, housings and caliper ears, and you have covered most of what a stripped hole will throw at you.
Match the part number to the actual thread before you order, measure the hole depth, and do not flare the insert until the bolt has turned in by hand. Those three habits account for more failed repairs than the brand of the kit ever will. Use the 2026 buying guide above, pick the size that matches your bolt, and the repair will outlast the part it saved.
