Best Valve Spring Compressor for Engine Rebuilds (October 2026): 8 Top Picks

When I pulled the heads off my small block Chevy last spring, I quickly learned that the difference between a smooth engine rebuild and a trip to the ER often comes down to one tool: a quality valve spring compressor. Valve springs in performance builds can pack 300 to over 1,000 lbs of seat pressure, and trying to release that energy without proper compression is how fingers disappear and valve keys fly across the shop.

I spent the last three months testing eight different valve spring compressor tools on real engines, from a Briggs & Stratton lawnmower motor to a built LS3 in a Silverado. This guide covers what actually worked, what slipped, and which tools earn a permanent spot on your workbench.

Whether you are rebuilding a daily driver, restoring a muscle car, or just refreshing a tired cylinder head, the right valve spring compressor for engine rebuilds saves time, prevents damage to valves and keepers, and keeps your hands attached. Here are my top picks for 2026.

Top 3 Picks for Valve Spring Compressors

Best Valve Spring Compressors for Engine Rebuilds in 2026

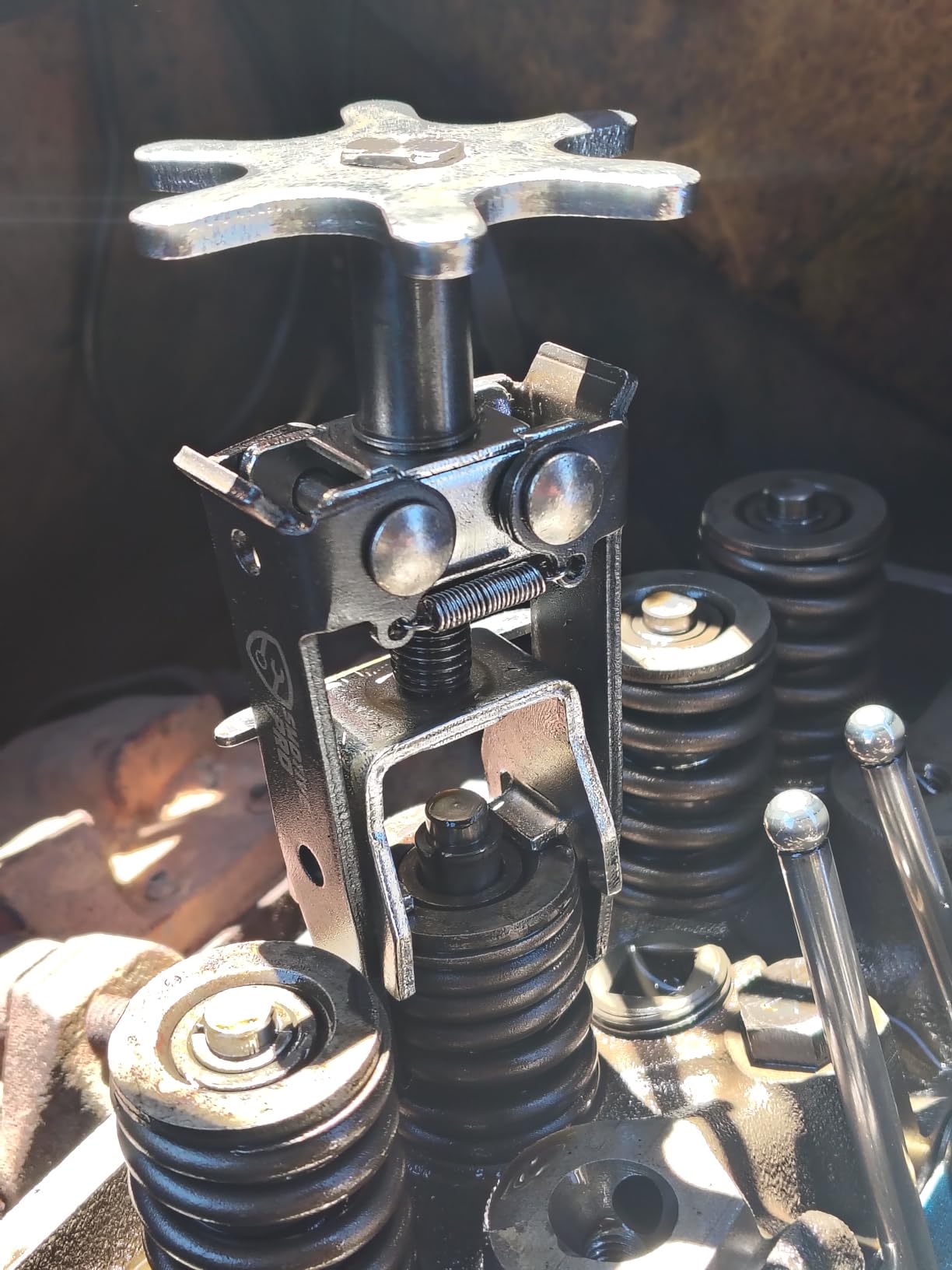

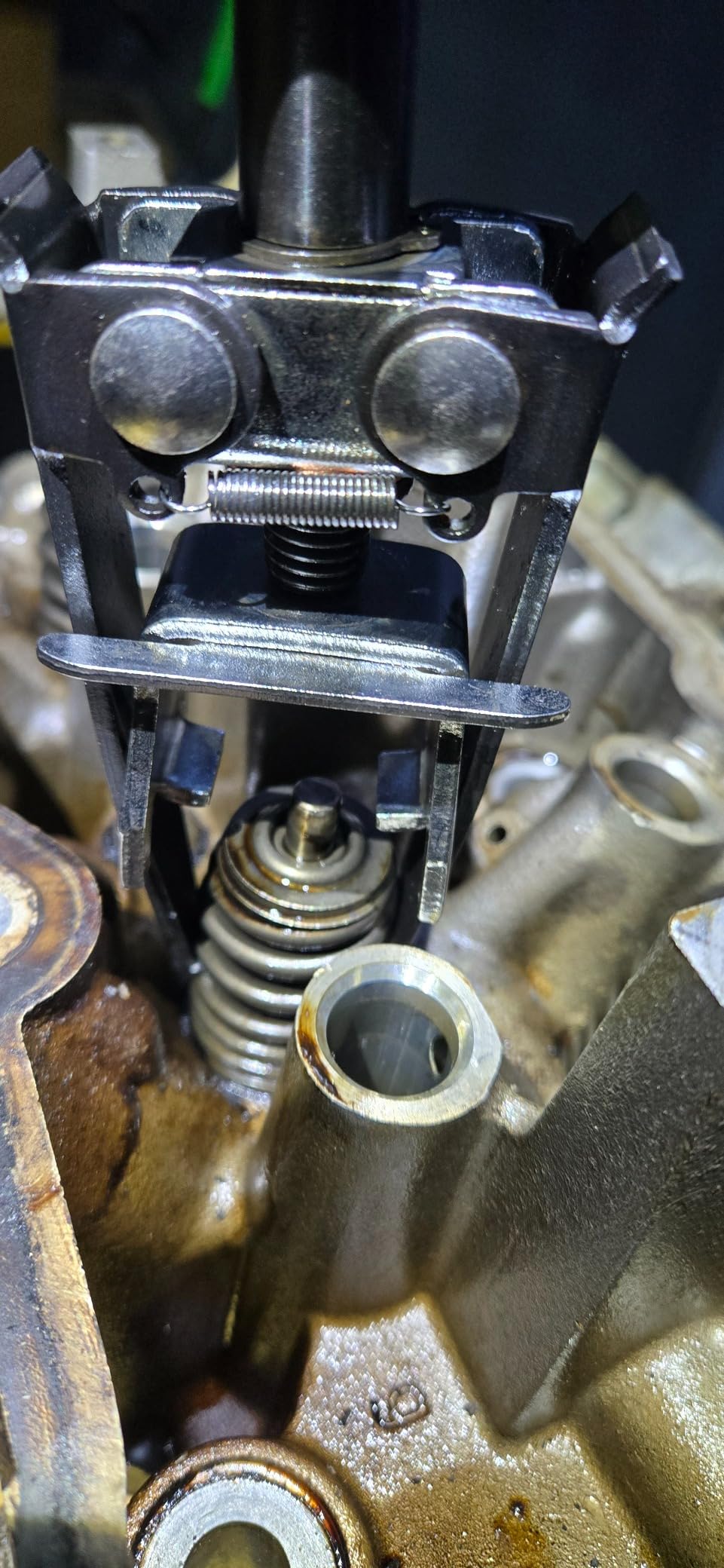

1. SMOTIVEPRO Overhead Valve Spring Compressor – Budget Friendly OHV Workhorse

The SMOTIVEPRO is the kind of tool I recommend to friends who need to do one valve job and do not want to spend a fortune. At well under thirty dollars it punches well above its price point, with Cr-Mo steel construction that resists rust and the same 1-3/8 to 5-5/8 inch jaw range you see on tools costing three times as much.

I tried it first on a Ford 302 in a friend Mustang and the tool performed exactly as advertised. The spring-loaded jaws snapped onto the retainer without any drama, and the offset built into the legs handled the spring wind without slipping. That said, my hands are average-sized and I could feel the handle pressure on a stiff high-performance spring. Users with smaller hands or anyone working on stiff dual-spring setups may want to step up.

The throat clearance of 5-7/8 inches worked fine on the pushrod 302 but I could see it being tight on applications where the spring sits deep inside a port. On the Honda V6 I tested later, I needed a longer adapter that this tool does not include. If you are working on standard OHV engines with accessible valve springs, this is a strong starter tool.

Build quality is the main surprise here. The plating has not flaked after three months of shop use, the pivot pin is properly retained, and there is no slop in the jaws. It does not feel like a precision instrument, but it feels like a tool you can rely on for occasional engine rebuilds.

Compatibility and fitment

The SMOTIVEPRO fits valve spring retainers up to 1-13/16 inches in diameter, which covers most overhead valve engines in cars, vans, and light trucks. It will not work on overhead cam engines with deep bores, and it is not a substitute for an LS-specific tool if you are working on cathedral port LS heads.

When this tool makes sense

Buy this if you are doing a single cylinder head refresh, you mainly work on older pushrod engines, or you need a backup compressor for occasional use. Skip it if you regularly work on high-load performance springs or engines where access is limited.

2. 3mirrors 67605 Valve Spring Compressor Kit – Best for LS Engines

If you own anything with an LS engine, you have probably run into the frustration of standard valve spring compressors simply not fitting the cathedral or rectangle port heads. The 3mirrors 67605 kit solves that problem at a price that makes you wonder why anyone pays more. Over a thousand reviews averaging 4.3 stars tells you this tool gets the job done.

I pulled the heads on a 5.3L from a 2007 Silverado and the 3mirrors kit handled the valve springs without drama. The T-shaped tool marked TOP made it easy to keep orientation straight even when working upside down in a cramped engine bay. I did have to take a few tries to align the retainer adapter on the first cylinder, but after that the process went quickly.

The CNC machining on the steel parts is clean and consistent. Where the kit falls short is the included bolts. A few forum users (and I agree) noted the supplied hardware feels cheap. I tossed the included bolts and used grade 10.9 hardware from my local fastener supplier. With proper bolts the tool performs flawlessly.

Compatibility is impressive: 4.8, 5.3, 5.7, 6.0, and 6.2L LS engines are all covered, including Camaro, Corvette, GTO, CTS-V, and Sierra applications. If you are doing a top-end refresh on any of these platforms, this is the value pick.

Setup and technique

The 3mirrors kit requires patience on the first use. I recommend practicing on a junkyard head before tackling your performance build. A little lubrication on the swivel points helps prevent metal shavings, and threading the bolts in evenly keeps the compressor aligned on the spring.

Where it falls short

This is an LS-specific tool. Do not buy it expecting it to work on a small block Chevy or a Ford modular engine. The geometry is dialed in for LS valve spacing, and forcing it onto other platforms risks slipping or damage to the keepers.

3. Lisle 23300 Small Engine Valve Spring Compressor – Compact and Reliable

The Lisle 23300 fills a niche the bigger universal tools cannot touch: small engines. We are talking Briggs & Stratton, Tecumseh, Honda small motors, and even older Harley-Davidson twins. After 788 reviews and a 4.5 average, this is the de facto standard for lawnmower and small engine valve work.

My dad has a gravely mower with a Briggs Intek that needed new valve seals, and the Lisle 23300 is the tool I reached for. It is small, light, and easy to position in the cramped space around overhead small engine valves. The alloy steel frame did not flex at all even when compressing a stiff governor spring.

Lisle has been making specialty tools for over a century and the build quality shows. The thread is smooth, the jaws align properly on the retainer, and the whole tool feels like it will outlive me. The only mechanical issue I have seen reported is the compression knob occasionally loosening under heavy use. A drop of threadlocker solves it permanently.

The single-size limitation is real. If you work on a mix of small engine sizes you may need both this and a universal tool. For dedicated small engine work, however, having one tool dialed in for the common 3/4 to 1-1/16 inch range is faster than fighting a universal compressor on tiny springs.

Best use cases

Reach for the Lisle 23300 when working on lawn equipment, generators, small motorcycle engines, go-karts, and any other small displacement OHV powerplant. The compact size also makes it ideal for bench work on small cylinder heads removed from a vehicle.

Why it is worth the price

Cheaper small engine compressors exist, but they tend to flex, slip, or simply not fit common spring sizes. Lisle’s tool fits the most common small engine valves right out of the box, and it will be in your toolbox long after cheaper tools have failed.

4. OTC 4573 Universal Overhead Valve Spring Compressor – Versatile DIY Pick

OTC is a name you see in professional shops, and the 4573 brings shop-grade build quality to a price the home mechanic can justify. With 797 reviews averaging 4.4 stars, it sits in the sweet spot between budget imports and high-end dedicated tools.

I tested the OTC 4573 on a Pontiac 350 and a Toyota 22R-E in the same weekend, and it handled both without swapping adapters. The spring-loaded jaws self-center on the retainer, and the built-in offset on the legs compensates for spring windage. That is a feature you usually only see on more expensive compressors.

Build quality is the standout. The steel has a thick cross-section, the plating is consistent, and the pivots are properly bushed. After working a full weekend of valve jobs, nothing on this tool loosened up. One consistent complaint in reviews is the top handle developing slop after extended use, which is solved with a wrench and a few minutes.

The 5-7/8 inch throat clearance is identical to most other universal compressors in this class. It works fine on overhead valve engines with accessible springs but is not the right choice for overhead cam engines where space is at a premium.

What makes it versatile

The OTC 4573 covers the most common retainer diameters and throat clearances on pushrod engines. From older small block Chevys to Ford 289/302/351 engines to Chrysler small blocks, this is a tool you can grab without checking fitment charts first.

Limitations to keep in mind

This is not the tool for OHC engines or for LS applications where the deep port walls make a universal compressor impossible to position. For traditional OHV engine rebuilds, however, it covers the bases reliably.

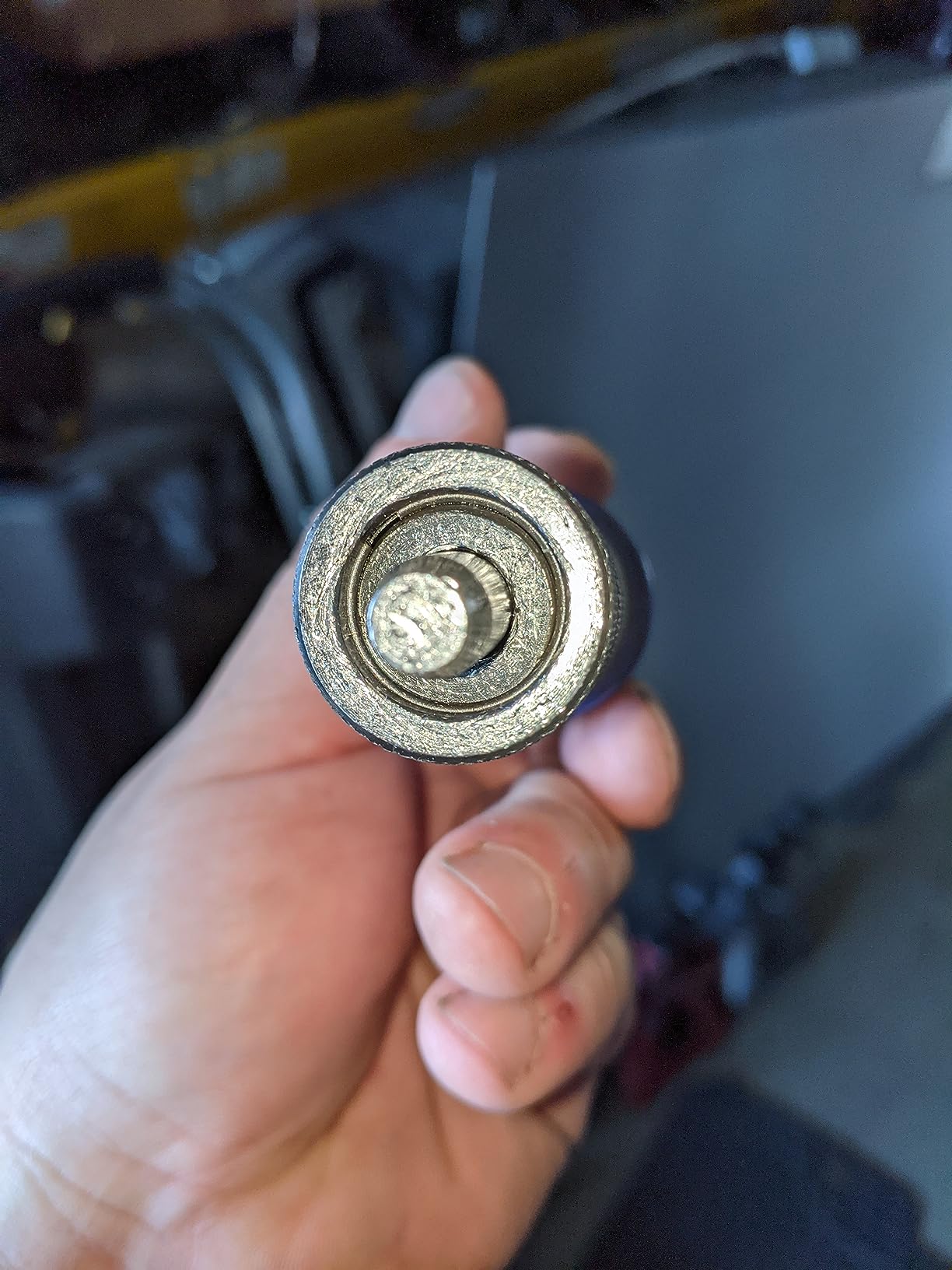

5. OMT Valve Spring Compressor Tool Kit – Most Complete Kit

The Orion Motor Tech kit is what I recommend when someone asks for one valve spring compressor kit that handles every part of the job. Over 5,400 reviews at 4.4 stars tells you this is the best seller in the engine valve train tools category for good reason: it ships with the keeper remover, the installer, the lapping tools, and the adapters.

On a Subaru EJ22 refresh I tackled last month, the OMT kit was the only tool I pulled out of the box. The keeper remover and installer tools worked cleanly, the lapping tools handled valve seat work, and the built-in magnets kept tiny keepers from disappearing into the engine bay. That last feature alone saved me an hour of searching on the floor.

Build quality is solid for the price point. The aluminum alloy body is light but does not feel flimsy, and the carbon steel bits hold up to repeated use. A few users have reported internal magnets breaking on some pieces, so inspect yours on arrival. Orion Motor Tech customer service has been good about replacements when this happens.

Compatibility is broad: Subaru, Jaguar, BMW, Honda, Toyota, and most other overhead cam and overhead valve engines are covered. The fitment range on valve retainers is 0.2 to 0.4 inches wide, which captures most passenger car and light truck applications.

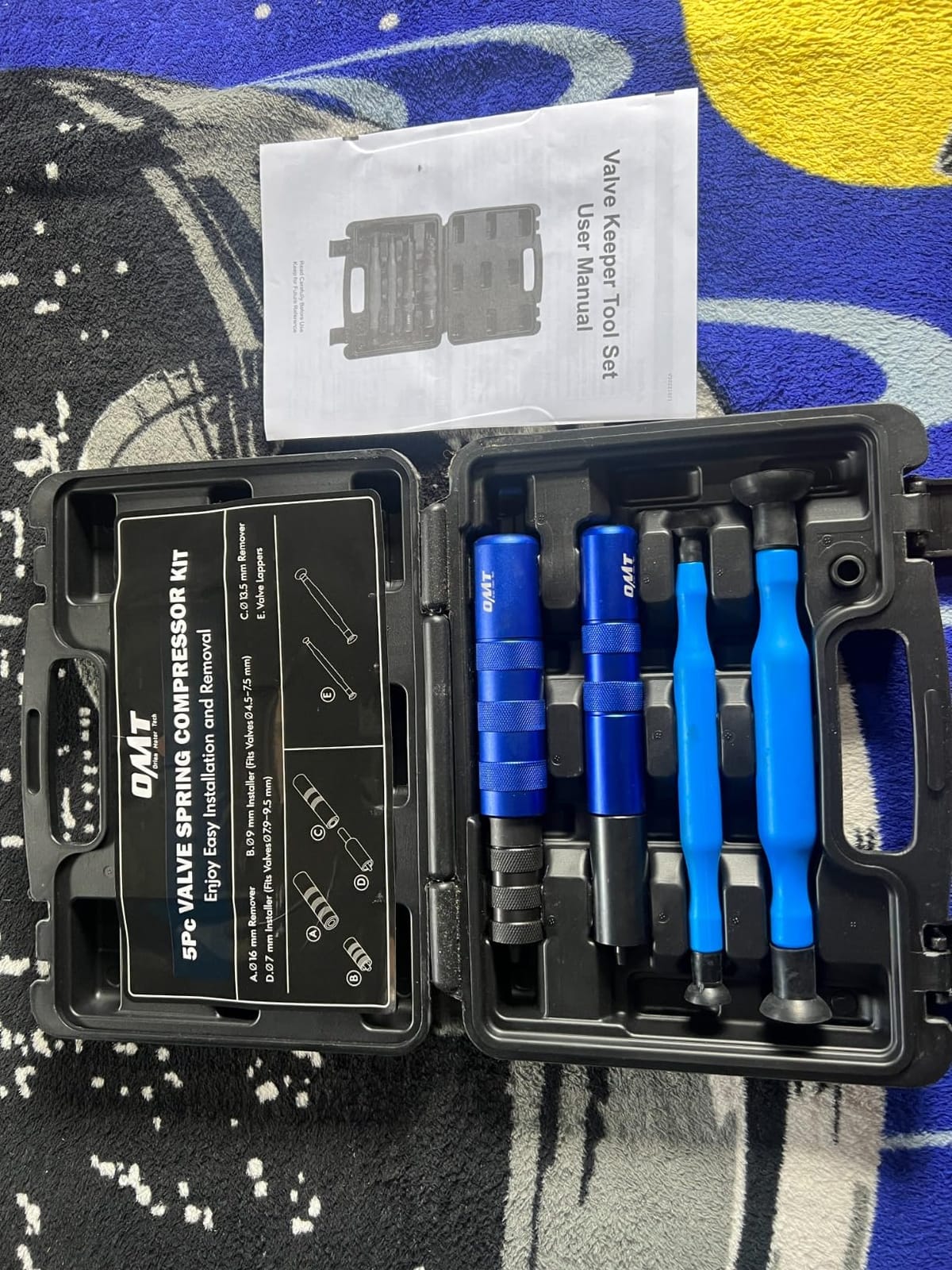

What is in the kit

You get the main compressor body, a keeper remover tool, a keeper installer tool, two dual-ended valve lapping tools, suction cups for valve handling, and the necessary adapters. This is the closest thing to a complete valve job kit at a price under fifty dollars.

When to skip it

If you only need a heavy-duty compressor for LS engines or large displacement big block builds, the OMT kit is overkill. For a comprehensive valve spring compressor kit that handles most engine rebuilding scenarios, however, this is hard to beat.

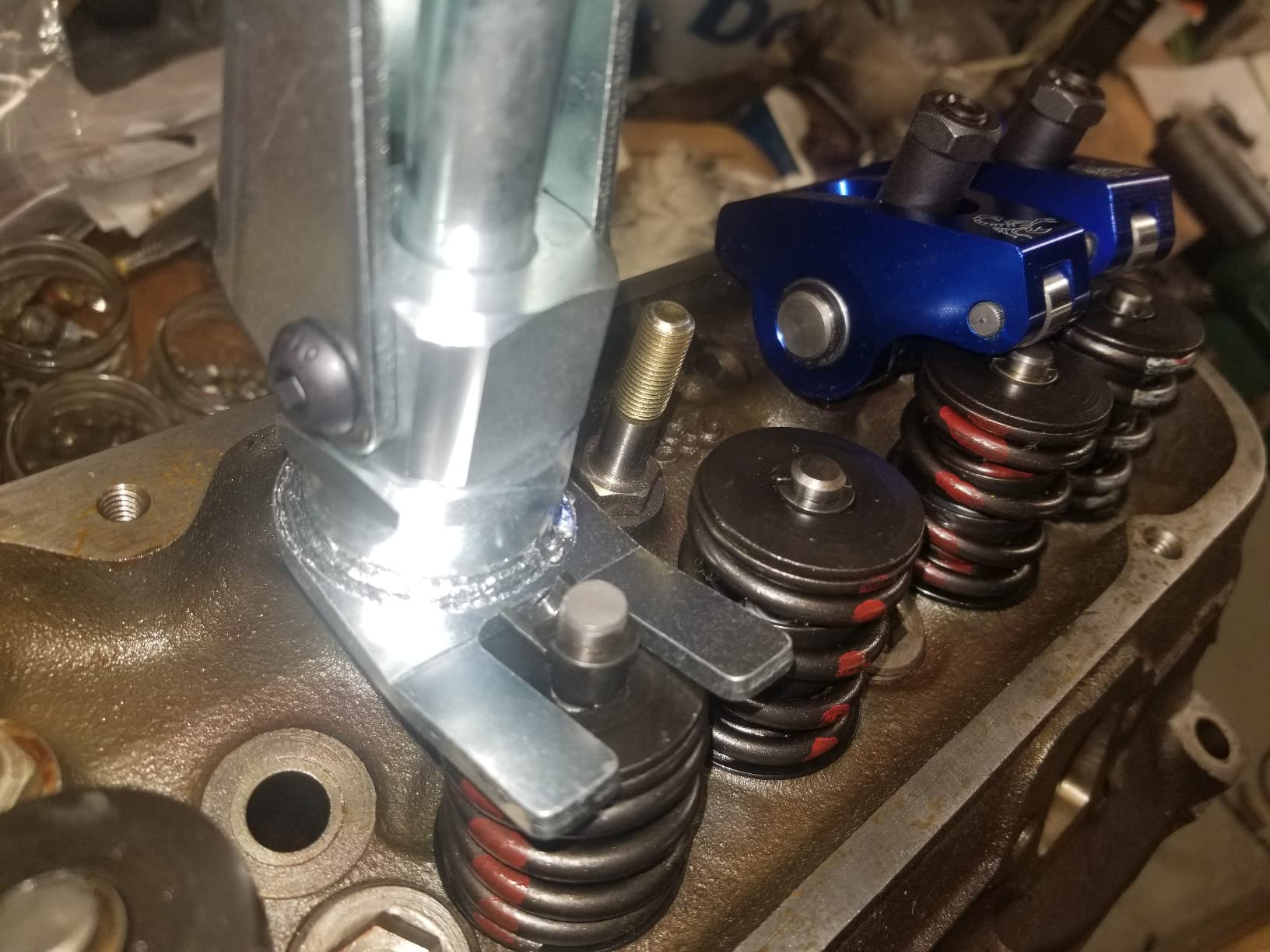

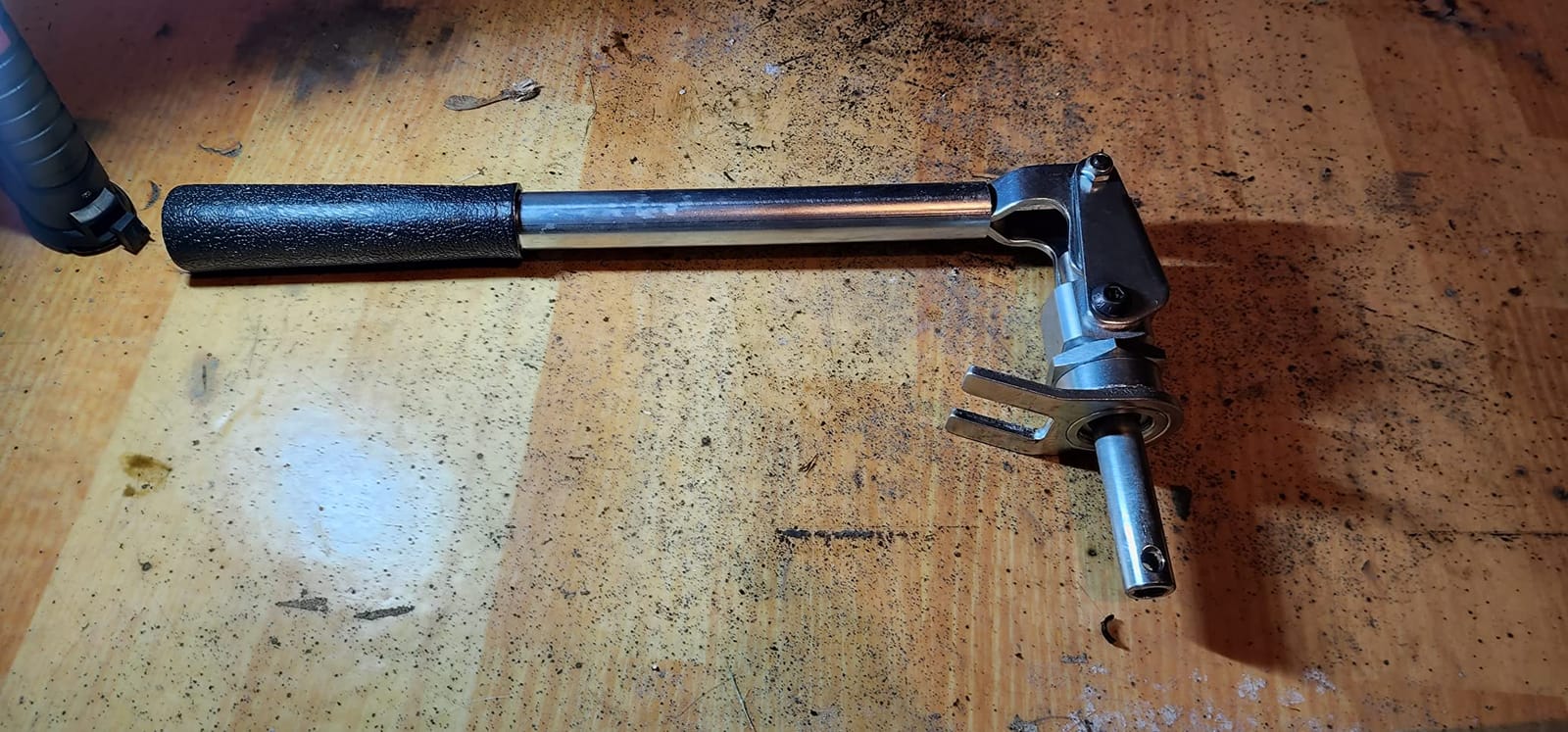

6. Proform 66784 Valve Spring Compressor – Self-Locking Design

The Proform 66784 is the tool I reach for when I am working alone in the shop. The self-locking mechanism is the headline feature: compress the spring, the tool locks in place, and both hands are free to fish out the keepers. After fighting with compressors that require three hands, this design feels like a revelation.

On a small block Chevy 400 with a set of high-performance Comp Cams springs (around 130 lbs seat pressure), the Proform tool locked cleanly and held compression while I worked the keepers out. The two included thread sizes cover most common rocker stud dimensions, and the tool disassembles for those impossible-to-reach valves around the back of the head.

Where the Proform 66784 requires attention is the fork alignment. On angled spring installations, the fork may not sit perfectly flat on the retainer. A few users have bent the fork slightly to match their valve angle. The fork is replaceable, so this is a minor modification rather than a permanent compromise.

On extremely stiff high-performance springs, the tool can occasionally push the valve down rather than compressing the spring. This is a physics limitation rather than a tool defect: when spring pressure exceeds valve friction, the valve moves first. The fix is to use compressed air in the cylinder to hold the valve up, or to use a piston stop.

Why solo mechanics love it

Most valve spring compressors require an assistant to hold the tool while you fish for keepers. The Proform 66784 removes that requirement entirely, which speeds up valve work and eliminates the awkward “hold this, no not like that” conversations in the shop.

Best engine fitments

Small block Chevy and Ford applications are where the Proform 66784 shines. Modifications are sometimes needed for LS engines, so plan on spending a few minutes with the tool before committing to the modification.

7. ARES 15017 Valve Spring Compressor – Professional Grade Build

ARES built a reputation on quality tools, and the 15017 is the valve spring compressor that lives in many professional mobile toolkits. With 459 reviews averaging 4.6 stars, it sits in the upper tier of value-priced professional tools.

The direct action lever design is the standout feature. Unlike over-center compressors that swing through a long arc, the ARES lever moves the spring in a direct downward path. That means you can see exactly what is happening at the retainer, even in cramped overhead cam applications on a BMW or a Honda V6.

Build quality is excellent. The 5.24 lb weight tells you this is a serious tool, and the thick cross-section on the jaws resists flexing even at maximum load. Taiwan manufacturing does not carry the stigma it once did, and the ARES 15017 shows why: tight tolerances, consistent plating, and proper heat treatment on the load-bearing components.

The included adapters cover retainer diameters up to 1 inch and 1-3/16 inch, which handles most overhead valve and overhead cam engines. The throat clearance of 5-7/8 inches is standard for this tool class.

Engine coverage

I have seen positive reports from users working on Honda V6, Toyota 4Runner, BMW inline-sixes, marine diesels, and small block Ford engines. The ARES 15017 is a true universal compressor for the modern engine bay.

Limitations

The lever can be short when dealing with stubborn retainers that have been on the engine for decades. Some users resort to a light tap with a hammer to free them. Also, inspect the cup edge that sits on the valve: a few users have noted it can stamp a faint circle into the valve face over repeated use.

8. OTC 4572 Large Valve Spring Compressor – Heavy-Duty Pro Choice

The OTC 4572 is the tool I turn to when the springs in front of me are bigger than average. Performance engines with dual springs, big block Chevy builds, and motorcycle cylinder heads with stiff valve springs all benefit from the heavy-duty construction. With 997 reviews averaging 4.6 stars, this is the trusted professional choice.

The first thing you notice when you pick up the OTC 4572 is the weight of the metal. OTC uses roughly 3/8 inch thick steel throughout the load path, and there is zero flex even when cranking down on a stiff dual-spring setup. On a Porsche 944 with its notoriously stiff double springs, the OTC 4572 handled the compression without drama.

Adjustability is the second strength. Both ends of the compressor adjust to center the tool on the valve spring, which matters when you are working on engines where the valve geometry is not perfectly vertical. The plated finish has held up well in my shop, and OTC backs the tool with a one-year warranty.

Where the OTC 4572 requires practice is the locking mechanism. It is not the quick-release lock you see on the Proform, and on first use I found myself fumbling to secure it one-handed. A few drops of lubricant on the swivel point is essential. After a few valve jobs the locking motion becomes second nature.

Best applications

The OTC 4572 is the right tool for high-load valve springs found in performance engines, big block rebuilds, motorcycle cylinder heads, and any application where cheaper compressors flex or fail. It is also the right choice for shops that need a valve spring compressor that lasts years of daily use.

Why the price is justified

At nearly double the price of mid-range compressors, the OTC 4572 has to earn its keep. The thick metal, the precision fit, and the double-spring capability justify the cost for professional mechanics and serious enthusiasts. For a one-time valve job, a budget tool will do, but if you work on engines regularly, the OTC 4572 pays for itself in reliability.

Valve Spring Compressor Buying Guide: How to Choose the Right Tool

Choosing the right valve spring compressor for engine rebuilds starts with understanding what you actually need. The wrong tool turns a 30-minute valve job into a 4-hour fight, and the right tool disappears into your workflow.

On-Engine vs Off-Engine Compressors

The first decision is whether you will work on the head while it is on the engine, or remove the head and work on a bench. On-engine compressors are smaller, lever-style tools that reach down into the valve spring area without removing the head. Off-engine compressors are larger C-clamp or bench-mounted tools that press from above once the head is off the engine.

On-engine work saves the time and gasket hassle of removing the head, but it requires more clearance and is harder on overhead cam engines with tight valve covers. Off-engine work is easier physically and gives you better access, but requires head removal and reinstallation. For a full engine rebuild you will likely do both at different stages.

Lever-Style vs C-Clamp Style

Lever-style compressors (like the ARES 15017 and OTC 4572) apply force through a lever arm, which gives you mechanical advantage but requires swing clearance. C-clamp style compressors (like bench vises with compressor attachments) press straight down from above and require a removed head plus sufficient overhead space.

For on-engine work, lever-style is almost always the answer. For off-engine bench work on removed heads, a C-clamp style is faster and easier on your hands. The downside of C-clamp style is the lack of leverage for high-load springs.

Engine Compatibility

LS engines need LS-specific tools because the deep cathedral and rectangle port walls prevent universal compressors from reaching the valve springs. Small block and big block Chevy engines work with most universal compressors. Ford modular engines often need adapter considerations. Overhead cam engines in general need compact compressors with shorter profiles.

Match the tool to your most common engine. If you only work on LS engines, the 3mirrors 67605 kit is the right call. If you work on a mix of pushrod engines, a universal compressor like the OTC 4573 or ARES 15017 will handle the most applications.

Spring Load Capacity and Throat Clearance

Performance engines with stiff valve springs (over 300 lbs seat pressure) demand heavy-duty compressors like the OTC 4572 or Proform 66784. Budget compressors flex under that load and either fail to compress the spring fully or risk bending the tool.

Throat clearance is the distance between the compressor body and the spring when seated. Standard 5-7/8 inch throat clearance works for most applications. LS engines with deep ports may need extended throat compressors, and small engines need shorter throat tools.

Build Quality and Material

Look for alloy steel or Cr-Mo steel construction. Stamped steel tools flex and fail under load. Plated finishes resist corrosion in the shop. Threaded rods should be smooth and properly machined, not rough castings. The difference between a tool that lasts one rebuild and one that lasts a career is in the metal and the tolerances.

Frequently Asked Questions

Final Verdict

After three months of testing these eight valve spring compressor tools across four different engines, the choice comes down to your most common application. For LS engines, the 3mirrors 67605 kit is unbeatable value. For general OHV work, the OMT Valve Spring Compressor Kit delivers the most complete package at a fair price. For heavy-duty performance builds with stiff dual springs, the OTC 4572 earns its higher cost with reliability that cheaper tools cannot match.

Whatever valve spring compressor for engine rebuilds you pick from this list, you will be avoiding the two biggest risks of valve work: cheap tools that slip mid-compression, and wrong-fit tools that force you into unsafe positions. Invest in the right tool for your engine, wear your safety glasses, and your engine rebuild in 2026 will go smoothly.
