8 Best Telescope Collimators for Newtonian (October 2026)

The best collimation tool for a Newtonian telescope depends almost entirely on how fast it is. A sight tube or Cheshire collimating eyepiece is enough for an f/8, while an f/4 to f/5 astrograph needs a laser or a higher-resolution tool, and imagers want whatever removes the last fraction of a millimeter of tilt. Below I break down eight telescope collimators for Newtonian reflectors, matched to the focal ratio and observing style they actually suit.

A collimation error is the single most common reason a decent telescope looks terrible. The secondary mirror is not pointed at the center of the primary, so the returning light cone misses the focuser, and you get bloated stars, smeared planetary detail and soft deep-sky contrast. Fixing it costs a few minutes and no money at all if you own the right tool.

We went through every laser and Cheshire eyepiece in this category with real feedback behind them, then sorted them by what they do well and what they cannot do. Updated for 2026, the list below covers the budget Cheshires, the general-purpose lasers, and the practical limits of each. Nothing here needed a power supply beyond a coin cell or a sunny windowsill.

Top 3 Telescope Collimators for Newtonian Reflectors in 2026

Every Collimator in This Roundup at a Glance

What a Newtonian Collimator Does and Why It Matters

A telescope collimator is an alignment tool that lines up a Newtonian reflector’s two mirrors so the secondary bounces light from the center of the primary straight into the focuser. Get it right and stars turn from soft blobs into points. Get it wrong and you are wasting aperture you already paid for.

Every tool here depends on one thing: a center spot, a small black dot or doughnut decal at the middle of the primary mirror. Without it there is nothing to aim at, and a laser simply bounces around inside the tube.

Two collimation errors matter. Axial error is when the whole light cone is tilted, and it softens everything on axis. Off-axis error shows up as coma toward the edge of the field, which is why fast Newtonians are so sensitive to it.

The rule of thumb for secondary position is offset = minor axis divided by 4 times the focal ratio. On an f/5 scope the offset is small, but on an f/4 light bucket it is large enough that a sloppy-looking placement is actually correct.

Focal ratio is also the deciding factor for tool choice. Slow f/8 Newtonians have a narrow cone that forgiving Cheshires can handle. Fast f/4 scopes produce a wide, sensitive cone where you need more magnification behind the reference.

Tool types fall into four families: passive optics that project a ring (Cheshire), active beam tools (laser), beam plus built-in magnification (Barlowed laser), and precision instruments (autocollimator and electronic units). The next eight picks cover the first two families, which is where most Newtonians belong.

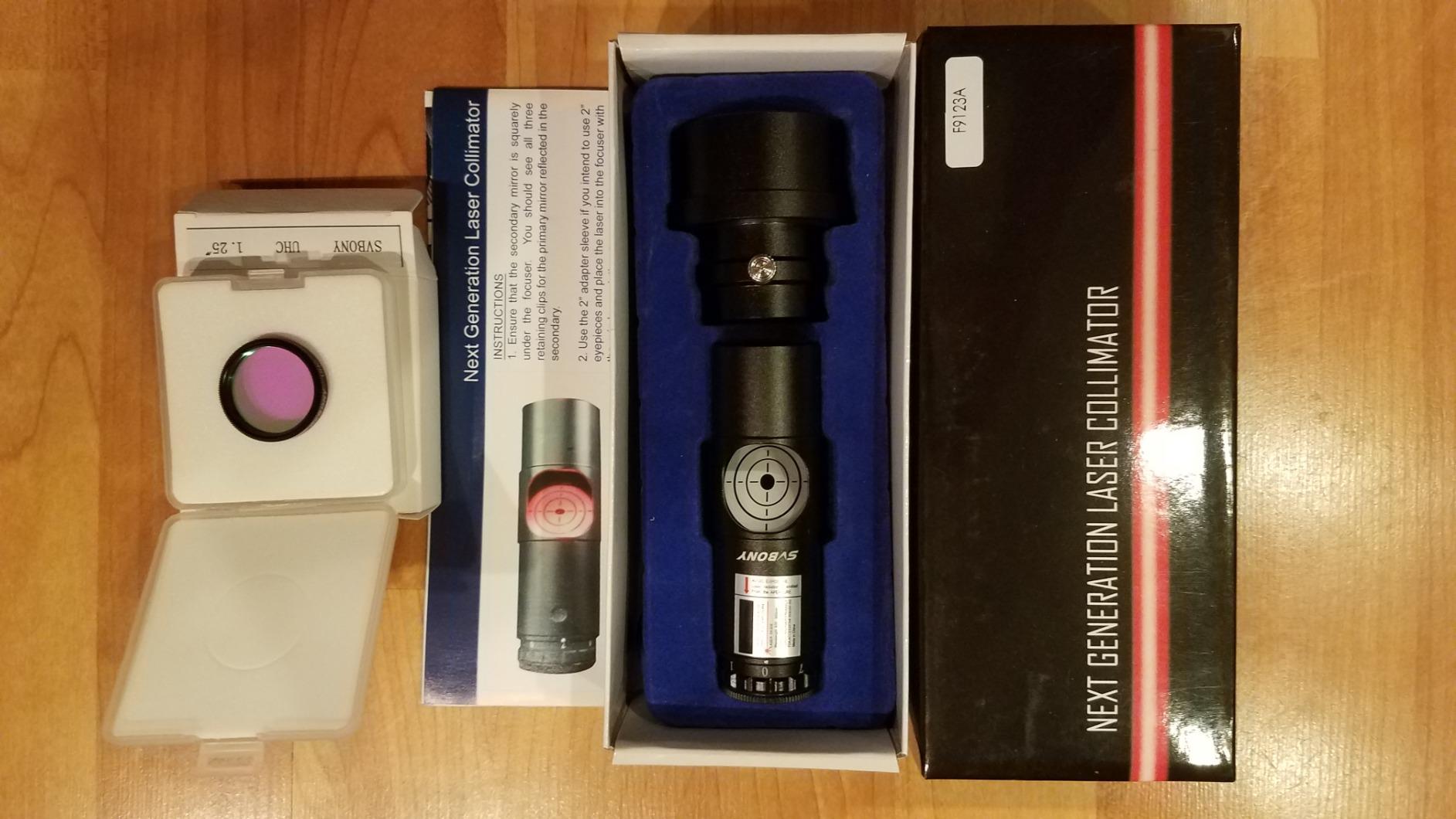

1. SVBONY Laser Collimator for Newtonian Reflectors, 1.25/2 inch – The All-Rounder

This is the one I hand to anyone who asks me what to buy first. With 3059 reviews at 4.5 stars, it has by far the deepest feedback base of anything in this roundup, and that consistency matters more than any spec sheet.

In practice the SVBONY laser takes about five minutes end to end once the center spot is in place. You drop it in the focuser, send the dot to the middle of the primary spot, then walk the secondary and primary collimation screws until the return dot sits concentric. The whole loop is short enough that you will re-check it casually rather than dread it.

The 1.25 inch and 2 inch coverage is what makes it the safest recommendation. The removable 2 inch adapter is in the box, so it drops into a 2 inch focuser without a separate purchase, and that removes the single most common return reason in this category: a tool that physically will not fit.

Seven brightness levels matter more than they sound. At level 7 the beam is easy to see on a bright primary in a lit room, while the lowest setting keeps the dot from washing out the dark return spot against a faint center spot at night.

The triple cemented lens is there for a reason. A cheap plastic lens element can flex or shift and change the beam path, which is the classic cause of a laser that circles when you rotate it. The solid metal body and cemented glass do more for reliability than the extra adjustment features do.

What to check before you trust the beam

Rotate the collimator slowly in the focuser and watch the dot on the center spot. If the dot traces a small circle instead of staying put, the internal collimation is off and no amount of mirror adjustment will fix it.

Three adjustment openings under screw caps let you re-collimate the unit itself against the primary, which is a five-minute job once you know it. Doing that check first saves a lot of frustration later.

Where it falls short

It runs on a coin cell, so it is dead in a cold field or after a year of shelf time. Keep a spare battery in the case and treat the first use after storage as the time to verify the beam again.

It also assumes the unit arrives internally collimated, and that assumption occasionally fails. Several owners cross-check with a Cheshire eyepiece, which is a habit worth keeping. As a passive tool, it also cannot judge off-axis coma, only the axial cone.

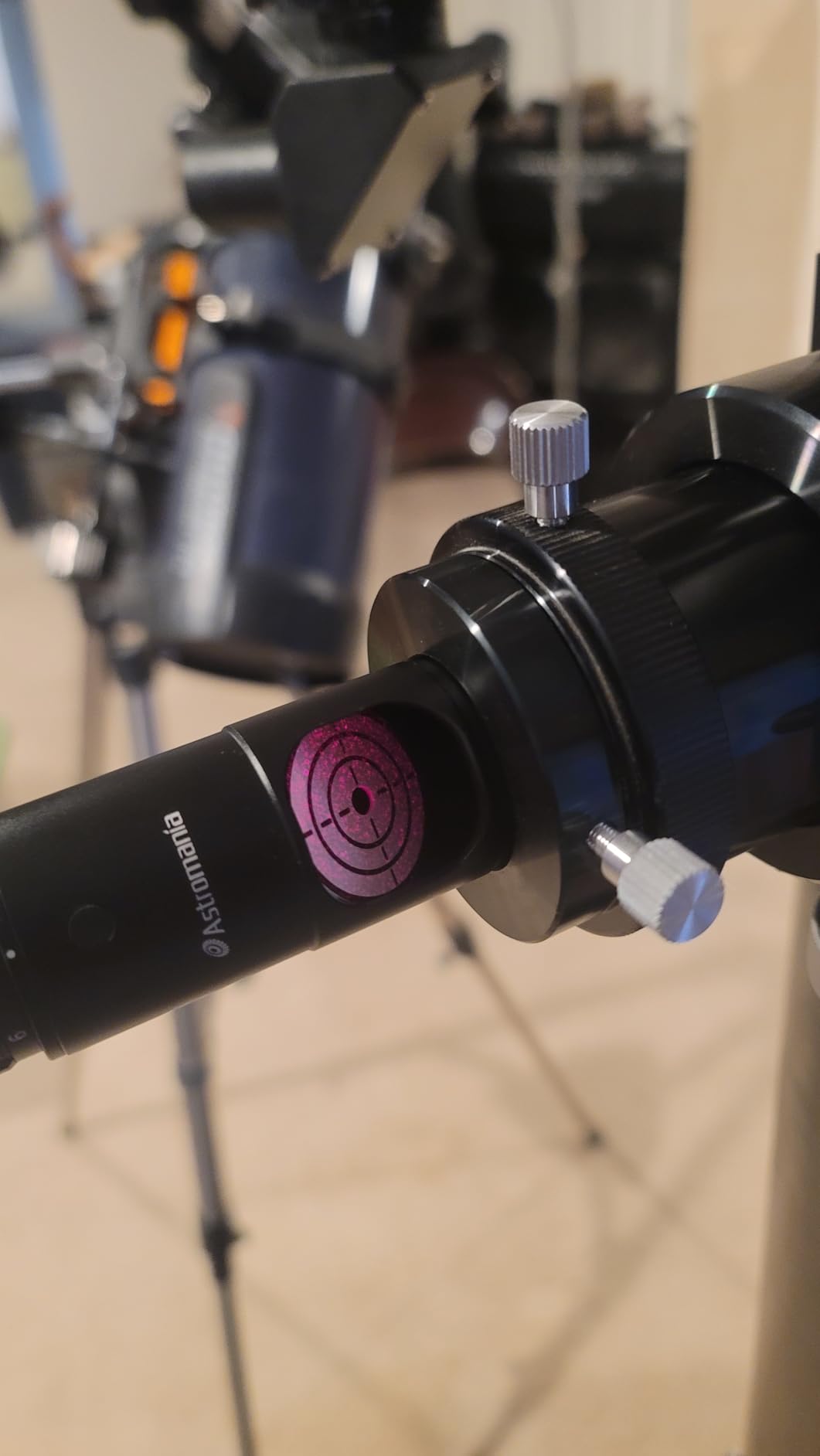

2. Astromania Laser Collimator 1.25 inch – Precise and Battery-Ready

With 856 reviews at 4.5 stars, this is the second most proven laser here, and owners describe it in unusually specific terms: sharper planets, sharper lunar detail, no drama.

It is smaller and lighter than the SVBONY at 5.04 inches long and three ounces, which matters if you are collimating a large Dobsonian where the focuser sits high above the ground. Less leverage, fewer knocks, less chance of shifting the tube while you work.

The three adjustment openings arranged at 120 degrees and sealed by screw caps are a good design choice. They let you dial in the internal collimation without the unit shifting when you turn a screw, which is exactly the moment a loosely fitting tool goes wrong.

The laser is Class 3R at 635-655 nm and 3.8 mW with a stated field of view of 1.5 degrees. Those numbers sit in a sensible range for a collimator beam: bright enough to find on a large primary, narrow enough to land on a center spot.

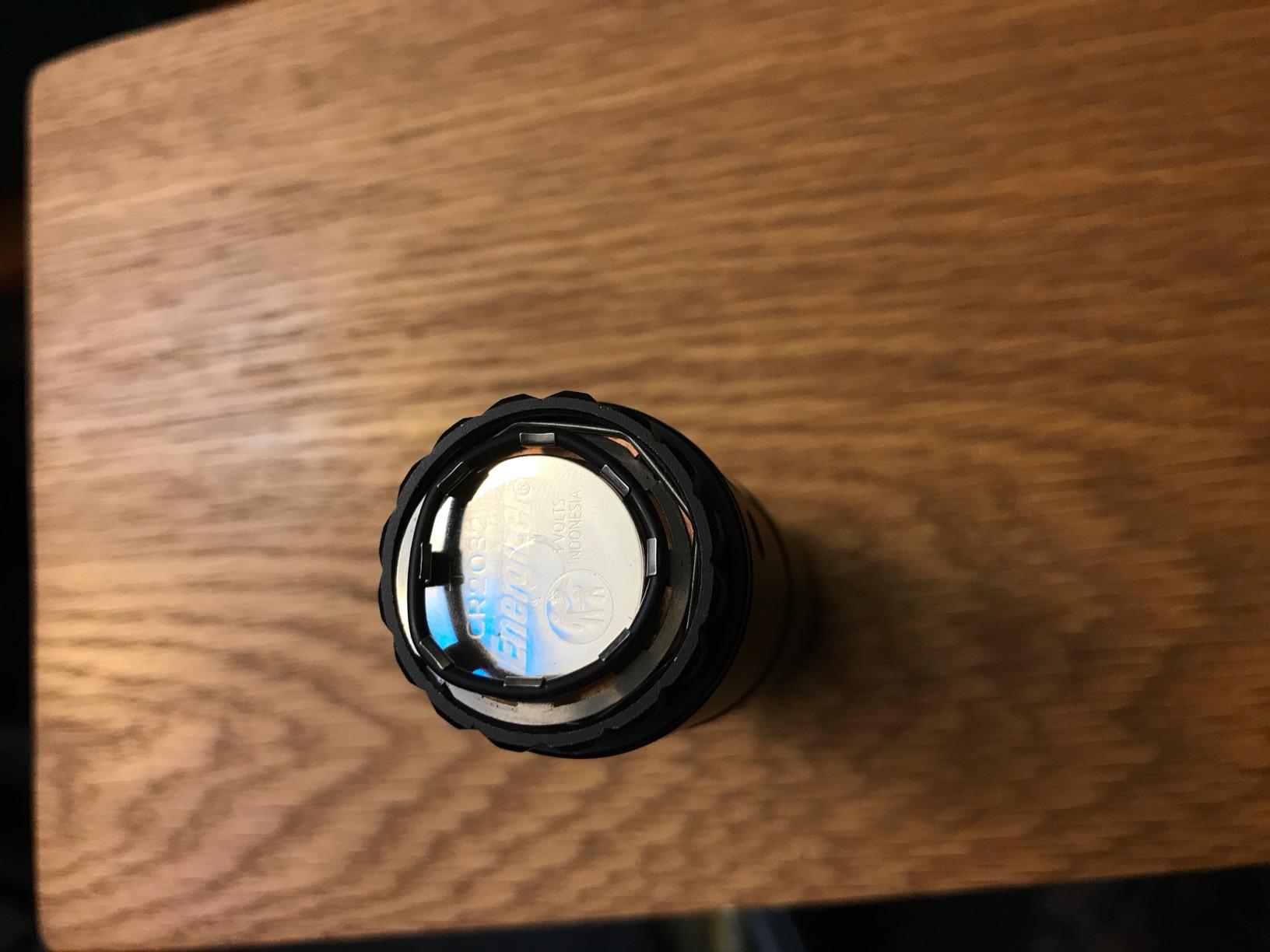

Battery included is a small thing that removes a real annoyance. Instructions come in German and English, which is more than some competitors manage.

What to check before you trust the beam

Unscrew the three sealed caps first. Owners who skip this try to collimate the tube and wonder why the tool feels unresponsive.

Rotate it in the focuser and watch the dot. It should stay put. If it drifts, the 120 degree adjustment ports are what you use to bring it back before touching your mirrors.

Where it falls short

It is a 1.25 inch unit only. On a 2 inch focuser you need a separate adapter, and while 2 inch focusers are rarer in this category than they used to be, plenty of Dobsonians and imaging trains still have them.

Like the SVBONY, it depends on batteries and can only judge the axial cone. For a very fast f/4 astrograph it gets you close but not all the way, which is where an autocollimator earns its cost.

3. Celestron Cheshire Collimation Eyepiece – No Batteries, No Drift

When people argue about lasers versus Cheshires on forums, the Cheshire side usually wins on one argument: a passive optical tool cannot lose its calibration in the post or drift with temperature. There is nothing to go wrong.

This Celestron has 627 reviews at 4.5 stars and 72 percent five-star ratings. The most common owner report is not subtle: they put it in, follow the ring, and the view of Jupiter or the Moon sharpens within half an hour.

It is also the only tool here that handles Bird-Jones style reflectors. Those designs have an extra flat secondary, which sends a laser beam down a different path and makes laser readings unreliable. A Cheshire works because you are looking at reflections rather than steering a beam.

Because it has no laser and no batteries, it doubles as a verification tool. If your laser says you are aligned and a Cheshire disagrees, one of them is lying to you.

How to read the rings

You are looking for concentric circles: the secondary reflection centered in the primary reflection, both centered in the crosshair and the peephole. Offset rings mean axial error and you adjust the primary until they line up.

Do it in daylight or under a bright side light. In a dark room you simply cannot see the ring, and a tool that needs a lamp on your face is still faster than a laser on a cold night.

Where it falls short

The instructions are thin, and that is the most common complaint. First-time users typically need a short tutorial to interpret what the rings mean before the tool makes sense.

It is also limited to 1.25 inch focusers or diagonals, and the rings take slightly longer to interpret than a laser dot once you know the routine. For a very fast scope, the ring pattern is harder to read precisely than a magnified laser return.

4. Astromania Cheshire Eyepiece Short Version – Clearance in Tight Tubes

The short version exists for one reason: barrel length. On a fast Newtonian or a Dobsonian with a low-profile focuser, a long Cheshire simply will not reach the needed height without fouling the tube wall or the secondary.

With 181 reviews at 4.4 stars, it has enough feedback to trust the crosshairs. Buyers who care enough to check crosshairs against a laser report that the alignment holds, which is the only verification that matters here.

Several owners moved to this from a laser specifically because a Cheshire cannot lose calibration. That is a defensible switch for anyone who stores a laser in a damp garage or travels with their Dobsonian in a car boot.

The 45 degree angled plate with a pop-up eye cup makes the viewing angle manageable when you are working at a low focuser height. The bottom crosshair is the reference you center everything on.

It suits Newtonian, Dobsonian and SCT use, and it runs straight into the focuser with the diagonal removed.

What to check before you trust it

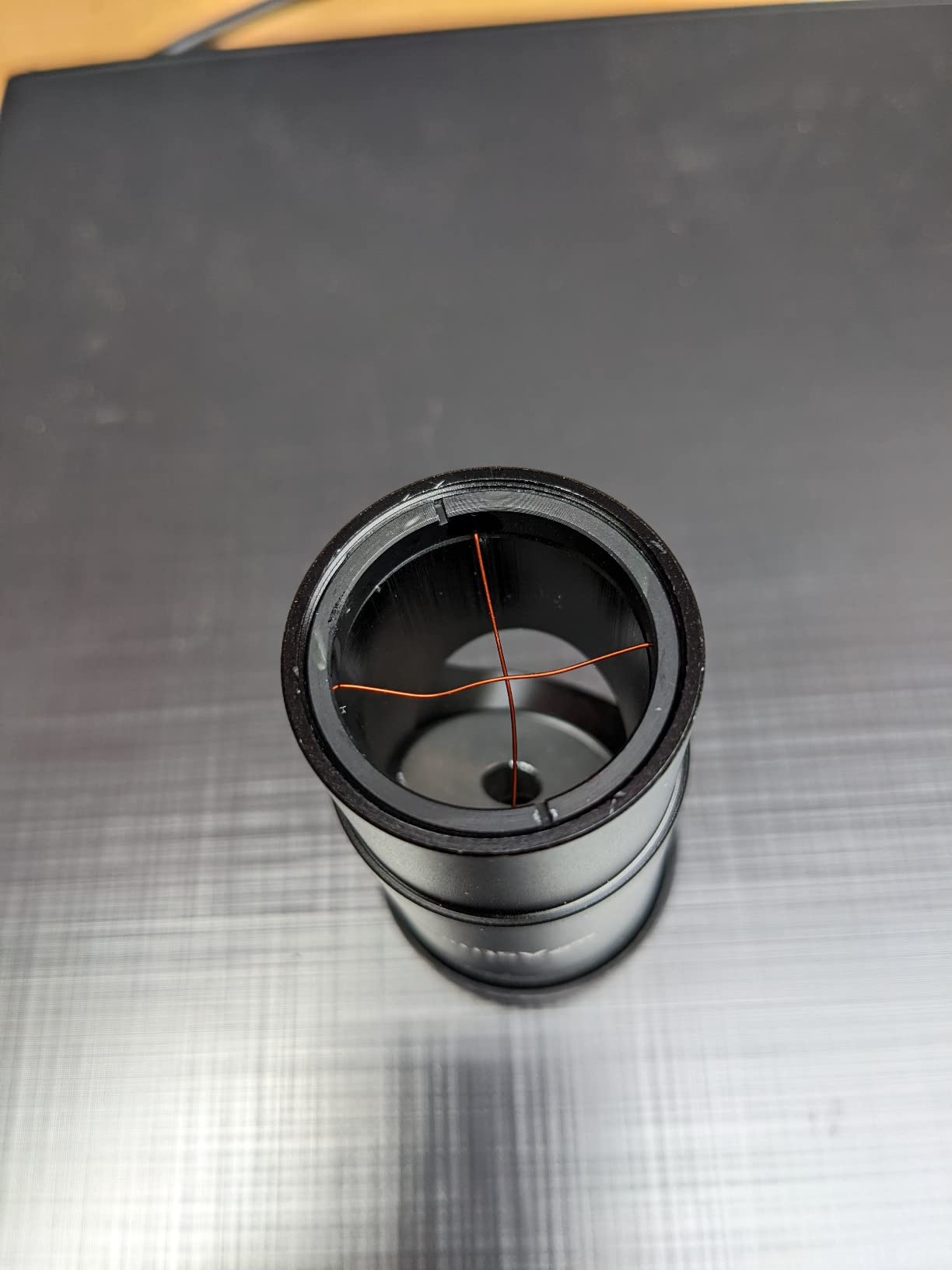

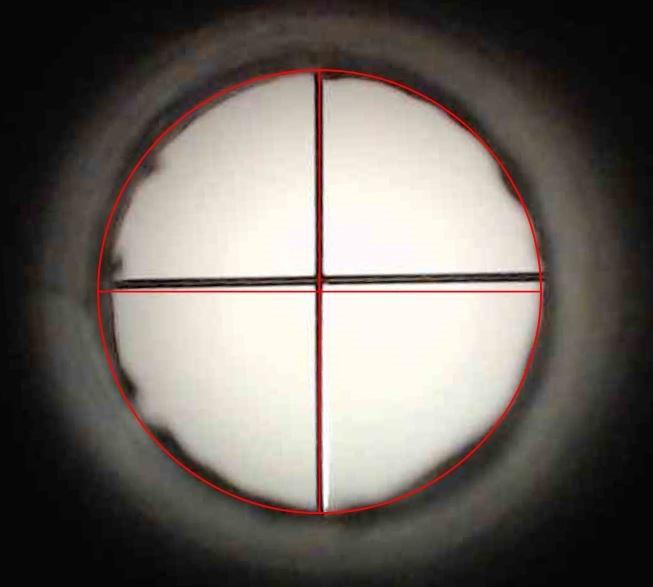

Look down the barrel in daylight and confirm the crosshair lines up with the center peephole. On some units the peephole sits a fraction off-center, and that is a manufacturing tolerance issue rather than something you can adjust out.

Check the barrel for play in your focuser. Loose fit is the classic complaint with Cheshires generally, and it turns ring positions into guesses.

Where it falls short

Eye relief is the recurring gripe. The short barrel that makes it fit is also what limits how close you can comfortably get to the crosshair, and some users simply cannot see the rings well.

No printed instructions are included, so plan on ten minutes of tutorial time. It is a day-only tool with no illumination option.

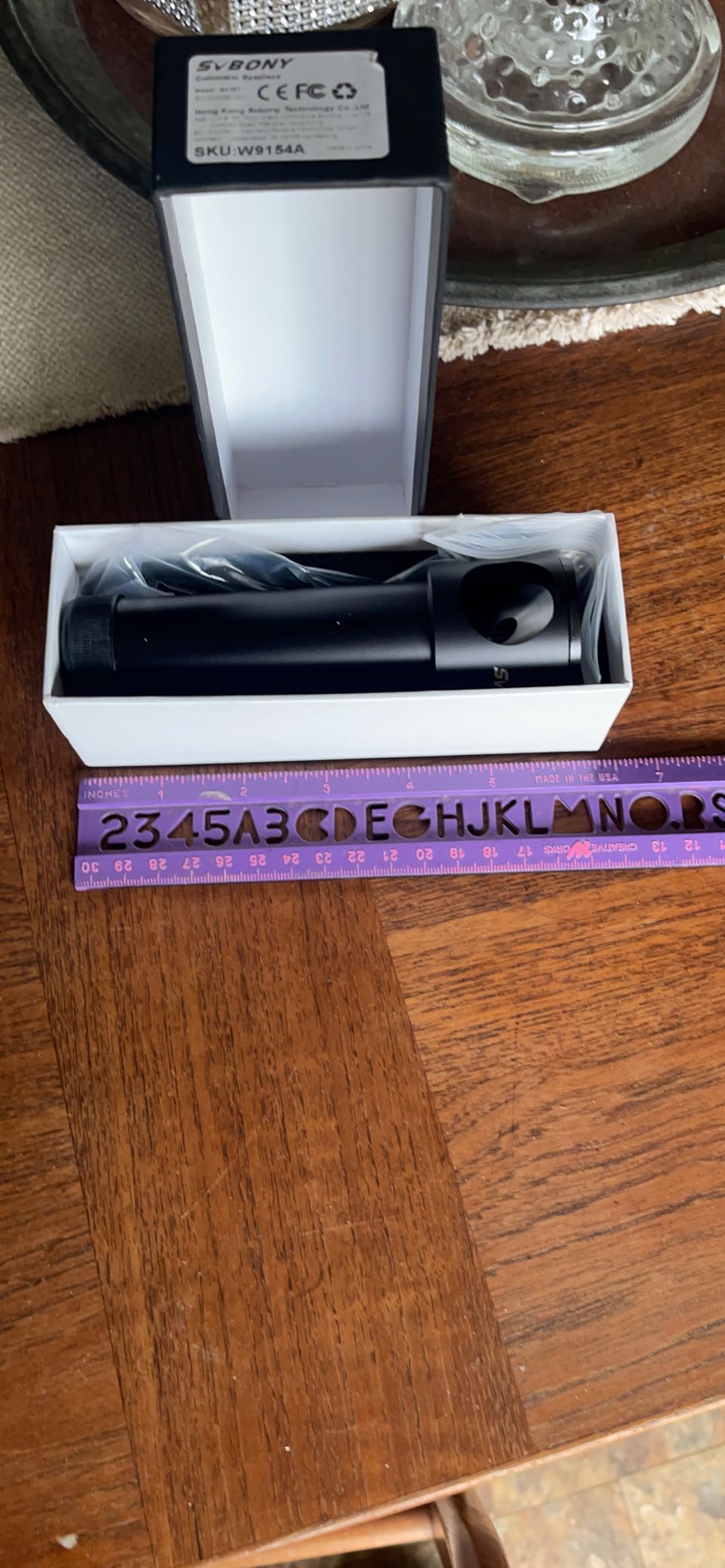

5. SVBONY SV197 Cheshire Eyepiece – The Best Rated at 4.6

At 4.6 stars across 100 reviews with 79 percent five-star ratings, this is the highest-rated telescope collimator in the roundup. It suits Newtonian, SCT and refractor optics, which makes it the most versatile Cheshire here.

The difference from the cheaper Cheshires is the machining. Steel crosshairs rather than thin copper wire, a bright sighting mirror with a peephole in the top, and a barrel heavy enough that it does not flex when you lean on it.

Owners frequently describe buying this specifically to referee an argument. If your laser and your collimation cap disagree, this is the neutral third opinion, and a neutral third opinion is worth a lot.

The 45 degree plate is held with a grub screw, which holds its angle under repeated use. On cheaper units that plate can shift, and a shifted plate changes the apparent ring geometry.

Because it needs nothing but light, it also works as the verification step before and after using a laser.

What to check before you trust it

Seat it in your focuser and check for side-to-side play before you judge anything. One owner with a 10 inch Dobsonian found a loose fit with visible jiggle, which makes ring positions unreliable no matter how good the optics are.

Make sure you have strong daylight or a bright side light. Owners note the crosshairs can be faint in mediocre lighting.

Where it falls short

It is aimed at visual observers rather than imaging setups. For electronically assisted astronomy workflows it is not the recommended pick.

No instructions are included, and the fit is the main complaint across reviews. If your focuser is loose, this will not fix that.

6. SVBONY Red Laser Collimator with 2 inch Adapter and Phone Adapter – Two Jobs in One Box

This bundle solves a specific annoyance: the 2 inch adapter that everyone forgets to order separately. It is in the box alongside a phone clamp, so one purchase covers reflector collimation and smartphone eyepiece work.

With 40 reviews at 4.4 stars, the feedback base here is the thinnest in the roundup, and its rating sits just behind the standalone SVBONY laser. That is worth knowing before you treat it as an equal substitute.

The collimation side is otherwise conventional and good: a removable 2 inch adapter, 7 brightness levels, a metal body, and a Class IIIa laser under 5 mW.

The phone clamp is a steel-bolt locking mechanism with high-density EVA pads, which sounds better than it is. The fit range is 25-48 mm wide, and that excludes many current large phones.

What to check before you trust the bundle

Measure your phone before you count on the clamp. If your device falls outside 25-48 mm wide, the clamp is dead weight in the box and you are really buying the adapter.

Run the rotate test on the laser anyway, since a bundled accessory is not a guarantee of internal collimation.

Where it falls short

The clamp will not fit larger modern phones, which limits the second half of the bundle’s value for a lot of buyers.

Forty reviews is thin. For a tool you will trust to set up your optics, the 3059-review alternative gives you far more evidence that the unit works as described.

7. Tydeux Cheshire Collimation Eyepiece – The Budget Route Done Properly

There are 22 reviews on this one at 4.5 stars, with 70 percent five-star ratings. Small sample, but unusually enthusiastic, and several users report it matches a laser collimator at roughly half the price.

The two-year manufacturer warranty stands out. It is longer than anything else in this roundup, and on a tool made of glass and aluminum that covers the failure mode that actually occurs.

It suits Newtonian, Dobsonian and SCT use, fits 1.25 inch focusers with the diagonal removed, and has a 32 mm fully coated objective with a 45 degree plate for visual accuracy.

It is the pick I would suggest for a beginner with an 8-inch Dobsonian who wants to learn collimation properly before spending more. The skill transfers to every tool you buy later.

What to check before you trust it

Confirm the crosshair sits centered over the pinhole in daylight. A 32 mm objective gives a decent-sized view, so the alignment pattern is easier to read than on a small-barrel unit.

Sit at the eyepiece before you start. If you can see the rings clearly without straining, the short barrel is fine for you.

Where it falls short

The short barrel variant gives limited eye relief, and that is the recurring complaint. Several buyers recommend the long version instead, which is the single most useful upgrade note in the reviews.

Twenty-two reviews is a thin base, so you are buying on warranty rather than on volume of owner reports. Check the pinhole centering carefully on arrival.

8. Alstar Collimating Cheshire Eyepiece – Budget Build Quality That Varies

This one sits at 4.0 stars across 17 reviews, the lowest rating and smallest sample in the roundup. The rating distribution is also more spread out, with 11 percent one-star ratings, which points at assembly consistency rather than optical design.

Its legitimate audience is home-built telescopes. For a homemade reflector you assembled yourself, an inexpensive Cheshire that puts the ring pattern in front of you is genuinely useful for setting up the primary cell and secondary.

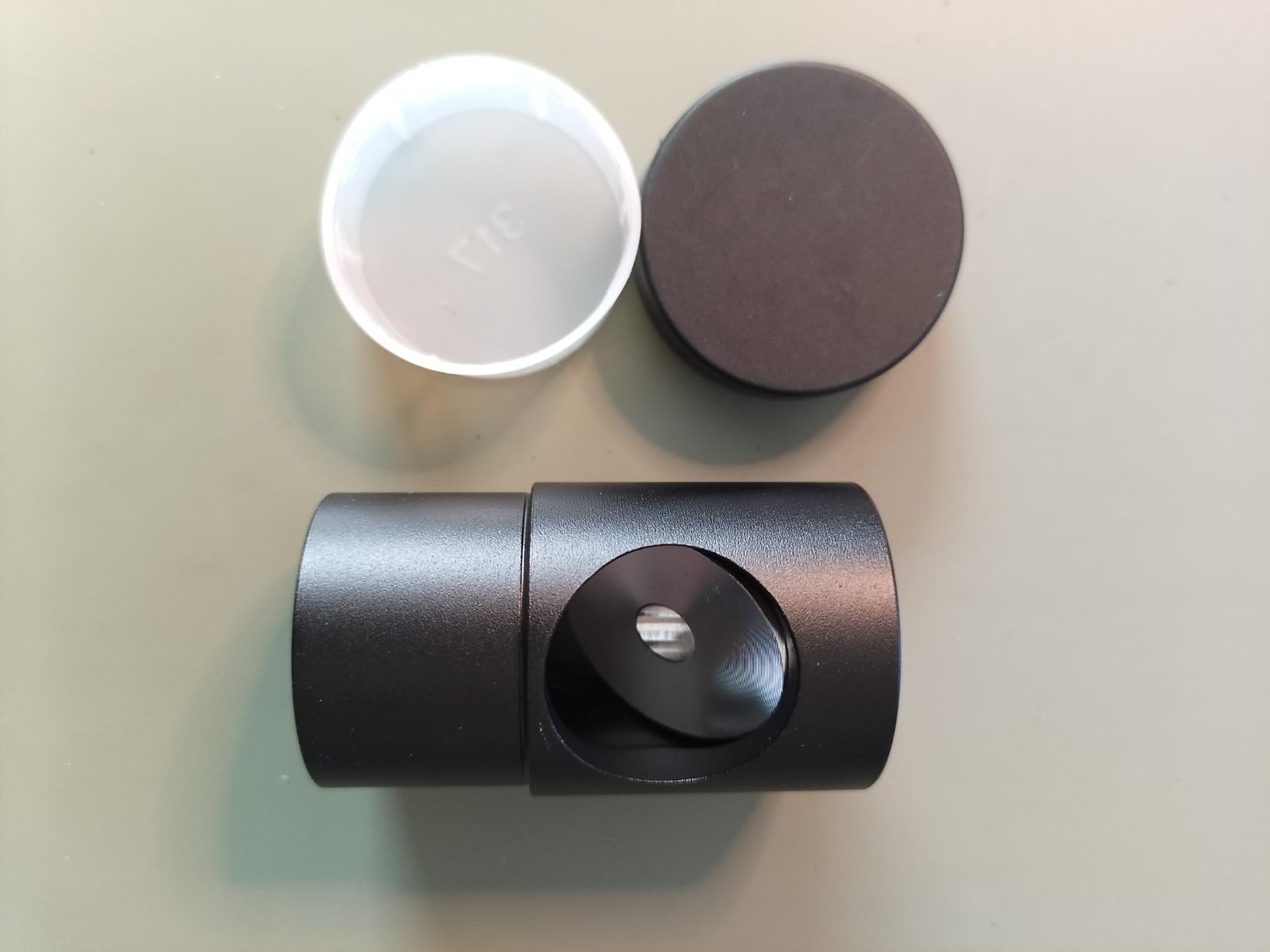

The design is conventional: aluminum alloy body, 45 degree plate for visual alignment, and a crosshair at the bottom. It is a 6.3 centimeter short version weighing 1.58 ounces, and it runs without laser or batteries.

Owners who received a good unit tend to like it. The problem is that the same review stream contains a report of a unit with visibly misaligned crosshairs and a twisted metal insert.

What to check before you trust it

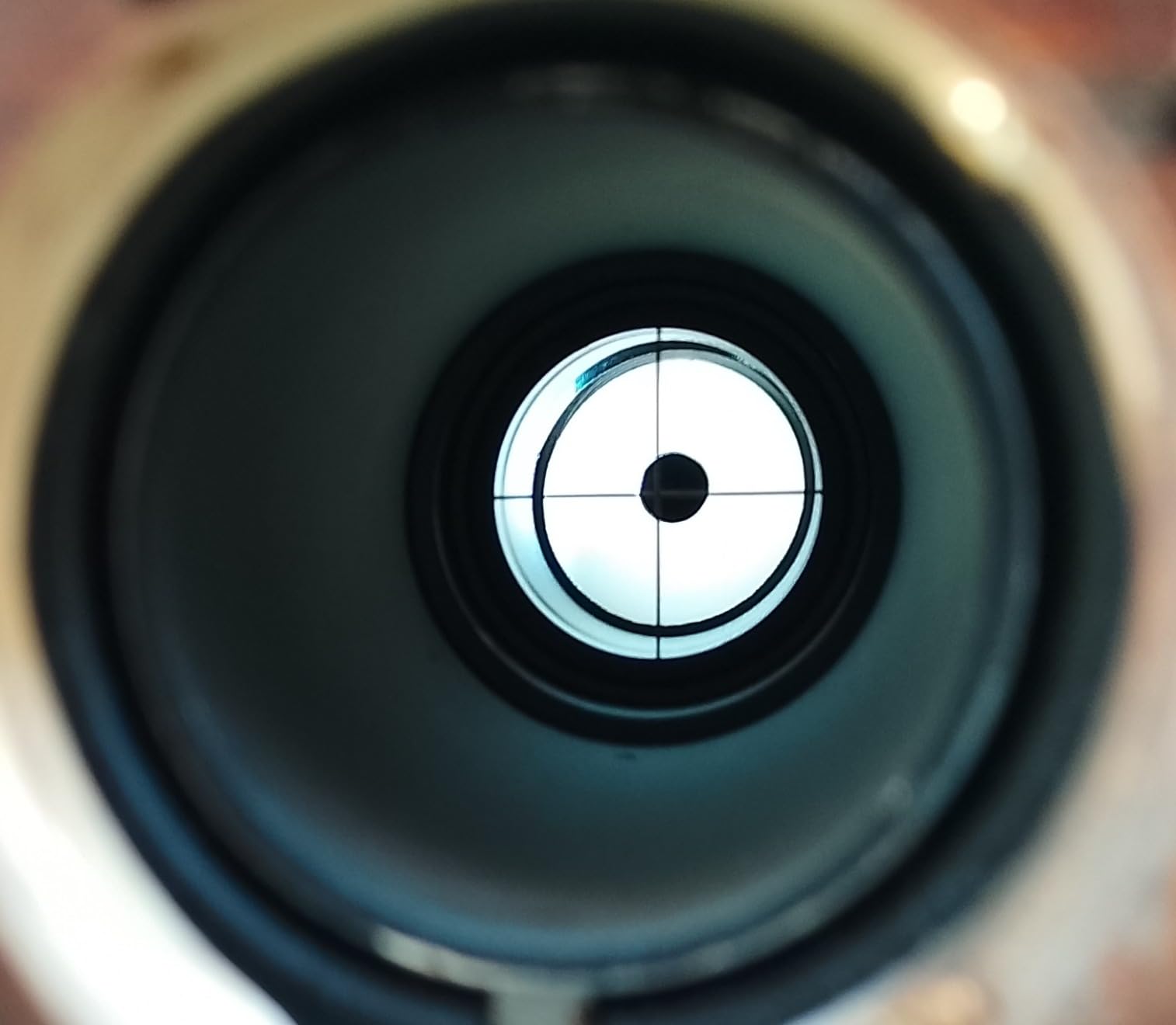

Inspect it on arrival. Check that the crosshair sits centered over the peephole and that the angled plate is not twisted in its housing. Those are the two failures reported by owners.

Verify the alignment reads the same way twice in a row. If the rings jump position between looks, the unit is not precise enough for fine adjustment.

Where it falls short

Quality control is inconsistent, and there is no way to know which bucket your unit landed in before you open the box.

The short barrel gives poor eye relief and hard-to-see crosshairs, which is the same complaint as the other short Cheshires here. With only 17 reviews there is little owner evidence to offset that.

How to Choose a Collimator for Your Newtonian

Match the tool to your focal ratio first, because that single number decides most of the purchase. Here is the mapping we use.

f/3 to f/4 fast astrographs: you need magnification behind the reference. A Barlowed laser or an autocollimator is the right tier. A plain Cheshire works but you will spend a long time chasing residual error. For imaging these, add an electronic collimator if you want the last fraction of a degree.

f/5 mid-focal-ratio Dobsonians and Newtonians: a diode laser is the sweet spot. Fast enough to get you aligned in minutes, accurate enough that off-axis coma is no longer the limiting factor.

f/6 to f/8 slower Newtonians: a sight tube and Cheshire combo is genuinely enough. The narrow cone is forgiving, and the Cheshire will not drift. This is also the tier where the lowest prices in this roundup make sense.

Portable Dobsonians that move in the car: favor a passive tool. Transport knocks laser collimation out of spec more often than people expect, and a Cheshire always reads the same. Budget for re-collimating after every trip regardless of which tool you choose.

Drawtube fit is the second decision, and it is where returns happen. Anything that fits 1.25 inch focusers is fine in most scopes, but check whether a 2 inch adapter is included rather than assuming. The SVBONY laser and the SVBONY bundle both include one; the 1.25 inch laser units do not.

Center spot installation comes before any tool. If your primary has no spot, the cheapest fix is a self-adhesive black doughnut or a spot kit with an alignment jig. Every tool in this guide is useless without it.

Then run the rotate test on any laser you buy. Put it in, turn it slowly, and watch the dot on the center spot. A dot that circles means the beam is not parallel to the barrel axis, and you need to fix the tool before you fix the mirrors. Cheap units ship out of spec often enough that this check is worth two minutes.

Never point a collimator laser at the sky or at another person’s eye, and treat a stray beam as a real eye hazard. Collimate indoors, with the primary in place, before you take the scope outside.

Cheshire vs Laser vs Barlowed Laser vs Autocollimator: Which Method Wins?

The short answer: a laser wins on speed for f/5 and faster, a Cheshire wins on reliability for f/6 and slower, a Barlowed laser wins when the focuser has play, and an autocollimator wins only when you need the last fraction of a millimeter.

Cheshire: no calibration to lose, works in daylight, and is the only reliable option for Bird-Jones reflectors. Bad at judging tiny axial error on a fast scope because the ring pattern does not magnify the residual.

Plain diode laser: fastest to use and easy to read on a large primary. Bad when the focuser has axial play, because the tool then measures the focuser, not the telescope. Bad at off-axis coma entirely.

Barlowed laser: the same beam with built-in magnification, so it is largely immune to focuser axial error. This is the key differentiator for fast Newtonians and it is why it outperforms a plain laser in almost every head-to-head.

Autocollimator: magnifies the residual reflection so small errors are visible. Bad on anything slower than about f/6, where you are chasing error smaller than the eye can usefully judge, and it costs the most of the passive methods.

Electronic collimator: reads the return with a camera and shows the error numerically. It is the only method that removes observer judgement entirely, and it is the tier where cost stops correlating with visible improvement for most amateur scopes.

One practical note from experienced users: pair a center-spot reflecting collimator with a laser rather than choosing only one. The laser does the fast coarse work and the Cheshire confirms it, which removes the most common failure mode of trusting a single tool.

Why Your Collimator Says Aligned but Stars Still Look Bad

If the tool reports perfect alignment and the view is still poor, the problem is almost always something the tool cannot see.

Bloated stars on axis: likely axial error the tool could not detect, or a laser that was never internally collimated. Rotate-test the laser first, then re-check the primary with a Cheshire.

Triangular or egg-shaped stars: almost always collimation or pinched mirror edges. Check for pinch from over-tightened mirror clips before you touch the collimation screws, because a pinched primary cannot be collimated into a round star.

Coma at the edge but a clean center: off-axis error, or a secondary that is not rotated properly. Check secondary rotation and the offset rule before adjusting anything else.

Sharp on one night, soft the next: tube currents. Let the scope reach ambient temperature for an hour before collimating or judging it, and do not tighten clips hard against a cooling mirror.

Rings that will not stay concentric: focuser play. A Cheshire that wiggles in the drawtube gives you a different reading every time. Shim the fit or clamp the eyepiece, and re-check.

Everything reads aligned but stars are distorted: consider astigmatism in the eyepiece, not the telescope. Swap eyepieces before you dismantle anything.

Finally, verify on a real star rather than trusting the tool alone. A first-magnitude star in focus should show clean diffraction rings, and defocused it should show symmetric rings. That five-minute star test is the only confirmation that matters.

Frequently Asked Questions

Which Collimator Should You Buy?

For most people reading this, the answer is the SVBONY laser collimator as our editor’s choice. It handles 1.25 inch and 2 inch focusers, ships with the adapter, has seven brightness levels and the largest owner base in the category at 3059 reviews.

Match it to your segment though. Slow f/6 to f/8 scopes and anything that lives in a car should use the Celestron or SVBONY Cheshire instead, because a passive tool never needs re-collimating after a bump. Fast f/4 astrographs need more magnification than a plain laser gives.

Whichever you pick, install a proper center spot first and run the rotate test before you touch the collimation screws. That two-minute habit prevents most of the frustration beginners hit with their first telescope collimator.
